Galvanized Drop Forged Turnbuckles Jaw & Jaw - 1-1/4 x 12
Galvanized Drop Forged Turnbuckles Jaw & Jaw - 1-1/4 x 12
SKU:WIR-acedd0
Durable Hot Dip Galvanized Turnbuckles for heavy-duty applications. Superior strength and corrosion resistance.
Regular price

            $89.99


          Regular price






          Sale price

          $89.99



        Unit price



           per




    Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

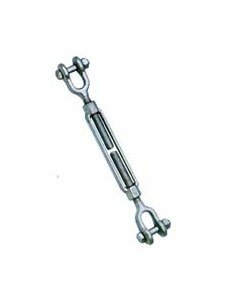

                The Hot Dip Galvanized Drop Forged Turnbuckles Jaw & Jaw are expertly designed for durability and reliability. With Quenched and Tempered end fittings and heat-treated bodies, these turnbuckles offer exceptional strength for straight or in-line pulls. The hot dip galvanized steel construction ensures superior corrosion resistance, making them ideal for outdoor and high-moisture environments. This product is recommended for industrial applications requiring heavy-duty performance.

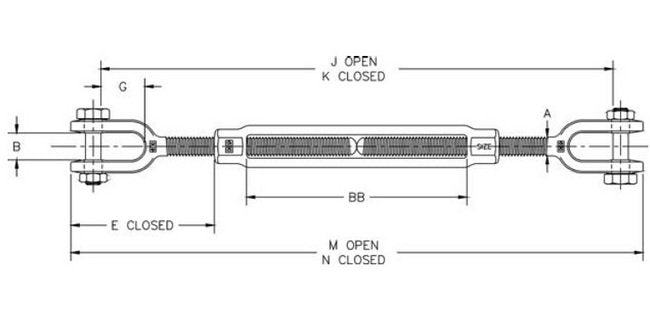

Product Specifications
                  Specifications A

                1.25

                  Specifications B

                1.84

                  Specifications Bb

                12.06

                  Specifications E Closed

                8.09

                  Specifications G

                2.82

                  Specifications J Open

                39.37

                  Specifications K Closed

                27.37

                  Specifications M Open

                43.58

                  Specifications N Closed

                31.58

                  Specifications Pin Diam

                1.13 "

                  Specifications Thread Dia Take Up In

                1-1/4 x 12

                  Specifications Weight

                21.9

                  Specifications Wll Lbs

                15200
