Galvanized Drop Forged Turnbuckles Jaw & Jaw - 1" x 24"
Galvanized Drop Forged Turnbuckles Jaw & Jaw - 1" x 24"
SKU:WIR-22c3c6
High-strength Galvanized Turnbuckles for heavy-duty wire rope applications. WLL 10,000lbs, UNC threads, corrosion-resistant.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles Jaw & Jaw - 1" x 24"
$45.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles Jaw & Jaw - 1" x 24"
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

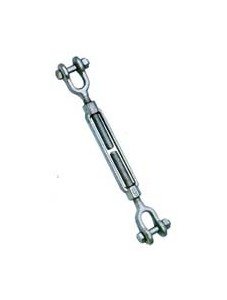

The Galvanized Drop Forged Turnbuckles Jaw & Jaw are expertly crafted with Quenched and Tempered end fittings and heat-treated bodies. Constructed from durable hot dip galvanized steel, these turnbuckles are designed for straight or in-line pull applications. With a Working Load Limit (WLL) of 10,000 lbs, they provide reliable strength and performance. UNC threads ensure secure fastening. Ideal for heavy-duty wire rope applications, these turnbuckles offer exceptional durability, safety, and corrosion resistance.
Ready to Grow Without Cash Flow Constraints?

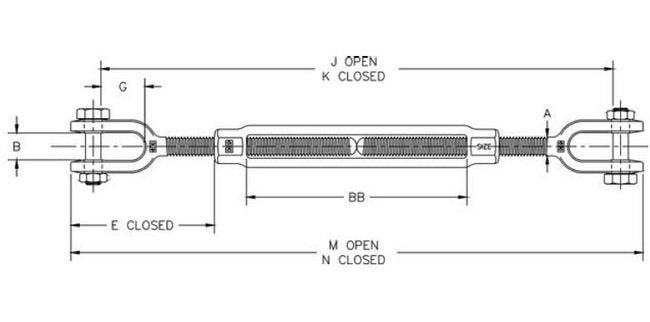

Product Specifications
Specifications A
1
Specifications B
1.34
Specifications Bb
24.84
Specifications E Closed
6.06
Specifications G
2.05
Specifications J Open
60.42
Specifications K Closed
36.42
Specifications M Open
63.78
Specifications N Closed
39.78
Specifications Pin Diam
.88 "
Specifications Thread Dia Take Up In
1 x 24
Specifications Weight
21
Specifications Wll Lbs
10000
