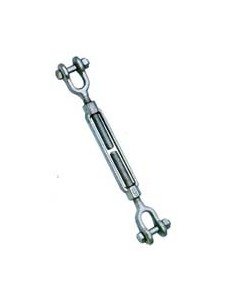

Galvanized Drop Forged Turnbuckles Jaw & Jaw - Hot Dip Galvanized Steel

Name: Galvanized Drop Forged Turnbuckles Jaw & Jaw - Hot Dip Galvanized Steel
Brand: Lexco Cable Manufacturing
SKU: WIR-3a0e77
Price: 59.99 USD
Availability: OutOfStock

SKU:WIR-3a0e77

High-quality Hot Dip Galvanized Turnbuckles for heavy-duty applications. WLL 10,000 lbs. Perfect for straight or in-line pulls.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our Hot Dip Galvanized Drop Forged Turnbuckles Jaw & Jaw are expertly crafted for durability and reliability. With quenched, tempered end fittings and normalized heat-treated bodies, these turnbuckles are designed for optimal performance in straight or in-line pulls. The UNC threads ensure secure fastening, meeting the highest standards of strength and safety. Built to last, these turnbuckles offer a Working Load Limit (WLL) of 10,000 lbs, making them ideal for heavy-duty applications. Trust in our galvanized steel turnbuckles for superior quality and performance.

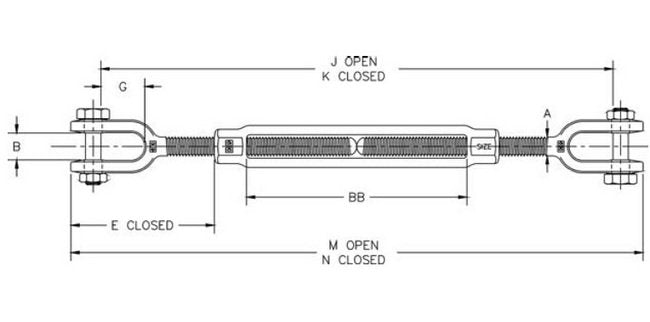

Product Specifications

Specifications A

Specifications B

1.34

Specifications Bb

12.18

Specifications E Closed

6.09

Specifications G

2.05

Specifications J Open

35.82

Specifications K Closed

23.82

Specifications M Open

39.18

Specifications N Closed

27.18

Specifications Pin Diam

.88 "

Specifications Thread Dia Take Up In

1 x 12

Specifications Weight

13.8

Specifications Wll Lbs

10000
