Galvanized Drop Forged Turnbuckles Jaw & Jaw - Thread Dia 2 x 24
Galvanized Drop Forged Turnbuckles Jaw & Jaw - Thread Dia 2 x 24
SKU:WIR-6ace4e
Premium Hot Dip Galvanized Turnbuckles Jaw & Jaw - Ideal for heavy-duty applications. UNC threads, WLL 37000 lbs.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Galvanized Drop Forged Turnbuckles Jaw & Jaw - Thread Dia 2 x 24
$129.99
Quantity: 1
Claim Your Seller Account
Galvanized Drop Forged Turnbuckles Jaw & Jaw - Thread Dia 2 x 24
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

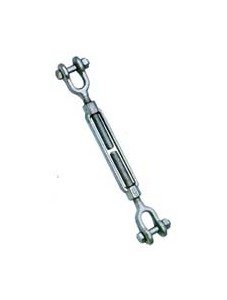

Our Hot Dip Galvanized Drop Forged Turnbuckles Jaw & Jaw are meticulously crafted with end fittings that are Quenched and Tempered, while the bodies are heat treated for exceptional durability. Designed for straight or in-line pull applications, these turnbuckles are threaded with UNC threads and made of high-quality hot dip galvanized steel for superior corrosion resistance. With a Working Load Limit of 37,000 lbs and precise dimensions meeting stringent standards, these turnbuckles ensure reliable performance in demanding environments.

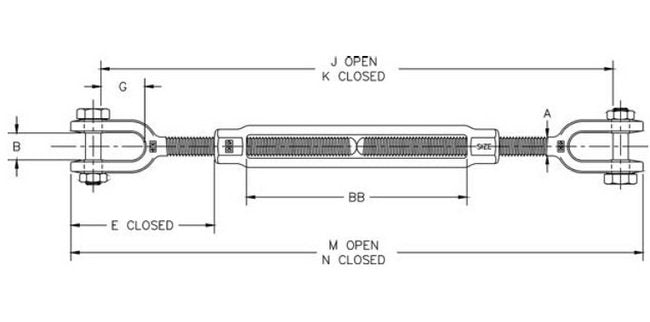

Product Specifications
Specifications A
2
Specifications B
2.62
Specifications Bb
24.48
Specifications E Closed
11.8
Specifications G
3.74
Specifications J Open
69.64
Specifications K Closed
45.64
Specifications M Open
76.72
Specifications N Closed
52.72
Specifications Pin Diam
2 "
Specifications Thread Dia Take Up In
2 x 24
Specifications Weight
96.3
Specifications Wll Lbs
37000
