Galvanized Eye & Eye Turnbuckle, Federal Spec FF-T-791b

Name: Galvanized Eye & Eye Turnbuckle, Federal Spec FF-T-791b
Brand: Lexco Cable Manufacturing
SKU: WIR-bce345
Price: 129.99 USD
Availability: OutOfStock

SKU:WIR-bce345

Meet Federal Spec FF-T-791b with our Galvanized Eye & Eye Turnbuckle. Corrosion-resistant, durable, and high load capacity for wire rope hardware needs.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

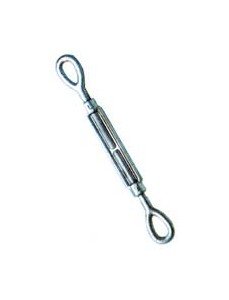

The Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye is designed to meet the stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 4 standards, ensuring durability and reliability in various applications. With hot dip galvanization for corrosion resistance, quenched and tempered end fittings, and normalized bodies, this turnbuckle offers a proof load of 2.5 times the working load limit and an ultimate load of 5 times the working load limit. The precise dimensions and heavy-duty construction make it ideal for demanding wire rope hardware applications.

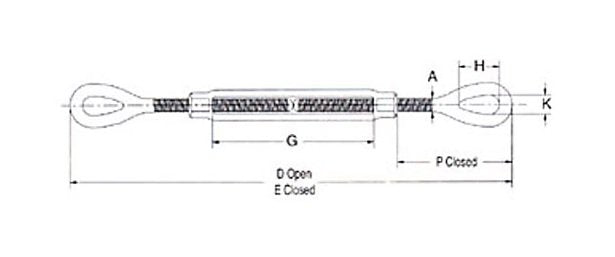

Product Specifications

Specifications A

1.25

Specifications D Open

42.56

Specifications E Closed

30.56

Specifications G

Specifications H

3.56

Specifications K

1.81

Specifications P Closed

7.72

Specifications Thread Dia Take Up In

1-1/4 x 12

Specifications Weight

Specifications Wll Lbs

15200

Galvanized Eye & Eye Turnbuckle, Federal Spec FF-T-791b
