Galvanized Eye & Eye Turnbuckles, Hot Dip Drop Forged 1/2 x 6

Name: Galvanized Eye & Eye Turnbuckles, Hot Dip Drop Forged 1/2 x 6
Brand: Lexco Cable Manufacturing
SKU: WIR-3c9c1a
Price: 39.99 USD
Availability: OutOfStock

SKU:WIR-3c9c1a

High-quality Galvanized Eye & Eye Turnbuckles meeting Federal Specification standards. Durable and reliable. WLL: 2200 lbs.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

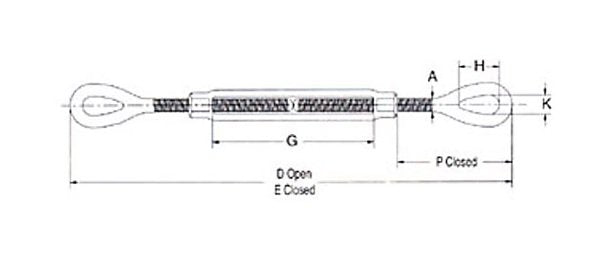

The Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye meet strict Federal Specification FF-T-791b, Type 1, Form 1 - Class 4 standards. With quenched and tempered end fittings, normalized bodies, and a 2.5x proof load, these turnbuckles ensure durability and reliability. Ideal for wire rope applications, these turnbuckles have a working load limit of 2200 lbs and ultimate load 5 times the working load limit. Dimensions: A – 0.5, D Open – 19.96, E Closed – 13.96, G – 6, H – 1.44, K – 0.72, P Closed – 3.23.

Product Specifications

Specifications A

0.5

Specifications D Open

19.96

Specifications E Closed

13.96

Specifications G

Specifications H

1.44

Specifications K

0.72

Specifications P Closed

3.23

Specifications Thread Dia Take Up In

1/2 x 6

Specifications Weight

1.6

Specifications Wll Lbs

2200

Galvanized Eye & Eye Turnbuckles, Hot Dip Drop Forged 1/2 x 6
