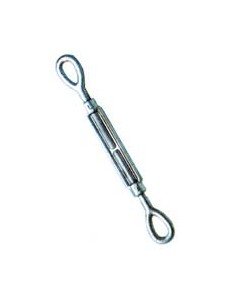

Galvanized Forged Turnbuckle Eye & Eye (1/2 x 12)
Galvanized Forged Turnbuckle Eye & Eye (1/2 x 12)
SKU:WIR-ea67a2
High-strength Galvanized Forged Turnbuckle Eye & Eye for secure wire rope connections, built to stringent Federal Specification FF-T-791b standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Galvanized Forged Turnbuckle Eye & Eye (1/2 x 12)
$39.99
Quantity: 1
Claim Your Seller Account
Galvanized Forged Turnbuckle Eye & Eye (1/2 x 12)
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye is designed to meet stringent government procurement standards, conforming to Federal Specification FF-T-791b, Type 1, Form 1 - Class 4. Featuring quenched and tempered end fittings, normalized bodies, and a 2.5 times proof load capacity, this turnbuckle ensures reliable performance in demanding applications. With a working load limit of 2200 lbs and an ultimate load capacity of 5 times the working load limit, this product offers superior strength and durability. The precise dimensions make it ideal for a wide range of wire rope hardware applications.

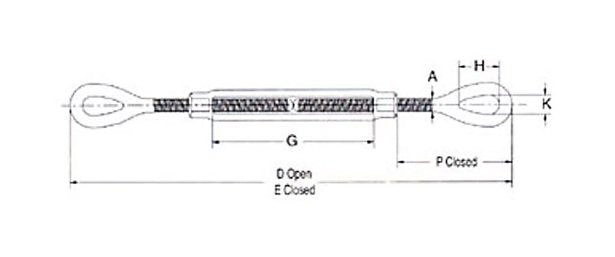

Product Specifications
Specifications A
0.5
Specifications D Open
31.96
Specifications E Closed
19.96
Specifications G
12
Specifications H
1.44
Specifications K
0.72
Specifications P Closed
3.23
Specifications Thread Dia Take Up In
1/2 x 12
Specifications Weight
2.06
Specifications Wll Lbs
2200
