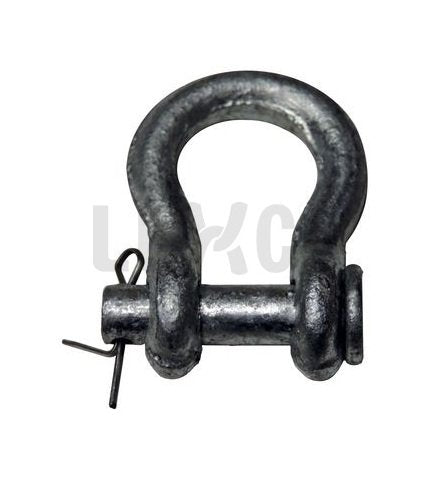

Galvanized Round Pin Anchor Shackle

Name: Galvanized Round Pin Anchor Shackle
Brand: Lexco Cable Manufacturing
SKU: WIR-aa3fca
Price: 129.99 USD
Availability: OutOfStock

SKU:WIR-aa3fca

High-quality Galvanized Round Pin Anchor Shackle for secure and efficient lifting and towing operations. Made in the USA.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Galvanized Round Pin Anchor Shackle is a durable and reliable wire rope hardware essential, forged by Chicago Hardware & Fixture Company in the USA. Designed for lifting and towing applications, this shackle features a self-colored or hot galvanized finish that ensures rust prevention. Each shackle is heat treated, marked with size and working load limit for easy identification, and meets the rigorous performance requirements of Federal Specifications RR-C-271D Type IVA. With a high safety factor of 6 to 1, this shackle guarantees strength and stability, making it ideal for both regular and safety applications.

Product Specifications

Specifications Length C

4-1/4"

Specifications Length Tolerance

1/4"

Specifications Od Eyes D

2-5/8"

Specifications Pin Or Bolt Diameter E

1-1/4"

Specifications Size Dia

1-1/8"

Specifications Width Bow B

2-15/16"

Specifications Width Eyes A

1-13/16"

Specifications Width Tolerance

1/16"

Specifications Wll Tons

9-1/2

Specifications Wt Per 100 Pcs Lbs

765

CAGE

0T9L4

NAICS

332999

PSC

5340

Galvanized Round Pin Anchor Shackle
