Galvanized Round Pin Chain Shackles

Galvanized Round Pin Chain Shackles

SKU:WIR-abdc00

High-quality Galvanized Round Pin Chain Shackles - Federal Spec RR-C-271D Compliant, Ultimate Load 6x WLL, Ideal for Lifting & Towing

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Galvanized Round Pin Chain Shackles

Galvanized Round Pin Chain Shackles

$39.99

Quantity: 1

Claim Your Seller Account

Galvanized Round Pin Chain Shackles

Galvanized Round Pin Chain Shackles

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Galvanized Round Pin Chain Shackles are designed to meet the highest standards, conforming to Federal Specification RR-C-271D, Type IVB, Grade A, Class 1. With an ultimate load 6 times the working load limit, these shackles are quenched, tempered, and feature an alloy pin for enhanced durability. The proof load is 2.2 times the working load limit, ensuring reliable performance in lifting or towing applications. These shackles are a dependable choice for wire rope loops, providing a safe and secure lifting solution.

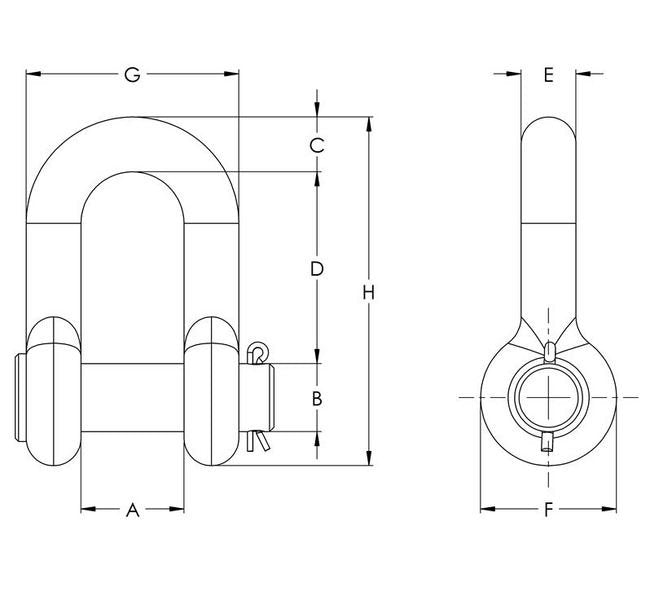

Product Specifications

Specifications A In
1.25
Specifications B In
0.88
Specifications C In
0.81
Specifications D In
2.38
Specifications E In
0.75
Specifications F In
1.81
Specifications G In
2.75
Specifications H In
4.53
Specifications M In
3.97
Specifications Nominal Size In
3/4
Specifications Weight Lbs
2
Specifications Wll Tons
4.75
CAGE
0T9L4
NAICS
332999
PSC
5340
