Galvanized Round Pin Chain Shackles

Galvanized Round Pin Chain Shackles

SKU:WIR-f3cd3e

High-strength Galvanized Round Pin Chain Shackles for lifting and towing applications. Meets Federal Spec RR-C-271D Type IVB. 17-ton WLL.

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

Galvanized Round Pin Chain Shackles

Galvanized Round Pin Chain Shackles

$79.99

Quantity: 1

Claim Your Seller Account

Galvanized Round Pin Chain Shackles

Galvanized Round Pin Chain Shackles

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

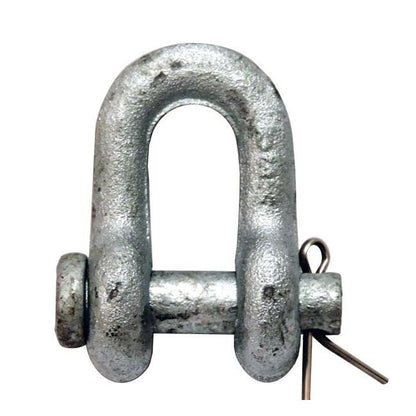

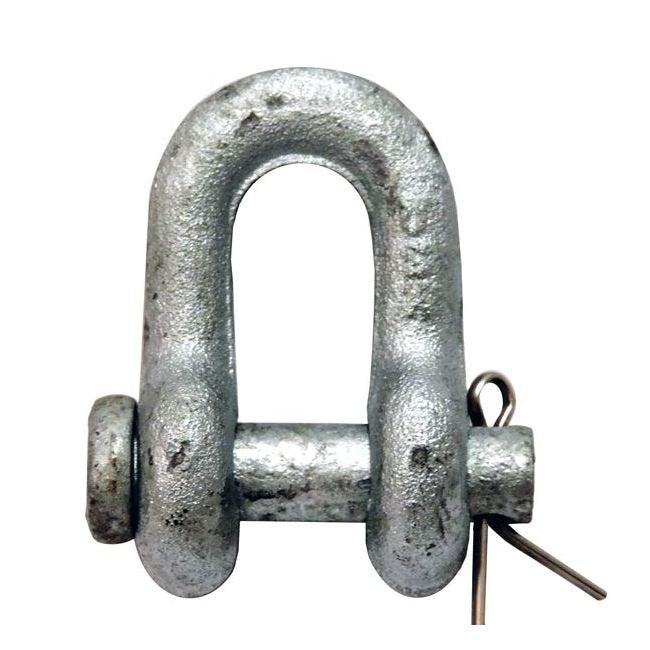

The Galvanized Round Pin Chain Shackles are precision-engineered to meet the highest standards, including Federal Specification RR-C-271D, Type IVB. Designed for heavy-duty lifting and towing applications, these shackles have a superior 17-ton working load limit. Crafted with quenched and tempered alloy steel and a drop-forged construction, these shackles provide exceptional strength and durability. With a 6x ultimate load rating, these shackles offer unmatched reliability and safety. Ideal for wire rope loops, these shackles are a dependable choice for both consumer and institutional buyers.

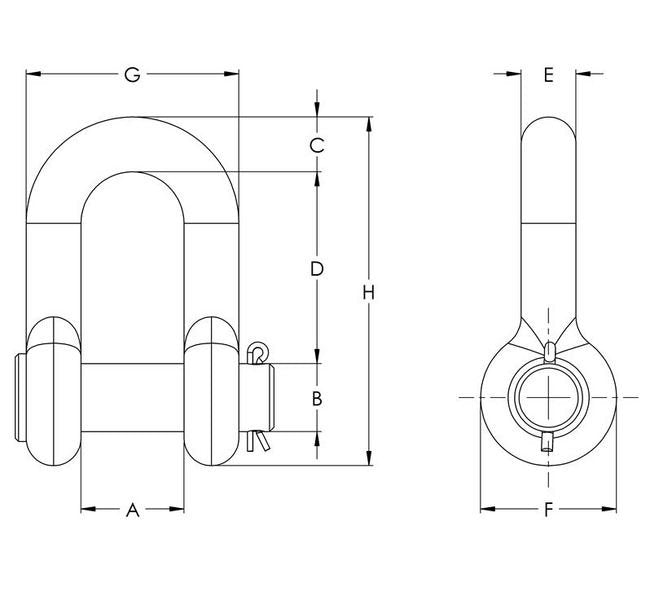

Product Specifications

Specifications A In
2.38
Specifications B In
1.63
Specifications C In
1.62
Specifications D In
4.81
Specifications E In
1.5
Specifications F In
3.62
Specifications G In
5.38
Specifications H In
9.06
Specifications M In
7.35
Specifications Nominal Size In
1 1/2
Specifications Weight Lbs
16.15
Specifications Wll Tons
17
CAGE
0T9L4
NAICS
332999
PSC
5340
