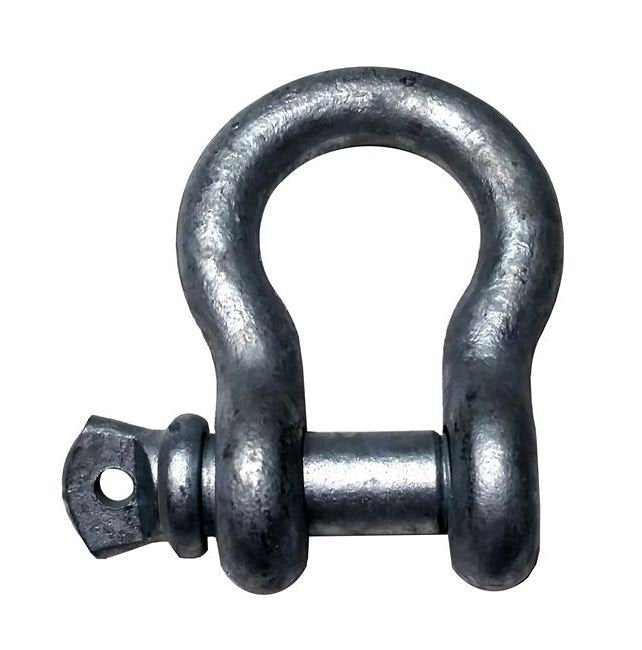

Galvanized Screw Pin Anchor Shackles - 5/8" - 3.25 Ton Capacity
Galvanized Screw Pin Anchor Shackles - 5/8" - 3.25 Ton Capacity
SKU:WIR-8ac246
Heavy-duty 5/8" Galvanized Screw Pin Anchor Shackles with 3.25 Ton Capacity, meeting Federal Specs RR-C-271D.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Galvanized Screw Pin Anchor Shackles - 5/8" - 3.25 Ton Capacity
$19.99
Quantity: 1
Claim Your Seller Account
Galvanized Screw Pin Anchor Shackles - 5/8" - 3.25 Ton Capacity
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Galvanized Screw Pin Anchor Shackles are designed to meet the toughest standards, including Federal Specification RR-C-271D, Type IV A, Grade A, Class 2. Made from drop forged steel with a quenched and tempered alloy pin, these shackles offer a 2.2 times working load limit proof load and 6 times ultimate load limit. Ideal for lifting or towing applications, these shackles provide durability and reliability in demanding environments.
Ready to Grow Without Cash Flow Constraints?

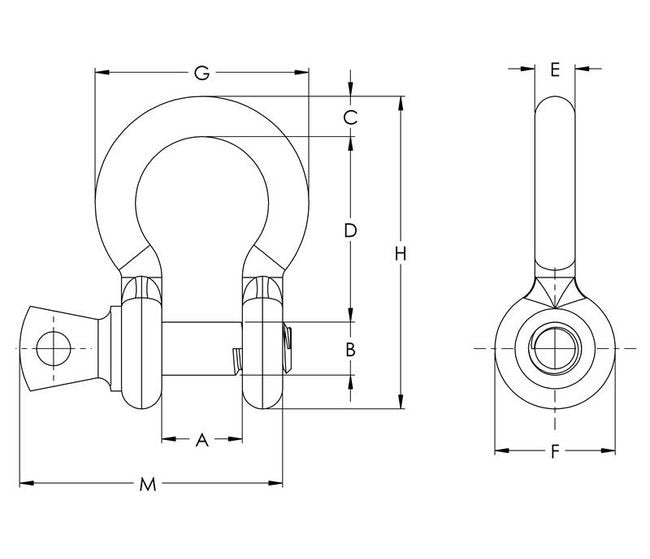

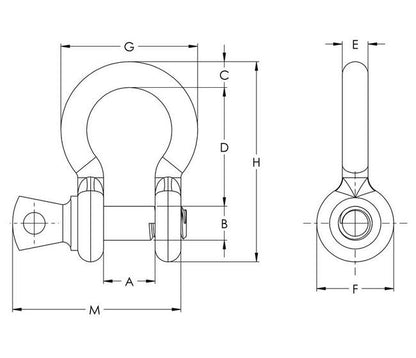

Product Specifications
Specifications A In
1.06
Specifications B In
0.75
Specifications C In
0.62
Specifications D In
2.38
Specifications E In
0.63
Specifications F In
1.5
Specifications G In
2.94
Specifications H In
4.19
Specifications M In
3.34
Specifications Nominal Size In
5/8
Specifications Weight Lbs
1.37
Specifications Wll Tons
3 1/4
CAGE
0T9L4
NAICS
332999
PSC
5340
