Galvanized Steel Bar Expansion Section with Splice
Galvanized Steel Bar Expansion Section with Splice
SKU:CRA-bd38bd
Ensure seamless thermal expansion with the Galvanized Steel Bar Expansion Section. Amperage Rating: 125A, Length: 14' 9", Weight: 5.3lb.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Galvanized Steel Bar Expansion Section with Splice
$129.99
Quantity: 1
Claim Your Seller Account
Galvanized Steel Bar Expansion Section with Splice
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

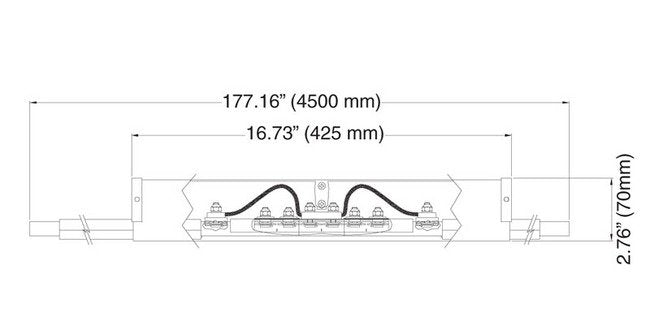

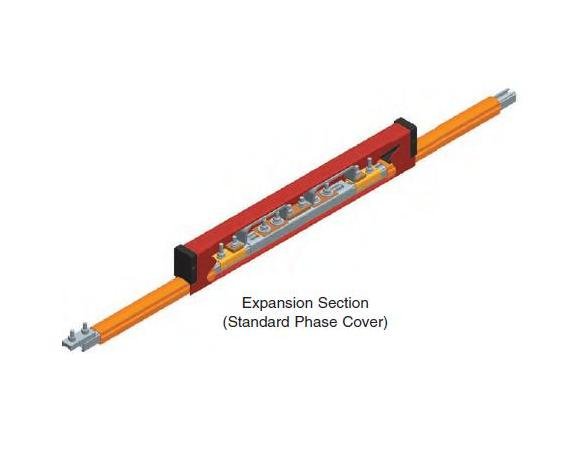

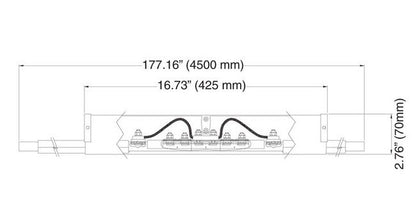

The Galvanized Steel Bar Expansion Section with Splice is essential for structural expansion joints and systems over 492ft to accommodate thermal expansion. With a maximum 2.0" gap, this 14' 9" section replaces a length of conductor bar, ensuring seamless electrical conductivity. Crafted from durable galvanized steel, it boasts an Amperage Rating of 125A, features a Standard Phase Cover for safety (Orange), and weighs just 5.3lb (2.4kg). Ideal for Crane Control & Electrification setups, this Expansion Section guarantees reliability and compliance with stringent industry standards.
Product Specifications
Specifications Amperage Rating
125 A
Specifications Cover Type
Standard Phase Cover (Orange)
Specifications Material
Galvanized Steel
Specifications Weight
5.3 lb | 2.4 kg
