Galvanized Steel Conductor Bars with Integrated Splice
Galvanized Steel Conductor Bars with Integrated Splice
SKU:CRA-9fc660
High-quality Galvanized Steel Conductor Bars with Integrated Splice, ensuring reliable power distribution in crane control & electrification applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Galvanized Steel Conductor Bars with Integrated Splice
$249.99
Quantity: 1
Claim Your Seller Account
Galvanized Steel Conductor Bars with Integrated Splice
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Galvanized Steel Conductor Bars with Integrated Splice offer a durable and efficient solution for crane control & electrification needs. With an amperage rating of 60A, a maximum system voltage of 600V, and a robust galvanized steel construction, these conductor bars ensure reliable power distribution. The PVC cover with a dielectric strength of 180 kv/cm provides enhanced safety. Designed to meet industry standards, including UL listings, these bars are ideal for both consumer and institutional buyers seeking high-performance electrical solutions.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
71.1 ºC | 160 ºF
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
60 A

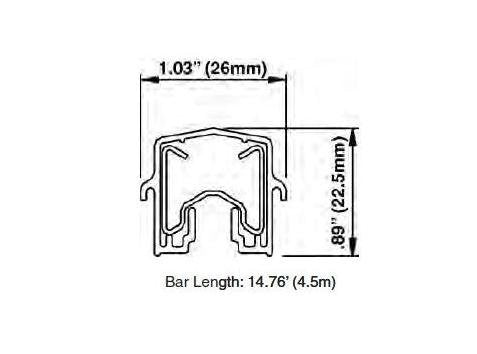

Specifications Bar Length
4.5 m

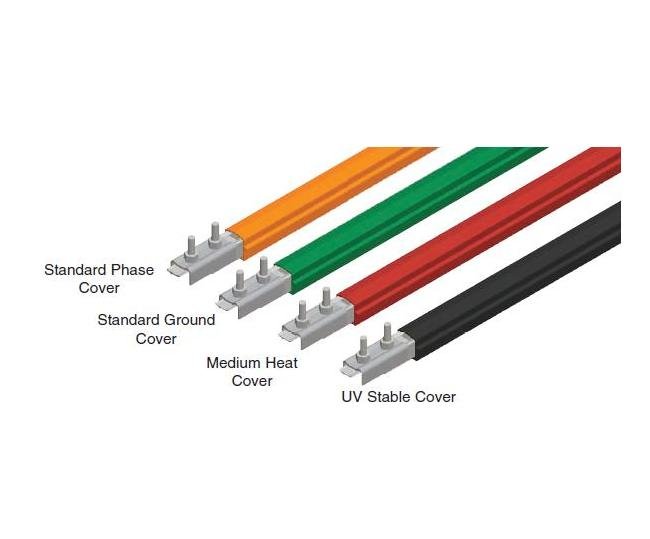

Specifications Cover Type
Standard Phase Cover (Orange)
Specifications Cross Sectional Area
50 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.003604 Ω/m
Specifications Material
Galvanized Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
60 A
Specifications Resistance R For Dc At 20 C
0.003584 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
5.3 lb | 2.4 kg
