Galvanized Steel Conductor Bars with Pre-installed Splice

Name: Galvanized Steel Conductor Bars with Pre-installed Splice
Brand: Clutch Engineering
SKU: CRA-537d4e
Price: 399.99 USD
Availability: OutOfStock

SKU:CRA-537d4e

Enhance crane control with Galvanized Steel Conductor Bars pre-installed with splice, ensuring 125A capacity, PVC phase cover, and easy installation.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your crane control system with our Galvanized Steel Conductor Bars featuring a pre-installed splice. Designed for reliability and safety, these bars support an amperage rating of 125 A, with a cross-sectional area of 93 mm² and a maximum system voltage of 600 V AC or DC. The PVC phase cover ensures protection and durability, meeting stringent industry standards. With precise specifications and sturdy construction, these bars offer seamless electrical conductivity and easy installation for industrial applications.

Product Specifications

Cover Specifications Cover Material

PVC

Cover Specifications Dielectric Strength

180 kv/cm

Cover Specifications Flame Test

Self Extinguishing

Cover Specifications Oxygen Index

54%

Cover Specifications Specific Density

1.5 g/cmÂ³

Cover Specifications Surface Resistivity

1011 Î©

Cover Specifications Vicat Softening Temperature

71.1 ÂºC | 160 ÂºF

Cover Specifications Volume Resistivity

>1015 Î©/cm

Specifications Amperage Rating

125 A

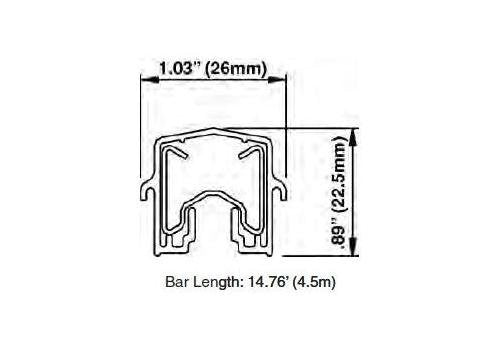

Specifications Bar Length

4.5 m

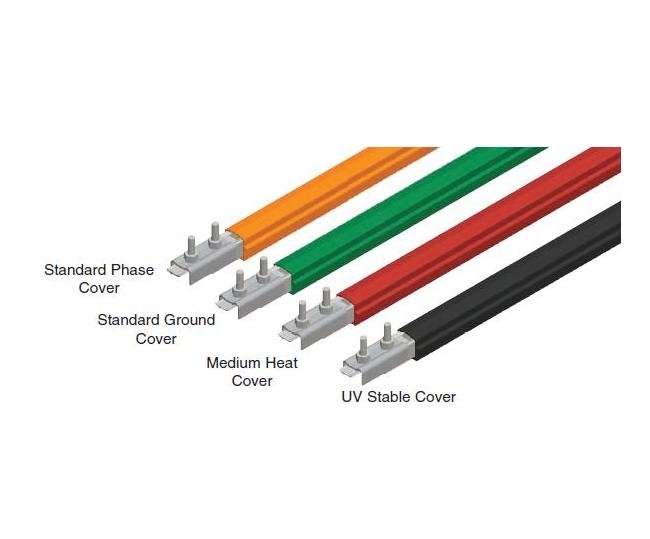

Specifications Cover Type

Standard Phase Cover (Orange)

Specifications Cross Sectional Area

93 mmÂ²

Specifications Expansion Sections

150 m

Specifications Impedance Z For Ac At 20 C

0.001933 Î©/m

Specifications Material

Galvanized Steel

Specifications Maximum Allowable Ambient Temperature

25 ÂºC

Specifications Maximum System Voltage Ac Or Dc Per Ul Listing

600 V

Specifications Minimum Bending Radius

1.5 m

Specifications Minimum Pitch Centers Standard

43 mm

Specifications Nominal Current

125 A

Specifications Resistance R For Dc At 20 C

0.001933 Î©/m

Specifications Support Pitch Lateral

1125 mm

Specifications Support Pitch Standard

1500 mm

Specifications Weight

5.3 lb | 2.4 kg
