Galvanized Steel Conductor Bars with Splice
Galvanized Steel Conductor Bars with Splice
SKU:CRA-47b24b
Upgrade your crane control with Galvanized Steel Conductor Bars with Splice for safe and efficient electrification in industrial settings.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Galvanized Steel Conductor Bars with Splice
$299.99
Quantity: 1
Claim Your Seller Account
Galvanized Steel Conductor Bars with Splice
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your crane control with our Galvanized Steel Conductor Bars with Splice Installed. Designed for high performance, these bars feature a 60A amperage rating, durable galvanized steel construction, and a medium heat cover. With a 600V maximum system voltage and impeccable safety attributes, these bars ensure reliable electrification across your operations. Meeting rigorous industry standards, they offer self-extinguishing properties, high dielectric strength, and compliance with NIST and FAR requirements.
Product Specifications
Cover Specifications Cover Material
Polycarbonate
Cover Specifications Dielectric Strength
240 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
24%
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Surface Resistivity
>1014 Ω
Cover Specifications Vicat Softening Temperature
121.1 ºC | 250 ºF
Cover Specifications Volume Resistivity
>1016 Ω/cm
Specifications Amperage Rating
60 A

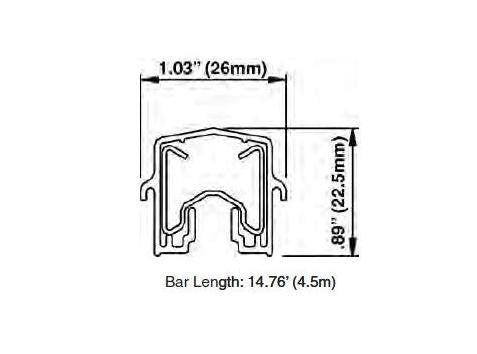

Specifications Bar Length
4.5 m

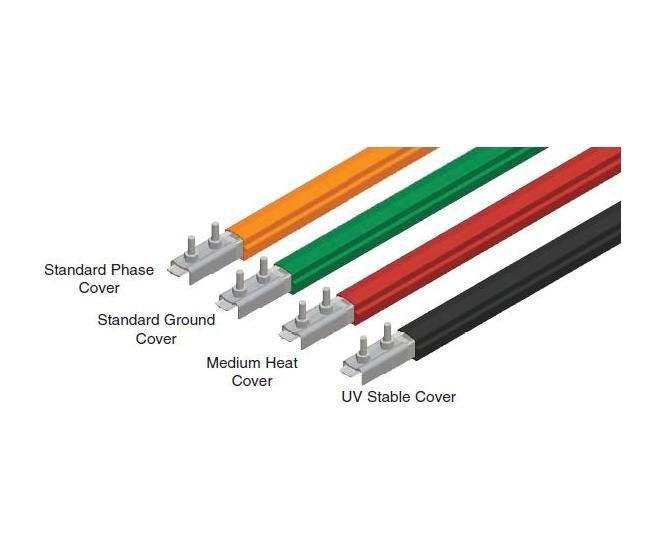

Specifications Cover Type
Medium Heat Cover (Red)
Specifications Cross Sectional Area
50 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.003604 Ω/m
Specifications Material
Galvanized Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
60 A
Specifications Resistance R For Dc At 20 C
0.003584 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
5.3 lb | 2.4 kg
