Galvanized Steel Conductor Bars with Splice
Galvanized Steel Conductor Bars with Splice
SKU:CRA-d206fd
Reliable Galvanized Steel Conductor Bars with Splice for efficient power distribution. Meets industry standards for safety and performance.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Galvanized Steel Conductor Bars with Splice
$199.99
Quantity: 1
Claim Your Seller Account
Galvanized Steel Conductor Bars with Splice
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Galvanized Steel Conductor Bars with Splice Installed are designed for high-performance crane control and electrification. With an Amperage Rating of 125 A and a Maximum System Voltage of 600 V, these bars ensure reliable power distribution. The medium heat cover with polycarbonate material offers durability and safety. Meeting industry-specific certifications and standards such as GSA requirements and FAR compliance, these conductor bars are suitable for government and institutional procurement needs.
Product Specifications
Cover Specifications Cover Material
Polycarbonate
Cover Specifications Dielectric Strength
240 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
24%
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Surface Resistivity
>1014 Ω
Cover Specifications Vicat Softening Temperature
121.1 ºC | 250 ºF
Cover Specifications Volume Resistivity
>1016 Ω/cm
Specifications Amperage Rating
125 A

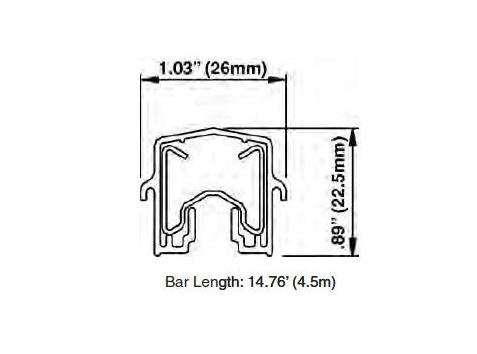

Specifications Bar Length
4.5 m

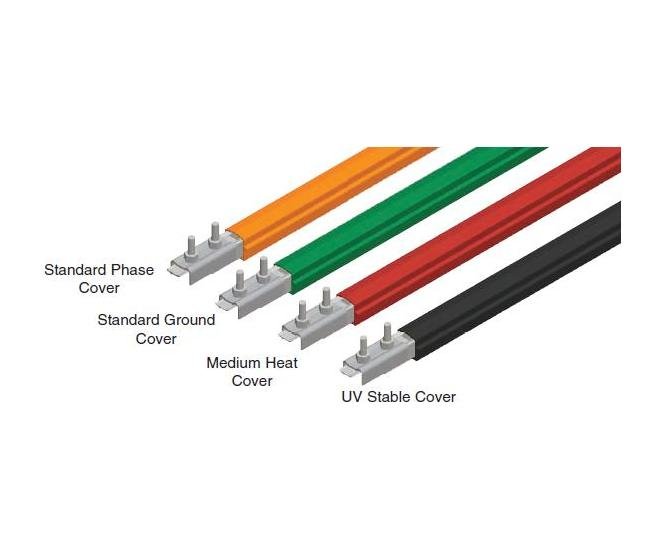

Specifications Cover Type
Medium Heat Cover (Red)
Specifications Cross Sectional Area
93 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.001933 Ω/m
Specifications Material
Galvanized Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
125 A
Specifications Resistance R For Dc At 20 C
0.001933 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
5.3 lb | 2.4 kg
