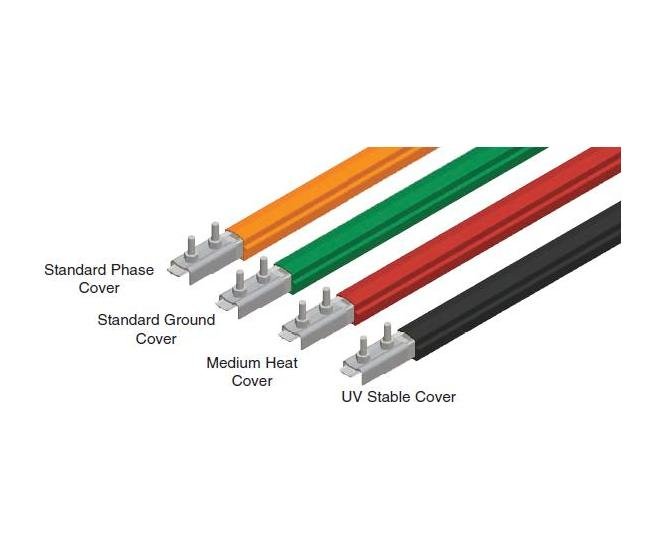

Enhance your crane control system with our Galvanized Steel Conductor Bars. With an amperage rating of 100A, these bars come with a standard phase cover in orange PVC. Designed for reliability, they feature a cross-sectional area of 63 mm² and a maximum system voltage of 600V (AC or DC). With low resistance and impedance, these bars are suitable for safe and efficient power distribution. The durable galvanized steel construction ensures longevity, while the included splice installation provides seamless connectivity for uninterrupted operations.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
71.1 ºC | 160 ºF
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
100 A

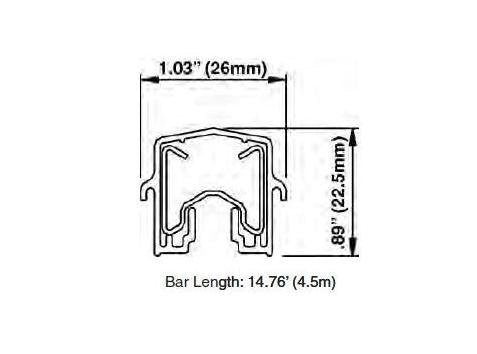

Specifications Bar Length
4.5 m
Specifications Cover Type
Standard Phase Cover (Orange)
Specifications Cross Sectional Area
63 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.002891 Ω/m
Specifications Material
Galvanized Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
100 A
Specifications Resistance R For Dc At 20 C
0.002867 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
5.3 lb | 2.4 kg
