Galvanized Steel Conductor Bars with Splice - 100A, UV Stable Cover, 600V

Name: Galvanized Steel Conductor Bars with Splice - 100A, UV Stable Cover, 600V
Brand: Clutch Engineering
SKU: CRA-726bce
Price: 149.99 USD
Availability: OutOfStock

SKU:CRA-726bce

Enhance power distribution with Galvanized Steel Conductor Bars - 100A, UV Stable Cover, compliance assured.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your Crane Control & Electrification system with our Galvanized Steel Conductor Bars featuring a splice for seamless connectivity. With an Amperage Rating of 100A and a UV Stable Cover, these bars ensure reliable power distribution. The PVC Cover offers high dielectric strength and flame resistance. Compliant with industry standards for maximum system voltage and impedance, these bars deliver efficiency and safety for both consumer and institutional buyers.

Product Specifications

Cover Specifications Cover Material

PVC

Cover Specifications Dielectric Strength

180 kv/cm

Cover Specifications Flame Test

Self Extinguishing

Cover Specifications Oxygen Index

54%

Cover Specifications Specific Density

1.5 g/cmÂ³

Cover Specifications Surface Resistivity

1011 Î©

Cover Specifications Vicat Softening Temperature

71.1 ÂºC | 160 ÂºF

Cover Specifications Volume Resistivity

>1015 Î©/cm

Specifications Amperage Rating

100 A

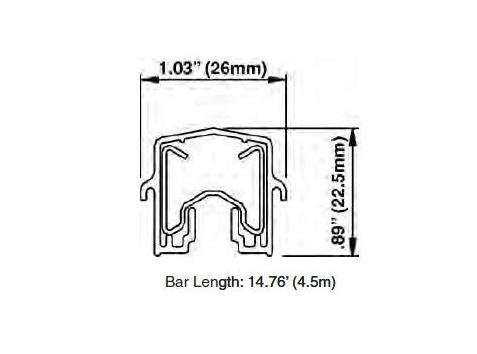

Specifications Bar Length

4.5 m

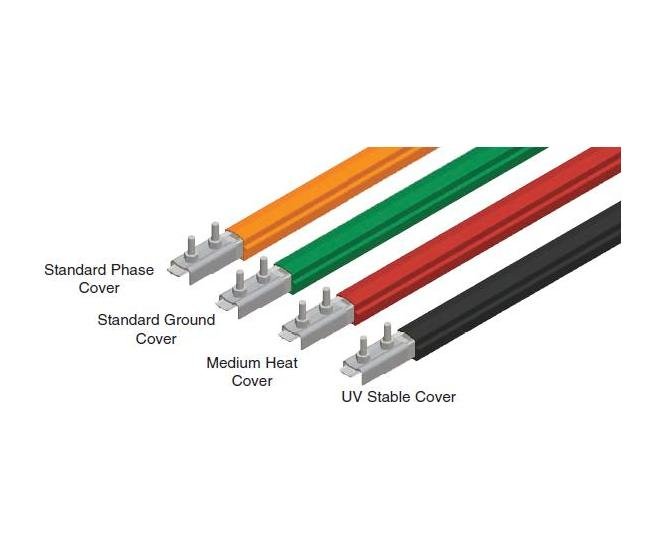

Specifications Cover Type

UV Stable (Black)

Specifications Cross Sectional Area

63 mmÂ²

Specifications Expansion Sections

150 m

Specifications Impedance Z For Ac At 20 C

0.002891 Î©/m

Specifications Material

Galvanized Steel

Specifications Maximum Allowable Ambient Temperature

25 ÂºC

Specifications Maximum System Voltage Ac Or Dc Per Ul Listing

600 V

Specifications Minimum Bending Radius

1.5 m

Specifications Minimum Pitch Centers Standard

43 mm

Specifications Nominal Current

100 A

Specifications Resistance R For Dc At 20 C

0.002867 Î©/m

Specifications Support Pitch Lateral

1125 mm

Specifications Support Pitch Standard

1500 mm

Specifications Weight

5.3 lb | 2.4 kg

Galvanized Steel Conductor Bars with Splice - 100A, UV Stable Cover, 600V
