Galvanized Steel Conductor Bars with Splice Installed
Galvanized Steel Conductor Bars with Splice Installed
SKU:CRA-ad8805
High-performance Galvanized Steel Conductor Bars for safe and reliable power distribution in crane control systems. 125 A, 600 V, PVC cover.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Galvanized Steel Conductor Bars with Splice Installed
$289.99
Quantity: 1
Claim Your Seller Account
Galvanized Steel Conductor Bars with Splice Installed
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Galvanized Steel Conductor Bars with Splice Installed are designed for reliable power distribution in crane control systems. With an Amperage Rating of 125 A and a durable UV Stable PVC Cover, these conductor bars ensure safe and efficient electrical conductivity. The galvanized steel construction with a Cross Sectional Area of 93 mm² provides robust support. Meeting industry standards, including a Maximum System Voltage of 600 V, these bars are ideal for heavy-duty applications, offering a self-extinguishing Flame Test result and compliance with key electrical parameters.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
71.1 ºC | 160 ºF
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
125 A

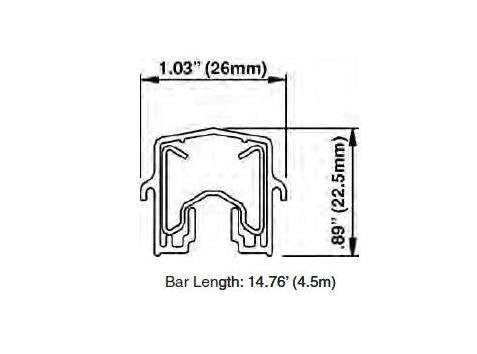

Specifications Bar Length
4.5 m

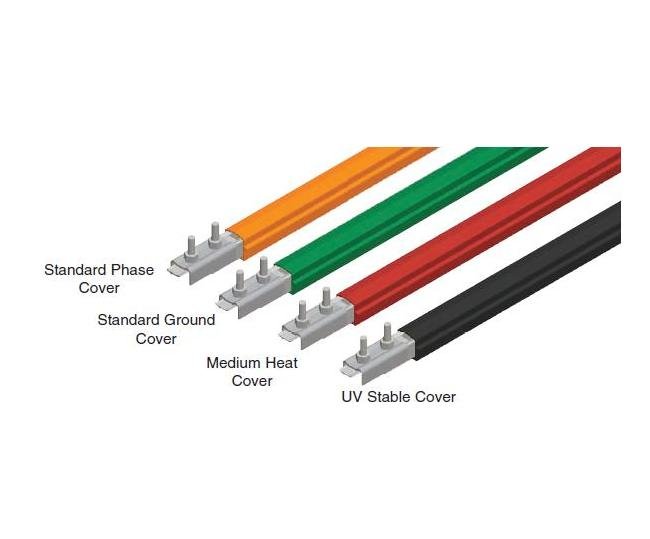

Specifications Cover Type
UV Stable (Black)
Specifications Cross Sectional Area
93 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.001933 Ω/m
Specifications Material
Galvanized Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
125 A
Specifications Resistance R For Dc At 20 C
0.001933 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
5.3 lb | 2.4 kg
