Galvanized Steel Conductor Bars with Splice Installed - Safelec 2 Series
Galvanized Steel Conductor Bars with Splice Installed - Safelec 2 Series
SKU:CRA-551891
High-performance Galvanized Steel Conductor Bars with Splice for efficient power distribution in crane control systems. Safe and durable.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Galvanized Steel Conductor Bars with Splice Installed - Safelec 2 Series
$349.99
Quantity: 1
Claim Your Seller Account
Galvanized Steel Conductor Bars with Splice Installed - Safelec 2 Series
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Galvanized Steel Conductor Bars with Splice Installed from the Safelec 2 series are designed for seamless and reliable power transmission in crane control and electrification systems. With an amperage rating of 60 A and a maximum system voltage of 600 V, these bars ensure efficient energy distribution. The UV stable PVC cover, along with self-extinguishing properties, guarantees safety. Meeting strict specifications for resistance, impedance, and temperature thresholds, these conductor bars are 4.5m long with a minimum bending radius of 1.5m, offering durability and flexibility. Made of high-quality galvanized steel, they are lightweight yet sturdy, making them ideal for diverse industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

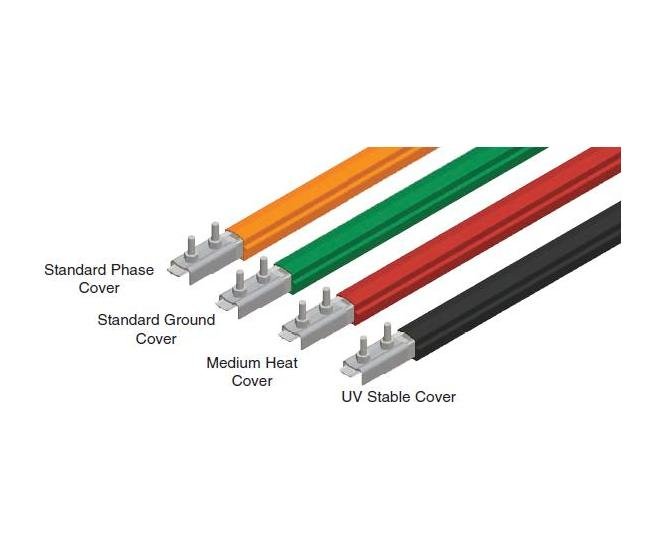

Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
71.1 ºC | 160 ºF
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
60 A

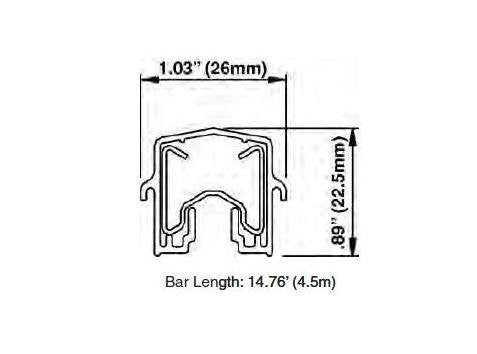

Specifications Bar Length
4.5 m
Specifications Cover Type
UV Stable (Black)
Specifications Cross Sectional Area
50 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.003604 Ω/m
Specifications Material
Galvanized Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
60 A
Specifications Resistance R For Dc At 20 C
0.003584 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
5.3 lb | 2.4 kg
