Galvanized Steel Conductor Bars with Splice - Safelec 2 Series
Galvanized Steel Conductor Bars with Splice - Safelec 2 Series
SKU:CRA-d3855a
Upgrade crane control with Safelec 2 Galvanized Steel Conductor Bars w/ Splice. Reliable 100A rating, heat-resistant cover, and durable build for safe operations.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Galvanized Steel Conductor Bars with Splice - Safelec 2 Series
$249.99
Quantity: 1
Claim Your Seller Account
Galvanized Steel Conductor Bars with Splice - Safelec 2 Series
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your crane control system with our Galvanized Steel Conductor Bars with Splice from the Safelec 2 Series. With an amperage rating of 100A, medium heat cover, and resistance of 0.002867 Ω/m, these bars ensure reliable electrical conductivity. Meeting industry standards with polycarbonate cover material, self-extinguishing properties, and a specific density of 1.15 g/cm³, this product is durable and safe for heavy-duty applications.
Product Specifications
Cover Specifications Cover Material
Polycarbonate
Cover Specifications Dielectric Strength
240 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
24%
Cover Specifications Specific Density
1.15 g/cm³
Cover Specifications Surface Resistivity
>1014 Ω
Cover Specifications Vicat Softening Temperature
121.1 ºC | 250 ºF
Cover Specifications Volume Resistivity
>1016 Ω/cm
Specifications Amperage Rating
100 A

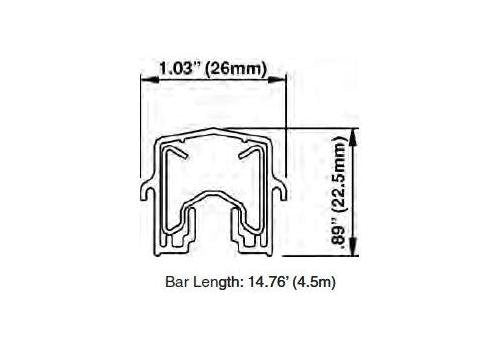

Specifications Bar Length
4.5 m

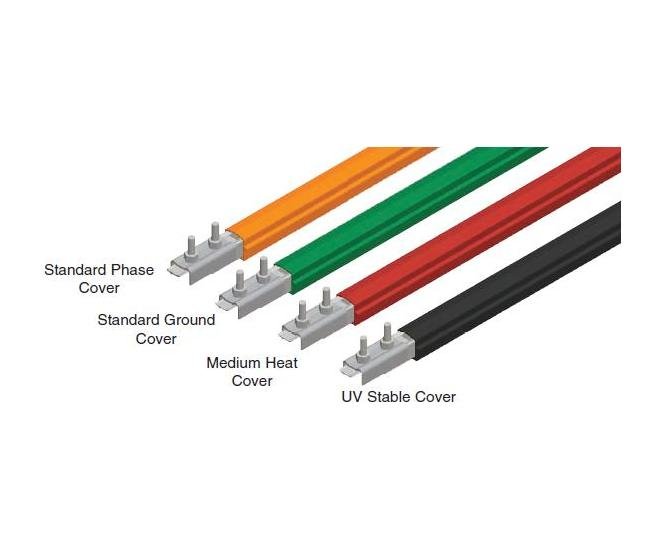

Specifications Cover Type
Medium Heat Cover (Red)
Specifications Cross Sectional Area
63 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.002891 Ω/m
Specifications Material
Galvanized Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
100 A
Specifications Resistance R For Dc At 20 C
0.002867 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
5.3 lb | 2.4 kg
