Galvanized Steel Conductor Bars with Splice - Safelec 2 Series
Galvanized Steel Conductor Bars with Splice - Safelec 2 Series
SKU:CRA-356a7c
High-quality Galvanized Steel Conductor Bars with Splice for reliable power distribution in industrial settings. Amperage Rating: 125A, Max Voltage: 600V, PVC Cover, Durable & Safe.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Galvanized Steel Conductor Bars with Splice - Safelec 2 Series
$399.99
Quantity: 1
Claim Your Seller Account
Galvanized Steel Conductor Bars with Splice - Safelec 2 Series
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your crane control system with these high-quality Galvanized Steel Conductor Bars with pre-installed splice. Designed for industrial use, these bars have an amperage rating of 125A and a cross-sectional area of 93 mm², ensuring reliable and efficient power distribution. The PVC cover material provides durability and safety, meeting stringent industry standards such as a dielectric strength of 180 kv/cm. With a maximum system voltage of 600V and self-extinguishing flame properties, these conductor bars are ideal for both consumer and institutional buyers looking for top-notch electrification solutions.
Product Specifications
Cover Specifications Cover Material
PVC
Cover Specifications Dielectric Strength
180 kv/cm
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Oxygen Index
54%
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Surface Resistivity
1011 Ω
Cover Specifications Vicat Softening Temperature
71.1 ºC | 160 ºF
Cover Specifications Volume Resistivity
>1015 Ω/cm
Specifications Amperage Rating
125 A

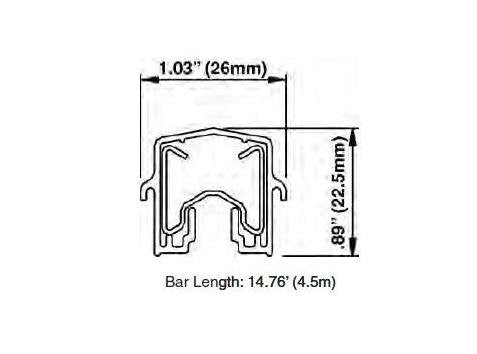

Specifications Bar Length
4.5 m

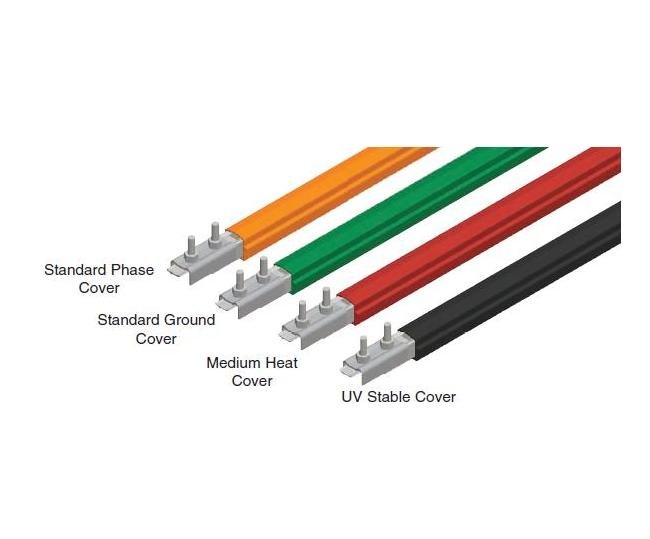

Specifications Cover Type
Standard Ground Cover (Green)
Specifications Cross Sectional Area
93 mm²
Specifications Expansion Sections
150 m
Specifications Impedance Z For Ac At 20 C
0.001933 Ω/m
Specifications Material
Galvanized Steel
Specifications Maximum Allowable Ambient Temperature
25 ºC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
600 V
Specifications Minimum Bending Radius
1.5 m
Specifications Minimum Pitch Centers Standard
43 mm
Specifications Nominal Current
125 A
Specifications Resistance R For Dc At 20 C
0.001933 Ω/m
Specifications Support Pitch Lateral
1125 mm
Specifications Support Pitch Standard
1500 mm
Specifications Weight
5.3 lb | 2.4 kg
