Galvanized Steel Expansion Section with Splice Installed
Galvanized Steel Expansion Section with Splice Installed
SKU:CRA-57a23c
Durable Galvanized Steel Expansion Section for structural joints, 100 A Amperage Rating, and Medium Heat Cover.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Galvanized Steel Expansion Section with Splice Installed
$129.99
Quantity: 1
Claim Your Seller Account
Galvanized Steel Expansion Section with Splice Installed
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

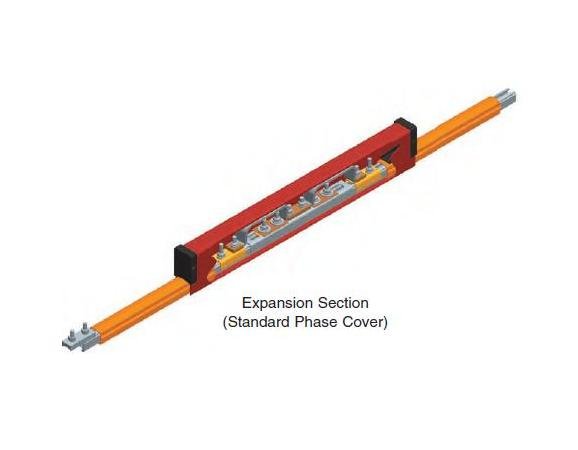

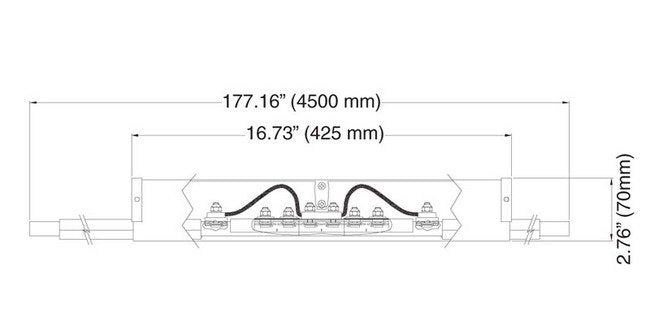

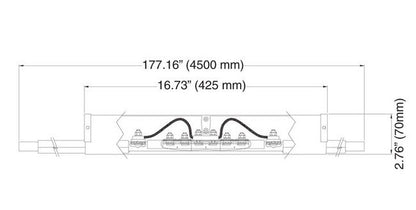

The Galvanized Steel Expansion Section with Splice Installed is designed for structural expansion joints and long systems exceeding 492 ft. (150 m), accommodating thermal changes up to 2.0" (50 mm). This 14' 9" (4.5 m) section, made of durable galvanized steel, replaces a length of conductor bar, ensuring efficient current conduction and structural integrity. With an Amperage Rating of 100 A and a Medium Heat Cover, this Expansion Section meets rigorous safety and performance standards for crane control and electrification systems.
Product Specifications
Specifications Amperage Rating
100 A
Specifications Cover Type
Medium Heat Cover (Red)
Specifications Material
Galvanized Steel
Specifications Weight
6.2 lb | 2.8 kg
