Galvanized Steel Forged Clevis Socket Fitting - 9/16"
Galvanized Steel Forged Clevis Socket Fitting - 9/16"
SKU:ARC-9d877a
Premium 9/16" Galvanized Steel Clevis Fitting - Forged Series - High Strength & Precision. Compliant with industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Galvanized Steel Forged Clevis Socket Fitting - 9/16"
$24.99
Quantity: 1
Claim Your Seller Account
Galvanized Steel Forged Clevis Socket Fitting - 9/16"
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Galvanized Steel Forged Clevis Socket Fitting, part of the Forged Series, is specifically designed for secure installation on 9/16" wire ropes. With dimensions crafted for precision and a breaking strength of 33,600#, this fitting ensures reliable performance. Compliant with industry standards, this high-quality fitting is ideal for architectural cable railings and institutional applications where strength and durability are paramount.
Product Specifications
Additional Information About Breaking Strength 0
Rope fittings are designed for linear applications only. Never subject Electroline rope fittings to angular loads. Follow rope manufacturersâ recommendations regarding the suitability of the rope on angled surfaces such as sheaves and pulleys.The strength of an assembly greatly depends on the type of rope used. When using Electroline terminations in an assembly, the rope is often the weakest component. Therefore, it is important to follow the rope manufacturers specifications regarding use, care, and suitability of the assembly. Electroline terminations should be inspected for deformation and unusual wear every time the rope is inspected.The rated assembly breaking strengths provided with Electroline wire rope part numbers in this catalog are typical for 6 x 19 IWRC (1 x 19 IWRC in smaller sizes) carbon steel ropes. Due to customer demand regarding dimensions, forged studs (GD 300 series), open body turnbuckles (XD series), fittings with hooks, and machined eyes (ID 200 series) are rated to Improved Plow Steel (IPS) standards. These fittings can be modified to Extra Improved Plow Steel (EIPS) standards if requested. All other carbon steel fittings conform to EIPS standards.Stainless steel typically yields at 85% of the assembly breaking strengths listed in this catalog and may not be suitable for high load applications or re-termination purposes.Machined fittings are at least 1.3 times stronger than the corresponding steel rope. Forged fittings, except studs, are 2.0 times stronger. Items specified as hot-dipped galvanized include a zinc, electro-plated sleeve.

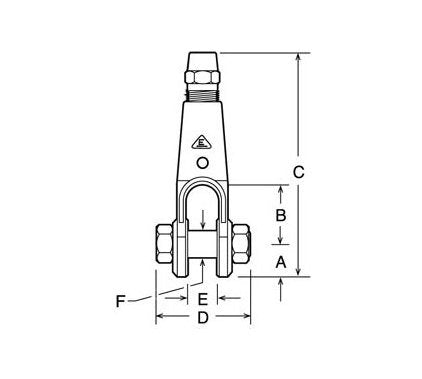

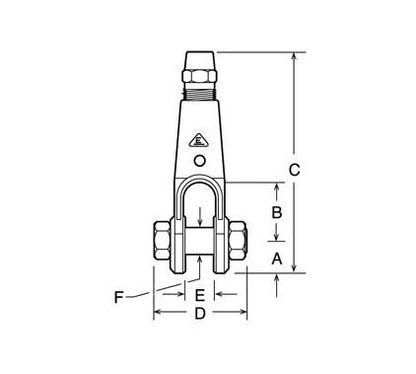

Specifications Dimensions F
1 "
Specifications Dim A
1-1/4 "
Specifications Dim B
2-1/2 "
Specifications Dim C
8-5/8 "
Specifications Dim D
3-7/16 "
Specifications Dim E
1-1/4 "
Specifications Eips Breaking Strength
33,600#
Specifications Material Finish
Galvanized Steel
Specifications Rope Size
9/16 "
Specifications Series
Forged
CAGE
0T9L4
NAICS
332510
PSC
4030
