Galvanized Turnbuckle Eye & Eye, 7/8 x 18, WLL 7200 lbs

Name: Galvanized Turnbuckle Eye & Eye, 7/8 x 18, WLL 7200 lbs
Brand: Lexco Cable Manufacturing
SKU: WIR-6ce108
Price: 49.99 USD
Availability: OutOfStock

SKU:WIR-6ce108

High-quality Galvanized Turnbuckle Eye & Eye, meets FF-T-791b specifications, WLL 7200 lbs

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

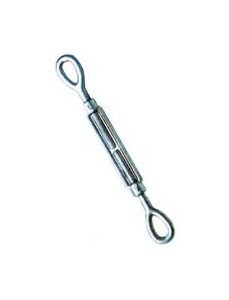

The Hot Dip Galvanized Drop Forged Turnbuckle Eye & Eye meets stringent Federal Specification FF-T-791b, Type 1, Form 1 - Class 4 standards. Designed for durability, the end fittings are quenched and tempered while the bodies are normalized. With a proof load of 2.5 times the working load limit and an ultimate load of 5 times the working load limit, this turnbuckle ensures reliability and safety. The dimensions include Thread Dia & Take Up of 7/8 x 18 inches, with a weight of 9.95 lbs and closed dimensions of E: 30.82 inches, D: 48.82 inches, P: 5.1 inches. Whether for construction, marine, or general industrial applications, this turnbuckle guarantees high performance and longevity.

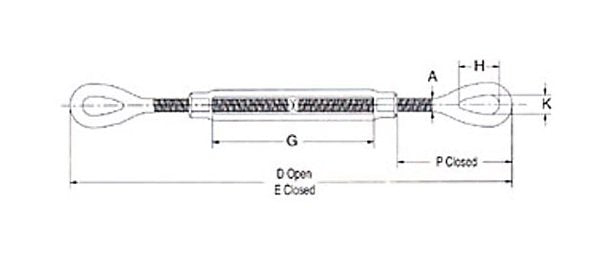

Product Specifications

Specifications A

0.88

Specifications D Open

48.82

Specifications E Closed

30.82

Specifications G

Specifications H

2.38

Specifications K

1.25

Specifications P Closed

5.1

Specifications Thread Dia Take Up In

7/8 x 18

Specifications Weight

9.95

Specifications Wll Lbs

7200
