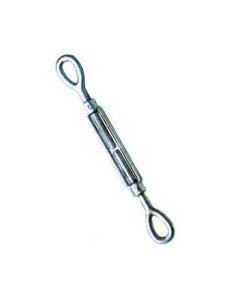

Galvanized Turnbuckle Eye & Eye, Hot Dip Drop Forged - 3/4 x 9 in
Galvanized Turnbuckle Eye & Eye, Hot Dip Drop Forged - 3/4 x 9 in
SKU:WIR-bdcf98
High-quality Hot Dip Galvanized Drop Forged Turnbuckle Eye & Eye meeting Federal Spec FF-T-791b, Type 1 - Class 4
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Galvanized Turnbuckle Eye & Eye, Hot Dip Drop Forged - 3/4 x 9 in
$45.99
Quantity: 1
Claim Your Seller Account
Galvanized Turnbuckle Eye & Eye, Hot Dip Drop Forged - 3/4 x 9 in
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hot Dip Galvanized Drop Forged Turnbuckle Eye & Eye is designed to meet the highest standards for durability and strength. Compliant with Federal Specification FF-T-791b, Type 1, Form 1 - Class 4, this turnbuckle features quenched and tempered end fittings with normalized bodies. With a proof load of 2.5 times the working load limit and an ultimate load of 5 times the working load limit, this turnbuckle ensures reliable performance under heavy loads. Ideal for wire rope applications, its precise dimensions and sturdy construction make it a top choice for industrial and institutional use.

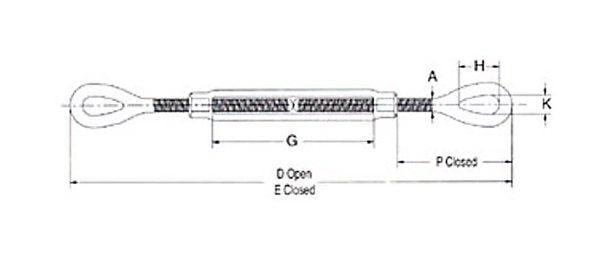

Product Specifications
Specifications A
0.75
Specifications D Open
29.62
Specifications E Closed
20.62
Specifications G
9
Specifications H
2.09
Specifications K
1
Specifications P Closed
4.69
Specifications Thread Dia Take Up In
3/4 x 9
Specifications Weight
4.61
Specifications Wll Lbs
5200
