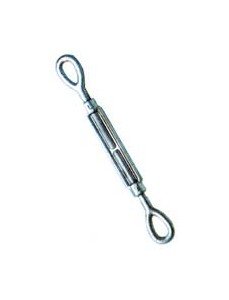

Galvanized Turnbuckle Eye & Eye, Hot Dip Forged - 3/4 x 18

Name: Galvanized Turnbuckle Eye & Eye, Hot Dip Forged - 3/4 x 18
Brand: Lexco Cable Manufacturing
SKU: WIR-5466b7
Price: 64.99 USD
Availability: OutOfStock

SKU:WIR-5466b7

Meet Federal Spec FF-T-791b Type 1 Class 4 with our Hot Dip Galvanized Turnbuckles Eye & Eye - 3/4 x 18. 2.5x proof load. Durable & reliable.

$64.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

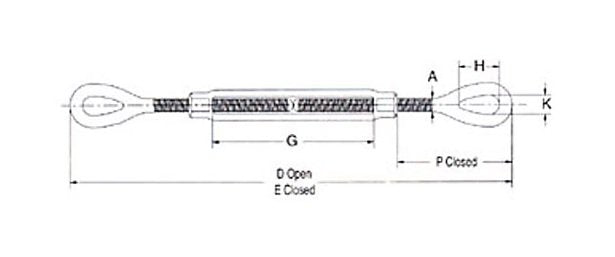

The Hot Dip Galvanized Drop Forged Turnbuckles Eye & Eye are engineered to meet stringent Federal Specification FF-T-791b requirements, Type 1, Form 1 - Class 4. With hot dip galvanization for enhanced durability, quenched and tempered end fittings, normalized bodies, and a 2.5 times proof load over the working load limit, these turnbuckles ensure reliable performance. Ideal for wire rope applications, the dimensions include Thread Dia & Take Up: 3/4 x 18, WLL: 5200 lbs, Weight: 7.25 lbs, A: 0.75, D Open: 47.62, E Closed: 29.62, G: 18, H: 2.09, K: 1, and P Closed: 4.69.

Product Specifications

Specifications A

0.75

Specifications D Open

47.62

Specifications E Closed

29.62

Specifications G

Specifications H

2.09

Specifications K

Specifications P Closed

4.69

Specifications Thread Dia Take Up In

3/4 x 18

Specifications Weight

7.25

Specifications Wll Lbs

5200
