Galvanized Turnbuckle Hook & Eye, Federal Spec FF-T-791b
Galvanized Turnbuckle Hook & Eye, Federal Spec FF-T-791b
SKU:WIR-d91d8d
High-strength galvanized turnbuckle hook & eye meeting federal standards FF-T-791b. Durable, reliable, and versatile for wire rope systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Galvanized Turnbuckle Hook & Eye, Federal Spec FF-T-791b
$29.99
Quantity: 1
Claim Your Seller Account
Galvanized Turnbuckle Hook & Eye, Federal Spec FF-T-791b
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

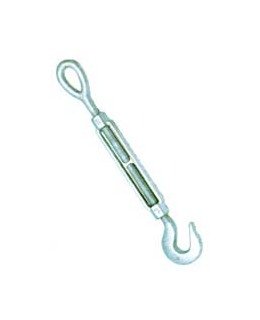

The Hot Dip Galvanized Drop Forged Turnbuckle Hook & Eye meets Federal Specification FF-T-791b, Type 1, Form 1 - Class 6 standards, ensuring durability and reliability. With quenched and tempered end fittings, normalized bodies, and a 2.5x proof load over the working load limit, this turnbuckle offers superior strength and performance. Its dimensions allow for versatile applications in wire rope systems.

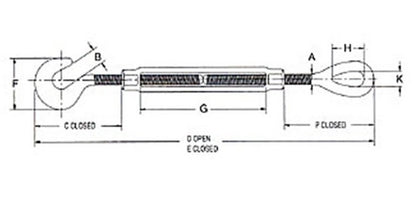

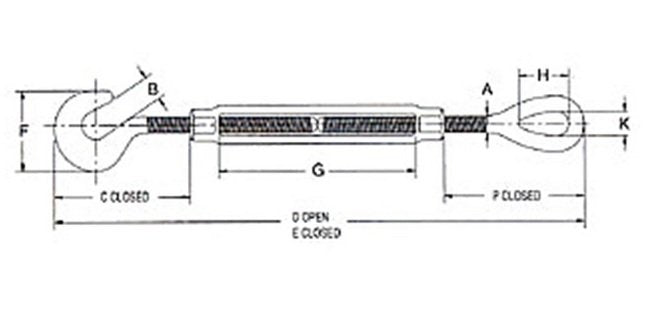

Product Specifications
Specifications A
0.63
Specifications B
0.84
Specifications C Closed
3.69
Specifications D Open
27.25
Specifications E Closed
18.25
Specifications F
2.81
Specifications G
9
Specifications H
1.75
Specifications K
0.88
Specifications P Closed
3.9
Specifications Thread Dia Take Up In
5/8 x 9
Specifications Weight
3.13
Specifications Wll Lbs
2250
