Galvanized Turnbuckle Hook & Eye, Federal Spec FF-T-791b, Class 6

Name: Galvanized Turnbuckle Hook & Eye, Federal Spec FF-T-791b, Class 6
Brand: Lexco Cable Manufacturing
SKU: WIR-3e9d09
Price: 49.99 USD
Availability: OutOfStock

SKU:WIR-3e9d09

Federal Spec Galvanized Turnbuckle Hook & Eye, 2.5x Proof Load, 5x Ultimate Load. Durable, precise dimensions.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

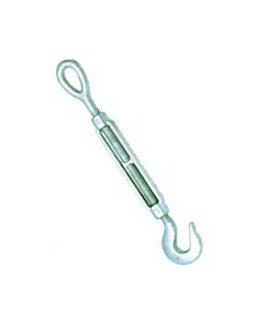

The Hot Dip Galvanized Drop Forged Turnbuckle Hook & Eye is designed to meet Federal Specification FF-T-791b, Type 1, Form 1 - Class 6 standards. With quenched and tempered end fittings and normalized bodies, this turnbuckle offers exceptional strength and durability. It has a 2.5 times working load limit as proof load and a 5 times working load limit as the ultimate load. Dimensions approximately measure Thread Dia & Take Up: 1 x 6 inches, Weight: 9.33 lbs, Closed Length: 5.84 inches, Open Length: 26.69 inches, Closed Height: 20.69 inches, and other precise specifications.

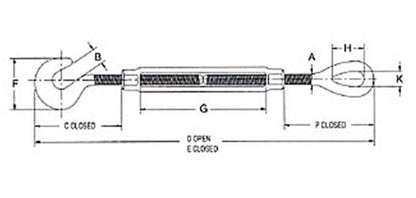

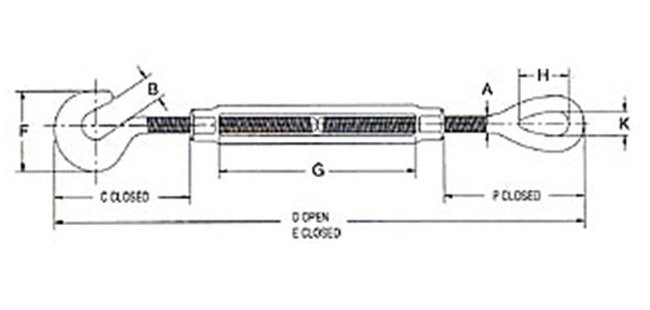

Product Specifications

Specifications A

Specifications B

1.25

Specifications C Closed

5.84

Specifications D Open

26.69

Specifications E Closed

20.69

Specifications F

4.25

Specifications G

Specifications H

Specifications K

1.44

Specifications P Closed

6.36

Specifications Thread Dia Take Up In

1 x 6

Specifications Weight

9.33

Specifications Wll Lbs

5000
