Galvanized Turnbuckle Hooks, Hot Dip Forged - 5/16 x 4-1/2 in.

Name: Galvanized Turnbuckle Hooks, Hot Dip Forged - 5/16 x 4-1/2 in.
Brand: Lexco Cable Manufacturing
SKU: WIR-f16e71
Price: 34.99 USD
Availability: OutOfStock

SKU:WIR-f16e71

High-strength Hot Dip Galvanized Turnbuckle Hooks, compliant with Federal Specification FF-T-791b, Type 1, Class 5.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience durability and safety with our Hot Dip Galvanized Drop Forged Turnbuckles Hook & Hook. Compliant with Federal Specification FF-T-791b, Type 1, Form 1 - Class 5, these turnbuckles are designed for maximum strength. The end fittings are quenched and tempered while the bodies are normalized, ensuring reliability in heavy-duty applications. With a proof load 2.5 times the working load limit and ultimate load 5 times the working load limit, trust in the robust construction of these turnbuckles to secure your loads with confidence.

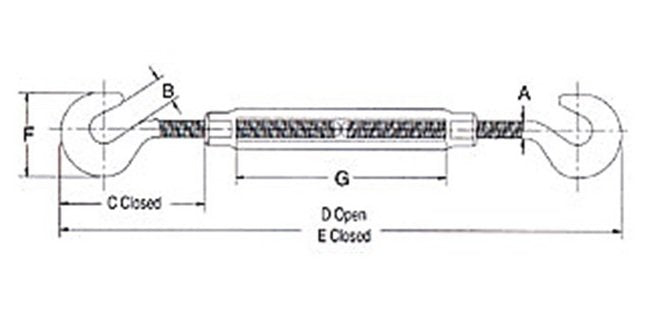

Product Specifications

Specifications A

0.31

Specifications B

0.5

Specifications C Closed

1.94

Specifications D Open

13.81

Specifications E Closed

9.31

Specifications F

1.5

Specifications G

4.5

Specifications Thread Dia Take Up In

5/16 x 4-1/2

Specifications Weight

0.47

Specifications Wll Lbs

700
