Galvanized Turnbuckle Jaw & Eye, Federal Spec FF-T-791b Type 1
Galvanized Turnbuckle Jaw & Eye, Federal Spec FF-T-791b Type 1
SKU:WIR-a23096
Meet Federal Spec FF-T-791b Type 1 standards with our Galvanized Turnbuckle Jaw & Eye. Reliable, durable, and high-performing turnbuckle for heavy-duty applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Galvanized Turnbuckle Jaw & Eye, Federal Spec FF-T-791b Type 1
$59.99
Quantity: 1
Claim Your Seller Account
Galvanized Turnbuckle Jaw & Eye, Federal Spec FF-T-791b Type 1
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

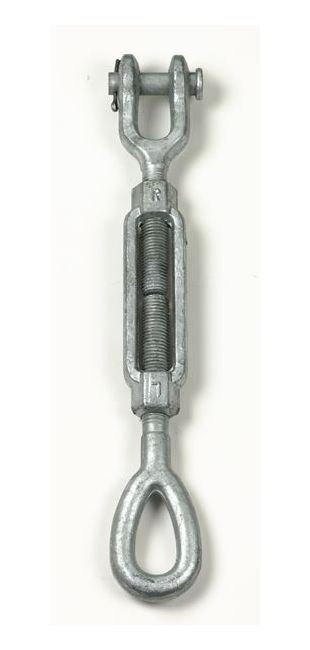

The Hot Dip Galvanized Drop Forged Turnbuckle Jaw & Eye meets stringent Federal Specifications FF-T-791b, Type 1, Form 1 - Class 8, ensuring superior quality and durability. With end fittings that are quenched and tempered and bodies normalized, this turnbuckle offers exceptional strength and performance. Its proof load is 2.5 times the working load limit, with an ultimate load of 5 times the working load limit. Perfect for heavy-duty applications, this turnbuckle is a reliable solution that guarantees safety and reliability in your projects.

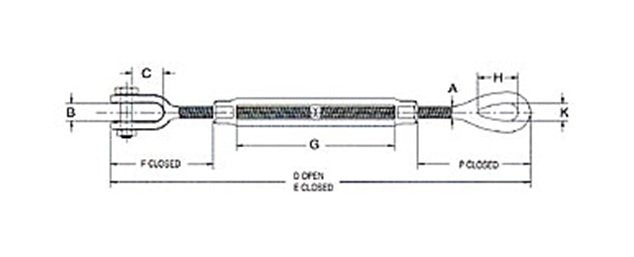

Product Specifications
Specifications A
1.25
Specifications B
1.75
Specifications C Closed
2.81
Specifications D Open
42.05
Specifications E Closed
30.05
Specifications F
7.21
Specifications G
12
Specifications H
3.56
Specifications K
1.81
Specifications Pin Diameter In
1-1/8
Specifications P Closed
7.72
Specifications Thread Dia Take Up In
1-1/4 x 12
Specifications Weight
20
Specifications Wll Lbs
15,200
