Galvanized Turnbuckles Jaw & Jaw, Hot Dip Forged

Name: Galvanized Turnbuckles Jaw & Jaw, Hot Dip Forged
Brand: Lexco Cable Manufacturing
SKU: WIR-c65d38
Price: 39.99 USD
Availability: OutOfStock

SKU:WIR-c65d38

Premium Hot Dip Galvanized Turnbuckles with UNC Threads for Heavy-Duty Applications

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hot Dip Galvanized Drop Forged Turnbuckles Jaw & Jaw are meticulously crafted for superior strength and durability. With quenched, tempered end fittings and heat-treated bodies, these turnbuckles excel in performance and reliability. Recommended for straight-line pulls, these turnbuckles feature UNC threads and are ideal for heavy-duty applications. Made from hot dip galvanized steel, they offer exceptional corrosion resistance, extending their service life even in harsh environments.

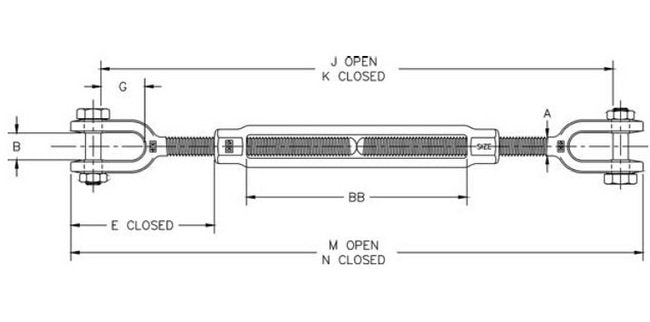

Product Specifications

Specifications A

0.5

Specifications B

0.64

Specifications Bb

9.36

Specifications E Closed

3.2

Specifications G

1.07

Specifications J Open

24.94

Specifications K Closed

15.94

Specifications M Open

26.43

Specifications N Closed

17.43

Specifications Pin Diam

.37 "

Specifications Thread Dia Take Up In

1/2 x 9

Specifications Weight

2.29

Specifications Wll Lbs

2200
