Galvanized Universal C-Type Clamp for Versatile Pipe Support
Galvanized Universal C-Type Clamp for Versatile Pipe Support
SKU:PIP-9b99ff
Durable Galvanized C-Type Clamp for Reliable Pipe Support
Regular price
$17.99
Regular price
Sale price
$17.99
Unit price
per
Initiate Order
Galvanized Universal C-Type Clamp for Versatile Pipe Support
$17.99
Quantity: 1
Claim Your Seller Account
Galvanized Universal C-Type Clamp for Versatile Pipe Support
$17.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

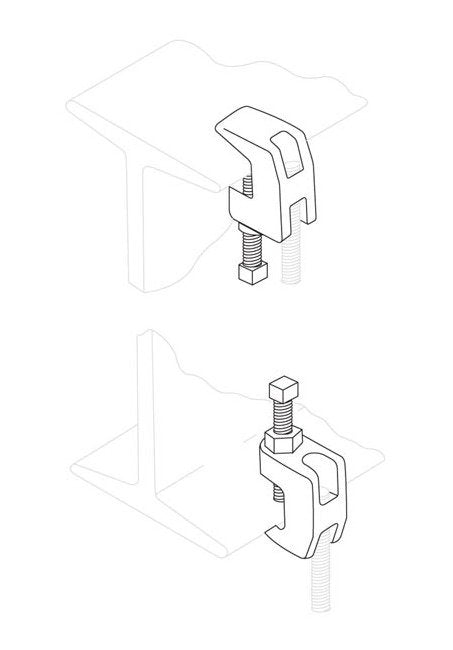

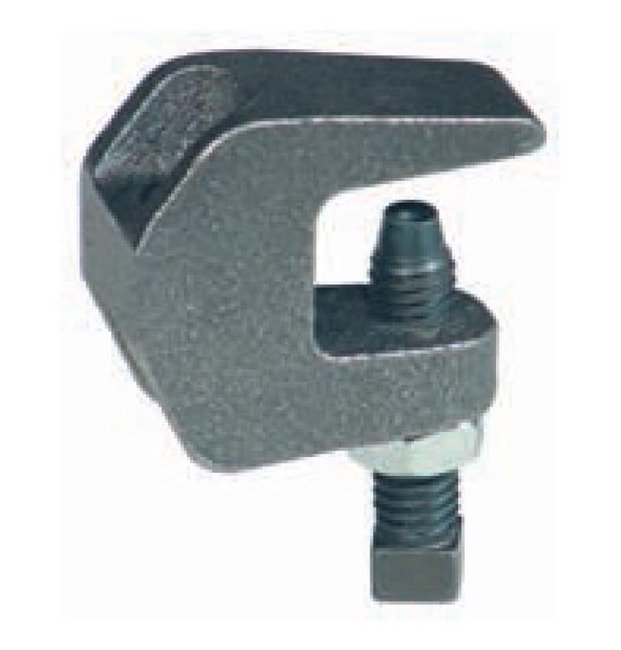

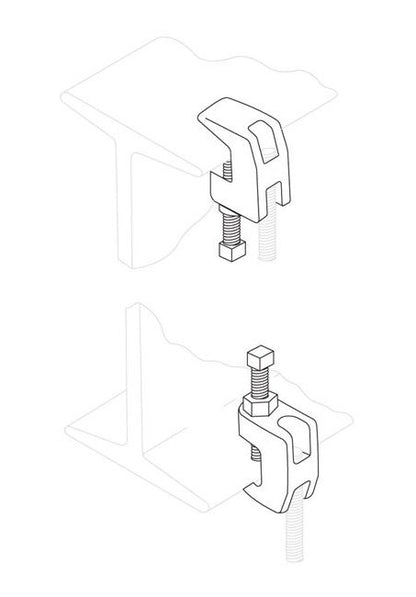

The Galvanized Universal C-Type Clamp with a standard throat is a reliable choice for pipe and tube support applications in various settings. Crafted from high-quality ductile iron with a hardened steel cup point set screw and locknut, this clamp ensures secure attachment under roof installations with bar joist type construction. It is designed for use on top or bottom flanges of structural shapes, offering offset capabilities for hanger rods while accommodating flange thickness up to 3/4 inches. Meeting Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards, this clamp is UL, ULC listed, and FM approved.
Ready to Grow Without Cash Flow Constraints?

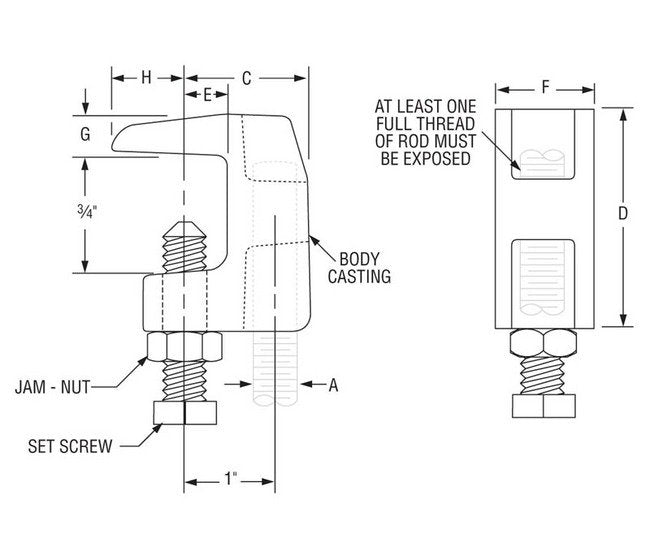

Product Specifications
Specifications Dimension C
1 5/16 inches
Specifications Dimension D
1 9/16 inches
Specifications Dimension E
9/16 inches
Specifications Dimension F
13/16 inches
Specifications Dimension G
3/8 inches
Specifications Dimension H
1/2 inches
Specifications Finish
Galvanized | Plain
Specifications Material
Ductile iron
Specifications Maximum Load Bottom
250 lbs
Specifications Maximum Load Top
500 lbs
Specifications Maximum Temperature
450 °F
Specifications Rod Size A
3/8 inches
Specifications Set Screw Size
3/8
Specifications Weight
0.34 lbs
