Galvanized Universal C-Type Clamp (Standard Throat) - 1/2"
Galvanized Universal C-Type Clamp (Standard Throat) - 1/2"
SKU:PIP-d050ac
High-quality Galvanized C-Type Clamp for secure pipe suspension, compliant with top industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Galvanized Universal C-Type Clamp (Standard Throat) - 1/2"
$24.99
Quantity: 1
Claim Your Seller Account
Galvanized Universal C-Type Clamp (Standard Throat) - 1/2"
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

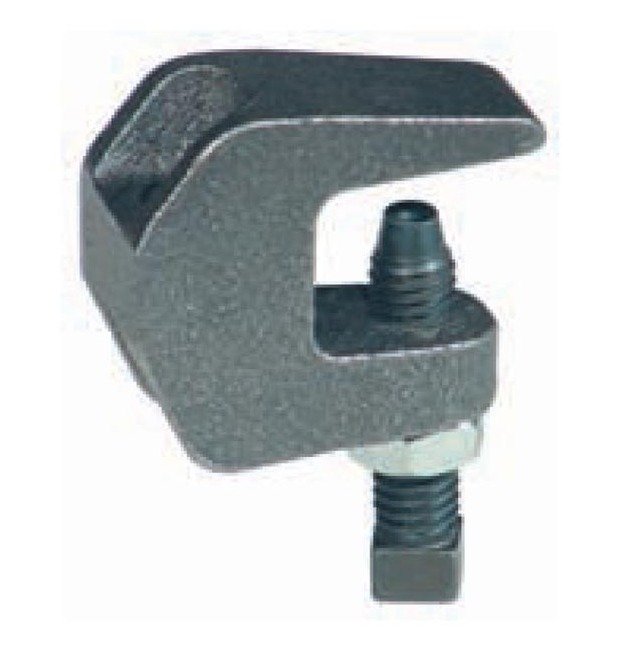

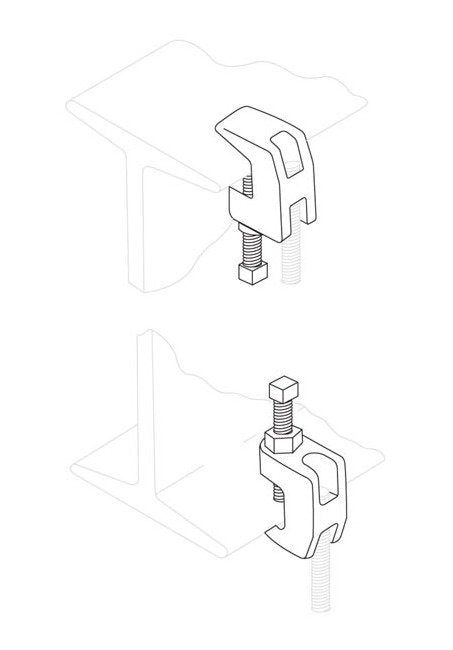

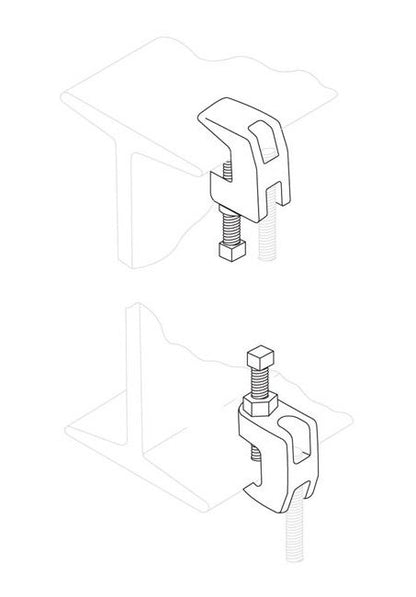

The Galvanized Universal C-Type Clamp (Standard Throat) is designed for secure pipe and tube suspension in roof installations with bar joist construction. Made of high-quality ductile iron and featuring a hardened steel cup point set screw and locknut, this clamp ensures strength and durability. Compliant with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards, as well as UL, ULC, and FM approvals, it meets stringent industry requirements. Ideal for use with seismic applications when paired with the Fig 89X retaining clip, this clamp offers versatility and reliability for various installation needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

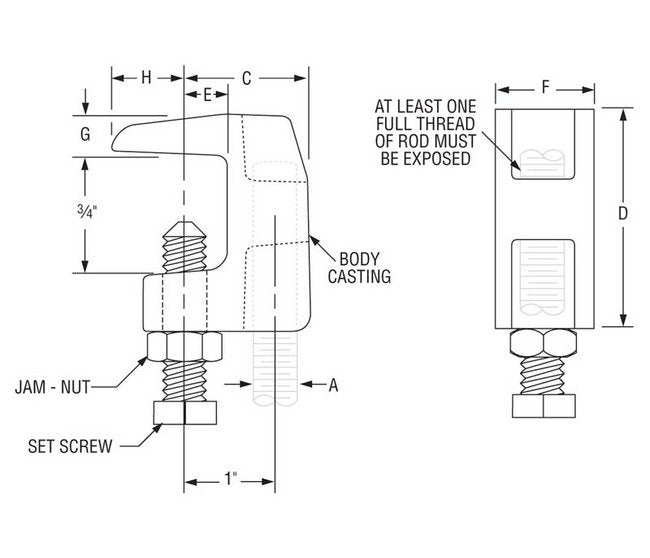

Specifications Dimension C
1 3/8 inches
Specifications Dimension D
1 13/16 inches
Specifications Dimension E
1/2 inches
Specifications Dimension F
1 1/16 inches
Specifications Dimension G
7/16 inches
Specifications Dimension H
23/32 inches
Specifications Finish
Galvanized | Plain
Specifications Material
Ductile iron
Specifications Maximum Load Bottom
760 lbs
Specifications Maximum Load Top
950 lbs
Specifications Maximum Temperature
450 °F
Specifications Rod Size A
1/2 inches
Specifications Set Screw Size
1/2
Specifications Weight
0.63 lbs
