Ganesh Precision Milling Machine GMV-1F
Ganesh Precision Milling Machine GMV-1F
SKU:MIL-0b1b38
Achieve precision and efficiency with the Ganesh GMV-1F Milling Machine. Ideal for institutional machining needs.
Regular price
$22,999.00
Regular price
Sale price
$22,999.00
Unit price
per
Initiate Order
Ganesh Precision Milling Machine GMV-1F
$22,999.00
Quantity: 1
Claim Your Seller Account
Ganesh Precision Milling Machine GMV-1F
$22,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

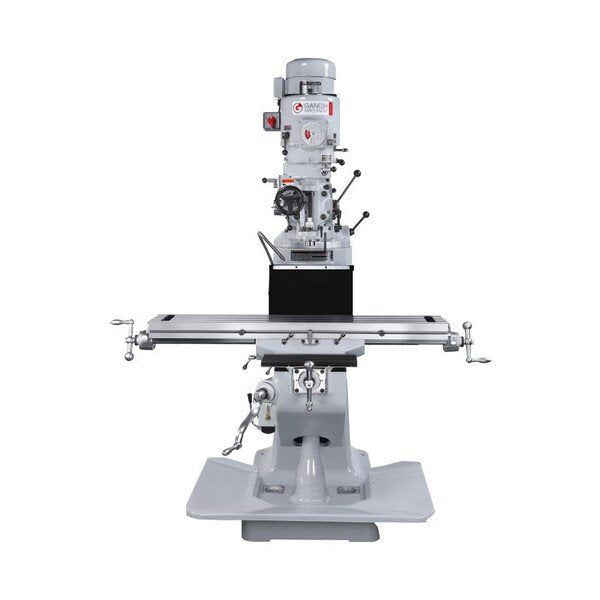

The Ganesh Precision Milling Machine GMV-1F is a robust industrial-grade solution designed for precision machining applications. With features like Class-7 Super Precision Spindle Bearings, Hard-Chrome Plated Quill, and Coolant Proof Halogen Lamp, this machine ensures high accuracy and efficiency. The Meehanite Castings construction provides superior vibration dampening and extended tool life, making it ideal for institutional settings requiring top-notch performance and reliability. Optional accessories like Digital Readouts and Automatic Lubrication enhance operational convenience.
Product Specifications
Features Features
Class-7 Super Precision Spindle BearingsHard-Chrome Plated and Mirror Ground QuillHard-Chrome Plated X & Y Axis WaysCoolant Proof Halogen Lamp Standard
Machine Features Machine Features

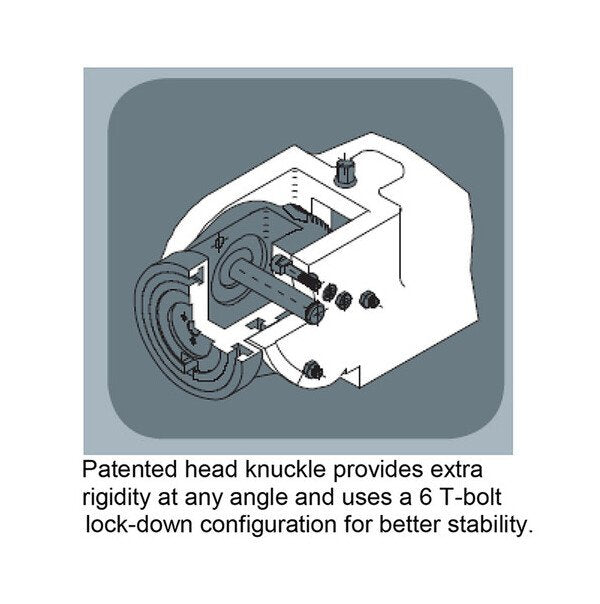

Multiple knee and table locks for superior cutting rigidityHead tilting system locked to ram with 6 T-bolts, instead of 3 like others useT-slots ground to 5/8" for an accurate reference edge - fits standard work holding T-nutsOne-Shot Metered Central Lubrication System for slideways and lead screwsBuilt-in coolant pumpChip-Tray is includedWater resistant halogen lamp is includedPainted dark grey (RAL7011)Instruction Manual, Tools and Tool Box all includedLarge compliment of parts and accessories in stock to ensure continued operationGanesh GMV-1F machines are manufactured in a Certified ISO 9001 Factory in Taiwan.A large compliment of spare parts is in stock at Expand Machinery's facility to ensure your continued operation.Machine operation and service manuals are provided with each machine in electronic format on a USB memory stick. Printed manuals are also available for your use for a $150 printing fee.
Optional Accessories Optional Accessories
Factory machine installation: "Peace-of-Mind Factory Installation" â includes expenses: $1,995.00Newall/ Fagor 2-Axis Digital Readout installed: $1,795.00Newall/ Fagor 3-Axis Digital Readout (3rd axis is on the quill) installed: $2,350.00Automatic Machine Lubrication installed: $350.004" Riser installed on your machine: $650.008" Riser installed on your machine: $900.00Wiring to 440 volts: $395.00Hi-Torque Longitudinal Powerfeed installed: $595.00Hi-Torque Cross Powerfeed installed: $695.00Hi-Torque Knee Powerfeed installed: $795.00Powerpac Air Power Drawbar installed: $995.00
Standard Accessories Standard Accessories
Cross Axis Way Cover - $135 ValueOne-Shot Lubrication System - $165 ValueHalogen Work Light - $ 395 Value
Technical Specs Adjustable Scale Ring Display Resolution
0.001 in | 5 mm
Technical Specs Bed Ways
Turcite-B Premium Coated way surfacesHard Chrome plating for X & Y axesHardened and Ground Dovetail slideways in X, Y, & ZHardened and Ground Table
Technical Specs Brands
Expand Machinery
Technical Specs Coolant Capacity
8.7 gal | 33 L
Technical Specs Cross Travel Y Axis
12 in | 305 mm

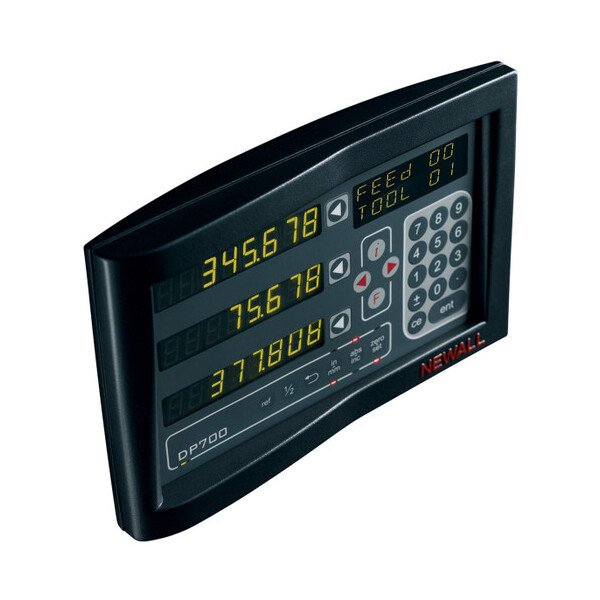

Technical Specs Digital Readout
Newall/Fagor 3-Axis
Technical Specs Distance From Spindle Nose To Table
0 to 18.5 in | 0 to 469 mm
Technical Specs Head Swivel
360 º
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
90 º
Technical Specs Head Tilting Up And Down In Degrees
-38 º

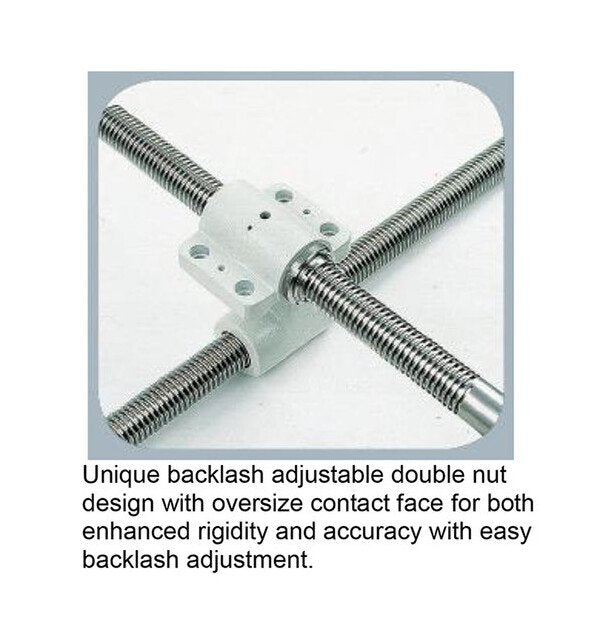

Technical Specs Leadscrews With Ground Pitch Surface X And Y Bal
0.200 in/rev
Technical Specs Longitudinal Travel With Power Feed
27 in
Technical Specs Machine Construction
Meehanite Castings, fine grain and high density cast iron using the superior Meehanite process yields superior vibration dampening and improved surface finish and tool life
Technical Specs Milling Head Gear And Quill
Power quill feed with 3-feeds and adjustable feed stop & automatic feed trip releaseHardened and Ground Quill â Hard chrome plated and polished for a long service lifeDynamically balance pulleys supported in precision bearings
Technical Specs Power Draw Bar
Pneumatic
Technical Specs Power Quill Feeds
0.0015 in/rev | 0.003 in/rev | 0.006 in/rev | 0.04 mm | 0.08 mm | 0.16 mm
Technical Specs Quill Diameter
3-3/8 in | 85.725 mm
Technical Specs Quill Travel
5 in | 127 mm
Technical Specs Ram Travel
12 in | 305 mm
Technical Specs Spindle
Spindle supported by two precision angular contact and one ball-bearing to ensure rigidityABEC Class-7 matched Super Precision spindle bearingsSpindle made from one-piece Ni-Cr alloy steel with inner taper hardened and ground
Technical Specs Spindle Bearings Abec 7 Matched Set
Class-7 bearings
Technical Specs Spindle Centerline To Column Face
6.75 to 18.75 in | 171 to 476 mm
Technical Specs Spindle Drive
Variable
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Runout Maximum
0.00008 in
Technical Specs Spindle Speeds
60 to 4500 rpm
Technical Specs Spindle Taper
R8
Technical Specs Table Load Capacity
400 lb | 200 kg
Technical Specs Table Size
9 x 42 in | 230 x 1067 mm
Technical Specs T Slots Centers
2.5 in
Technical Specs T Slot Quantity
3
Technical Specs T Slot Width
5/8 in
Technical Specs Voltage
208 to 240 V
