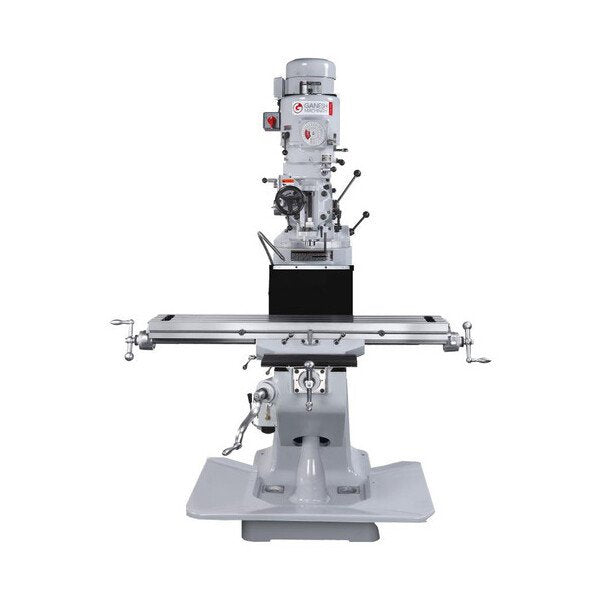

GANESH Precision Milling Machine GMV-1F, 9 x 42 in, 3-Axis DRO
GANESH Precision Milling Machine GMV-1F, 9 x 42 in, 3-Axis DRO
SKU:MIL-77832d
Experience precision and power with the GANESH GMV-1F Milling Machine, featuring 3-Axis DRO and Power Feed.
Regular price
$14,399.99
Regular price
Sale price
$14,399.99
Unit price
per
Initiate Order
GANESH Precision Milling Machine GMV-1F, 9 x 42 in, 3-Axis DRO
$14,399.99
Quantity: 1
Claim Your Seller Account
GANESH Precision Milling Machine GMV-1F, 9 x 42 in, 3-Axis DRO
$14,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GANESH GMV-1F Precision Milling Machine is a versatile industrial powerhouse designed for efficiency and accuracy. With features like 3-Axis DRO, X, Y, Z-Axis Power Feed, and Air-Power Drawbar, it ensures precise machining operations. Crafted with Class-7 Super Precision Spindle Bearings and Meehanite Castings, it offers superior vibration dampening and cutting rigidity. This machine comes with essential accessories like a Halogen Work Light and Cross Axis Way Cover, making it a comprehensive solution for institutional buyers.
Product Specifications
Features Features
Class-7 Super Precision Spindle BearingsHard-Chrome Plated and Mirror Ground QuillHard-Chrome Plated X & Y Axis WaysCoolant Proof Halogen Lamp Standard
Machine Features Machine Features

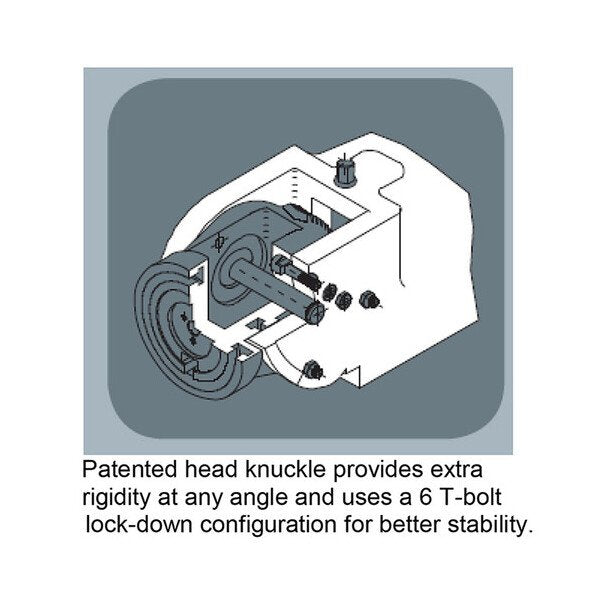

Multiple knee and table locks for superior cutting rigidityHead tilting system locked to ram with 6 T-bolts, instead of 3 like others useT-slots ground to 5/8" for an accurate reference edge - fits standard work holding T-nutsOne-Shot Metered Central Lubrication System for slideways and lead screwsBuilt-in coolant pumpChip-Tray is includedWater resistant halogen lamp is includedPainted dark grey (RAL7011)Instruction Manual, Tools and Tool Box all includedLarge compliment of parts and accessories in stock to ensure continued operationGanesh GMV-1F machines are manufactured in a Certified ISO 9001 Factory in Taiwan.A large compliment of spare parts is in stock at Expand Machinery's facility to ensure your continued operation.Machine operation and service manuals are provided with each machine in electronic format on a USB memory stick. Printed manuals are also available for your use for a $150 printing fee.
Standard Accessories Standard Accessories
Cross Axis Way Cover - $135 ValueOne-Shot Lubrication System - $165 ValueHalogen Work Light - $ 395 Value
Technical Specs Adjustable Scale Ring Display Resolution
0.001 in | 5 mm
Technical Specs Bed Ways
Turcite-B Premium Coated way surfacesHard Chrome plating for X & Y axesHardened and Ground Dovetail slideways in X, Y, & ZHardened and Ground Table
Technical Specs Brands
Expand Machinery
Technical Specs Coolant Capacity
8.7 gal | 33 L
Technical Specs Cross Travel Y Axis
12 in | 305 mm
Technical Specs Digital Readout
Newall/Fagor 3-Axis
Technical Specs Distance From Spindle Nose To Table
0 to 18.5 in | 0 to 469 mm
Technical Specs Head Swivel
360 º
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
90 º
Technical Specs Head Tilting Up And Down In Degrees
-38 º

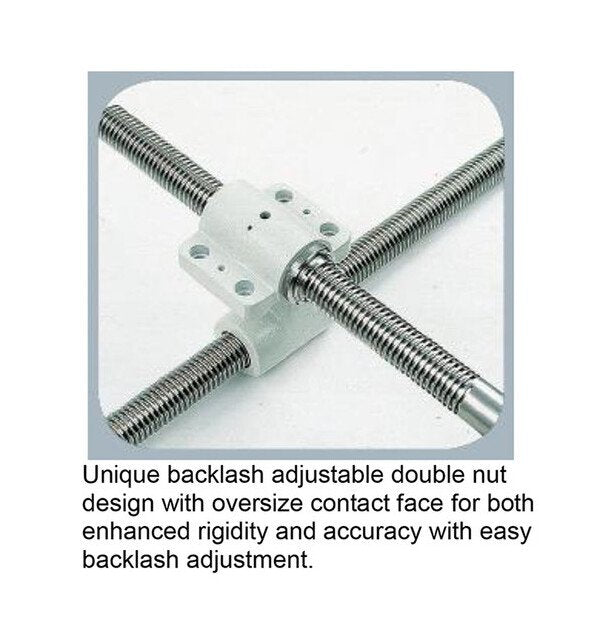

Technical Specs Leadscrews With Ground Pitch Surface X And Y Bal
0.200 in/rev
Technical Specs Longitudinal Travel With Power Feed
27 in
Technical Specs Machine Construction
Meehanite Castings, fine grain and high density cast iron using the superior Meehanite process yields superior vibration dampening and improved surface finish and tool life
Technical Specs Milling Head Gear And Quill
Power quill feed with 3-feeds and adjustable feed stop & automatic feed trip releaseHardened and Ground Quill â Hard chrome plated and polished for a long service lifeDynamically balance pulleys supported in precision bearings
Technical Specs Power Draw Bar
Pneumatic
Technical Specs Power Quill Feeds
0.0015 in/rev | 0.003 in/rev | 0.006 in/rev | 0.04 mm | 0.08 mm | 0.16 mm
Technical Specs Quill Diameter
3-3/8 in | 85.725 mm
Technical Specs Quill Travel
5 in | 127 mm
Technical Specs Ram Travel
12 in | 305 mm
Technical Specs Spindle
Spindle supported by two precision angular contact and one ball-bearing to ensure rigidityABEC Class-7 matched Super Precision spindle bearingsSpindle made from one-piece Ni-Cr alloy steel with inner taper hardened and ground
Technical Specs Spindle Bearings Abec 7 Matched Set
Class-7 bearings
Technical Specs Spindle Centerline To Column Face
6.75 to 18.75 in | 171 to 476 mm
Technical Specs Spindle Drive
Variable
Technical Specs Spindle Motor Phase
3
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Runout Maximum
0.00008 in
Technical Specs Spindle Speeds
60 to 4500 rpm
Technical Specs Spindle Taper
R8
Technical Specs Table Load Capacity
400 lb | 200 kg
Technical Specs Table Size
9 x 42 in | 230 x 1067 mm
Technical Specs Table Surface To Floor Dimension
32 to 48 in | 820 to 1226 mm
Technical Specs T Slots Centers
2.5 in
Technical Specs T Slot Quantity
3
Technical Specs T Slot Width
5/8 in
Technical Specs Voltage
208 to 240 V
