Gardner Denver™ 22 1/8 Inch CycloBlower® Industrial Series
Gardner Denver™ 22 1/8 Inch CycloBlower® Industrial Series
SKU:BLO-157bb4
Efficient Gardner Denver™ 22 1/8 Inch CycloBlower® Industrial Series Blower for clean, high-capacity operation in diverse industrial settings.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Gardner Denver™ 22 1/8 Inch CycloBlower® Industrial Series
$2,499.99
Quantity: 1
Claim Your Seller Account
Gardner Denver™ 22 1/8 Inch CycloBlower® Industrial Series
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

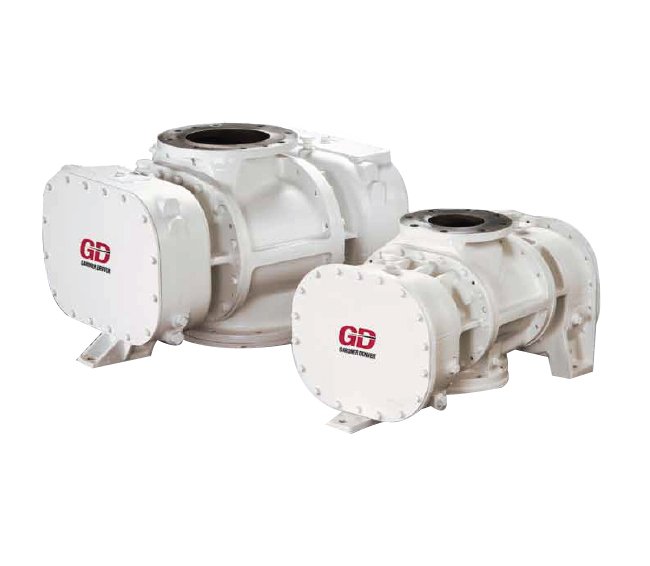

The Gardner Denver™ CycloBlower® Industrial Series Positive Displacement Blower with Vacuum Pump is a reliable and efficient solution for a wide range of industrial applications. Featuring helical screw rotors for shock-free compression and a compact design for reduced vibrations, this blower ensures clean air/gas delivery and high capacity operation. With installations flexibility and low installation costs, it offers high efficiency for improved energy savings. The unit meets ISO 9001:2008, CAGI, and Energy Star Partner standards, delivering superior quality and performance.
Product Specifications
Clean Airgas Delivery
Contact-less rotors removes the need for lubrication within the compression chamber.Outboard position of rotor bearings allows atmospheric venting between the compression chamber and the bearings and gears.Prevents gear and bearing lubricants from contaminating the compression chamber for clean air/gas delivery.
Delivering Clean Oil Free Air To A Wide Range Of Global Applicat
Aeration | Air Scouring | Digester Gas Boosters | Filter Backwashing | Pond Aeration, Municipal or Industrial | Wastewater Treatment
Dependable Quality
Superior and consistent quality can be found in every CycloBlower® as a result of:Continual investment in the training of world-class manufacturing personnel.Quality inspections throughout the entire manufacturing process.Compact design utilizing optimum performance materials.Reduced vibrations result in longer service of critical blower components.
Dimensions Approximate Weight
185 lb
Dimensions Connection Type
NPT
Dimensions Height
11 1/2 in
Dimensions Length
22 1/8 in
Dimensions Port Size
3 in
Dimensions Port Type
Both
Dimensions Width
10 1/2 in
Efficient Shock Free Compression

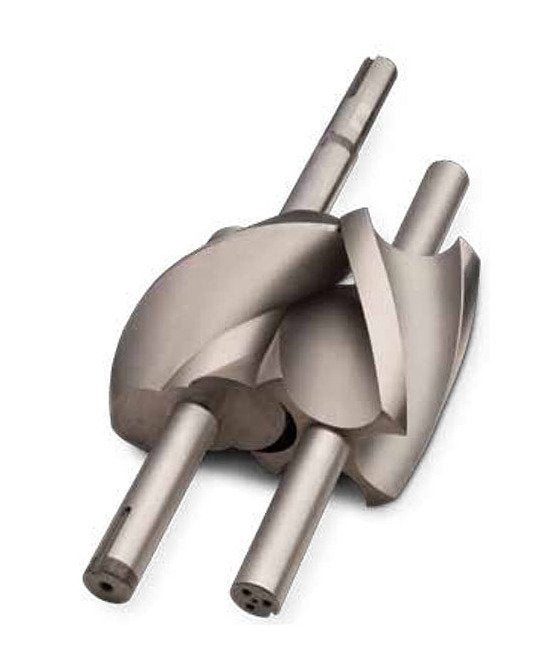

Helical screw rotors generate a balanced compression cycle.Providing a smooth and steady discharge, eliminating the sudden release of trapped pockets of air into the line.Contoured inlet and discharge ports minimize turbulence.
Gardner Denver Redefines The Perception Of Remanufactured
Reman (r¯e man´) n. A Gardner Denver™ positive displacement blower expertly assembled from genuine remanufactured and new parts.Must pass a full-load, hot run test before shipment.Standard new product warranty included.The final word when repair or replacement is required.

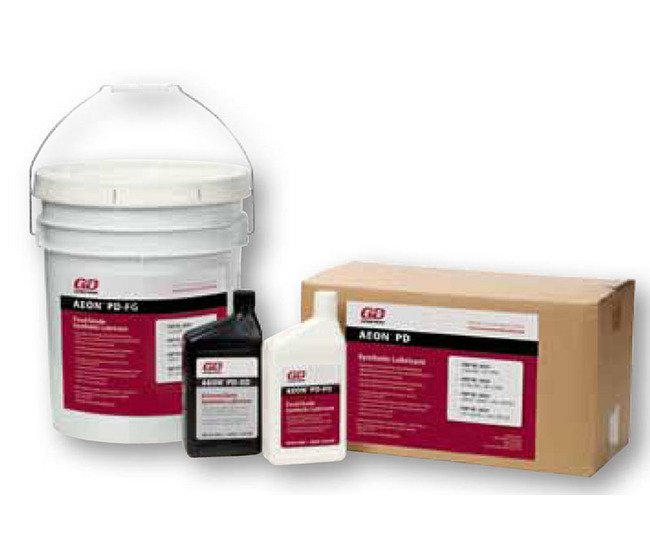

Genuine Gardner Denver Parts And Lubricants
Maintain the Gardner Denver™ performance advantage and reliability with Genuine GD Replacement Parts.Protect your Gardner Denver™ investment with AEON® PD lubricants formulated for all blowers in demanding applications.Now available AEON® PD-XD specifically designed for high ambient and/or high discharge temperature conditions.
High Capacity
Industry unique rotor profile and accurately maintained tolerances allow the CycloBlower® to be operated at high speeds for increased capacity.
High Efficiency For Improved Energy Savings
In many comparable applications, the CycloBlower® operates more efficiently than other straight-lobe blowers. By requiring less brake horsepower, BHP, energy operating costs can be realized and reduced.
Installation Flexibility
Units can be powered by various types of drives including electric motors, constant or variable, gasoline and diesel engines, or steam turbines.May be connected through a variable frequency drive (VFD), V-belt, or direct drive.
Low Installation Cost
A special foundation is not required.CycloBlower® requires a minimum of floor space.Remanufactured units available.
Note

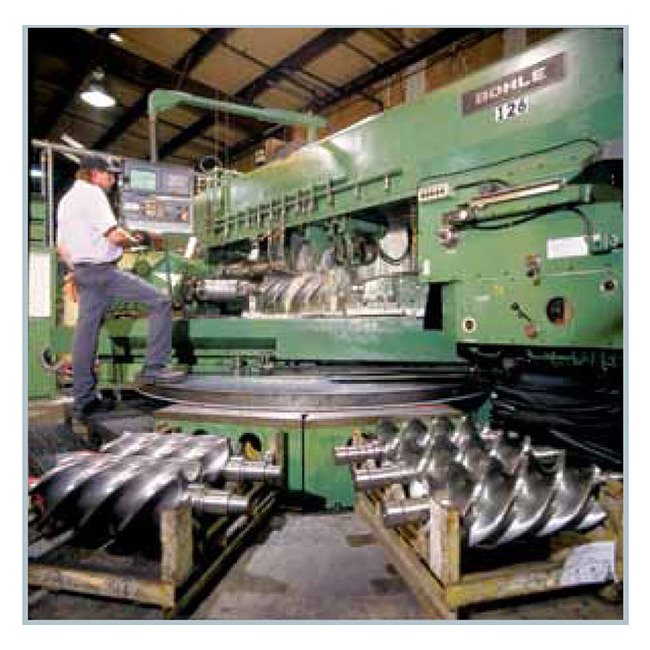

Not standard on 3CDL models.Performance based on inlet air at standard temperature of 68 ºF, an ambient pressure of 14.7 psia and 36% relative humidity.Contact Gardner Denver™ for wet vacuum applications to 24" Hg.CycloBlower® rotors are precision ground using state of the art milling technology.
Performance Data Airflow At 12 Inhg Vacuum And 1500 Rpm Speed
135 ft³/min | 5.3 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2000 Rpm Speed
208 ft³/min | 7.4 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2500 Rpm Speed
284 ft³/min | 9.3 bhp
Performance Data Airflow At 12 Inhg Vacuum And 3000 Rpm Speed
358 ft³/min | 11.2 bhp
Performance Data Airflow At 12 Inhg Vacuum And 3500 Rpm Speed
432 ft³/min | 13.2 bhp
Performance Data Airflow At 12 Psig Pressure And 1000 Rpm Speed
53 ft³/min | 6.5 bhp
Performance Data Airflow At 12 Psig Pressure And 1500 Rpm Speed
134 ft³/min | 10.5 bhp
Performance Data Airflow At 12 Psig Pressure And 2000 Rpm Speed
188 ft³/min | 14.2 bhp
Performance Data Airflow At 12 Psig Pressure And 2500 Rpm Speed
256 ft³/min | 18.0 bhp
Performance Data Airflow At 12 Psig Pressure And 3000 Rpm Speed
322 ft³/min | 22.0 bhp
Performance Data Airflow At 12 Psig Pressure And 3500 Rpm Speed
388 ft³/min | 25.6 bhp
Performance Data Airflow At 15 Psig Pressure And 1000 Rpm Speed
42 ft³/min | 8.7 bhp
Performance Data Airflow At 15 Psig Pressure And 1500 Rpm Speed
120 ft³/min | 13.1 bhp
Performance Data Airflow At 15 Psig Pressure And 2000 Rpm Speed
175 ft³/min | 17.5 bhp
Performance Data Airflow At 15 Psig Pressure And 2500 Rpm Speed
242 ft³/min | 21.8 bhp
Performance Data Airflow At 15 Psig Pressure And 3000 Rpm Speed
311 ft³/min | 26.3 bhp
Performance Data Airflow At 15 Psig Pressure And 3500 Rpm Speed
378 ft³/min | 30.6 bhp
Performance Data Airflow At 16 Inhg Vacuum And 2000 Rpm Speed
188 ft³/min | 9.4 bhp
Performance Data Airflow At 16 Inhg Vacuum And 2500 Rpm Speed
262 ft³/min | 12.0 bhp
