Gardner Denver™ 5HP Two-Stage Oil-Less Air Compressor - Duplex Mount
Gardner Denver™ 5HP Two-Stage Oil-Less Air Compressor - Duplex Mount
SKU:OIL-c32193
Upgrade to Gardner Denver™ 5HP Oil-Less Air Compressor for purity & reliability.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Gardner Denver™ 5HP Two-Stage Oil-Less Air Compressor - Duplex Mount
$8,999.99
Quantity: 1
Claim Your Seller Account
Gardner Denver™ 5HP Two-Stage Oil-Less Air Compressor - Duplex Mount
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gardner Denver™ 5HP Two-Stage Oil-Less Air Compressor offers unparalleled reliability and efficiency for medical facilities, research labs, and industrial applications. With a 120-gallon tank, VTR pump, and 32.2 ft³/min air delivery, this compressor meets NFPA99 standards and is Energy Star certified. Featuring a totally dry crankcase, nickel-plated cast-iron cylinders, and 100% duty cycle operation, it ensures clean, oil-free air for critical operations. Customizable with optional features like automatic tank drain and vibro-isolators, this compressor sets the industry standard.
Product Specifications
Clean Compressed Air
Gardner Denver™ has always been at the forefront of air compressor technology. Gardner Denver™'s PureAir Series Oil-Less compressors are no exception. We offer 100% duty cycle, sealed anti-friction bearings and filled PTFE rings.Gardner Denver™'s continuing program of product research and development assures that your Gardner Denver™ compressor includes the latest advancements in oil-less technology. We can design and build a system that meets your demand.
Gardner Denver Meets The Need
The need was already there: Find a reliable way to completely eliminate any oil getting from the compressor into the delivered air stream. Gardner Denver™ met the challenge by applying new technology, new materials and new manufacturing techniques to our compressor design. Internal moving parts in the Gardner Denver™ oil-less design are protected from wear without conventional lubrication. Crankshaft and rod bearings are lubricated by exclusive sealed, solid synthetic lubricants. Pistons move on alloyed heat-resistant filled PTFE guide and compression rings. The result is low maintenance, high durability and pure, oil-Less air!
Heart Of A Thoroughbredcompare These Features Unmatched In The I
Plated valve plates and reeds of highest grade Swedish steel extend operating life and durability.
New Technology Creates New Applications
With the perfection of oil-Less air technology by Gardner Denver™, new applications are being developed everyday:Medical ComplexesInstrument ManufacturingConsumer UseOzone GenerationChemical ProcessingFood Processing ProductionLaboratoriesResearch FacilitiesWaste Water FacilitiesSteel/Coke ProcessingElectronics ProductionPharmaceuticalGardner Denver™ PureAir Oil-Less compressor units meet NFPA99 standard requirements for medical air compressors.NFPA was created in 1896 as a standards making body. Today, over 66,000 fire safety professionals belong to the NFPA, the world's largest and most influential fire safety organization.NFPA has published almost 300 codes and standards with the mission of preventing the loss of life and property. Topics include fire prevention equipment, extinguishing systems, inspection, residential and commercial dwellings, safety of flammable gases, and the very important National Electrical Code.The concept is simple: No oil in the compressor equals no oil in the air. All oil, even in the crankcase, is eliminated. The unique design of the PureAir Series assures the long life and productivity you've come to expect from Gardner Denver™.
Note
The above applies to Gardner Denver™ manufactured compressor units only.All Units Built to ISO 9001 Standards.
Optional Features
A wide selection of configurations and options allow you to customize the compressor system to your specific needs:Control PanelFusible Disconnect SwitchesAutomatic Tank DrainFlexible Discharge LineVibro-IsolatorsVinyl-Lined or Galvanized ReceiversWater-Cooled AftercoolerRemote Intake Air Filter/SilencerHigh Temperature Shutdown/Lag Compressor AlarmAir Dryer and By-Pass PipingDownstream Filter Banks and Indicator Gauges

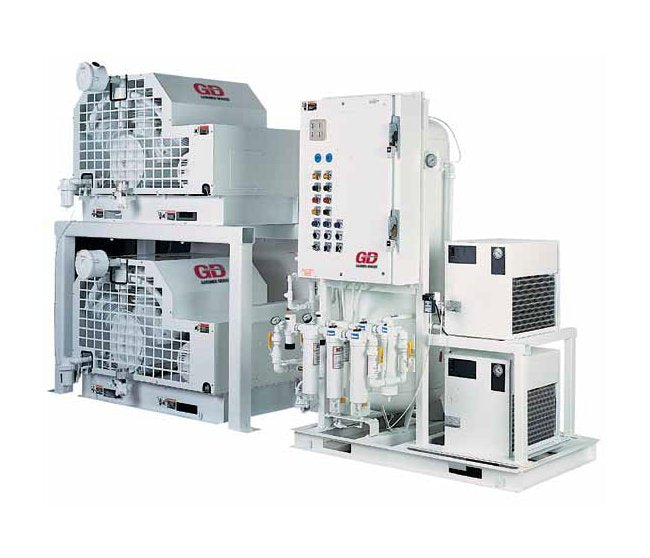

Our Unique Medical Compressor System
Leading Edge Technology Delivered with Responsive Local ServicesFrom air intake to end use, Gardner Denver™ can supply all the components and systems needed for your oil-less compressor application. We’re a complete systems designer, manufacturer, and supplier.When you work with Gardner Denver™, you get the best of both worlds. Utilizing powerful CAD systems, our application engineers will work closely with you to develop specifications and build a system to meet your needs. In turn, all installation and service is handled by locally-based representatives and distributors who are well versed in compressor technology. We maintain a worldwide sales and service network to support this effort.No one else has the experience or scope to design, build and maintain complete air management systems for medical, institutional and industrial use. Count on Gardner Denver™ to be your single source for oil-less air compressor technology.All Gardner Denver™ medical air systems meet current NFPA99 standards for health care facilities. Staying abreast of the changing regulations and requirements for medical compressed air systems is a high priority at Gardner Denver™.We Take a Systems Approach to Your Compressed Air Management NeedsGardner Denver™ understands that your medical facility’s oil-less compressor is part of a more comprehensive air management system. That’s why we supply complete air compressor packages that can include air dryers, specialized filter banks, dew point/ CO monitor, and complete controls.Our approach to medical compressor system design is unique. Rather than offering a single, large system, we offer smaller, multiple-compressor units connected to a single air receiver. This energy-saving design means that you have maximum air delivery only when you need it. You have the flexibility of single unit operation alternating between compressors or multiple compressor operation, depending on air demand.This redundant design assures that you always have a reliable source of compressed air and the small footprint of our oil-less packages saves valuable floor space and allows for easy installation.MonitorsDew point MonitorCO Monitors
Specifications Air Delivery At 125 Psig Pressure
32.2 ft³/min
Specifications Air Delivery At 175 Psig Pressure
31.6 ft³/min
Specifications Bore Diameter
2.56 in | 4.72 in
Specifications Compressor Features
Oil-Less | Two-Stage
Specifications Height
60 1/2 in
Specifications Industry Standardscertifications
Compressed Air and Gas Institute (CAGI) | Compressed Air Challenge™ | Energy Star Partner | ISO 9001:2008
Specifications Length
88 1/4 in
Specifications Motor Power
5 hp
Specifications Mounting
Tank
Specifications Orientation
Horizontal
Specifications Power Source
Electric Motor
Specifications Pump Speed
1000 rpm
Specifications Pump Type
VTR
Specifications Stroke
1.97 in
Specifications Tank Size
120 gal
Specifications Weight
2575 lb
Specifications Width
57 1/4 in
Warranty Ensuring Dependable Performance
From design... to materials selection... to construction, the Gardner Denver™ team strives for perfection. Knowing the critical necessity for an uninterrupted supply of oil-less compressed air, Gardner Denver™’s craftsmen take the extra care needed to ensure trouble-free operation and economical performance. At every step of the manufacturing process, stringent inspection procedures assure accuracy and future dependability. Rigid testing determines if the Gardner Denver™ symbol of excellence can be assigned to the final product. Others have copied, none have equalled, the strict standards established by Gardner Denver™. Though users have little need for the warranty that backs each Gardner Denver™ product, an extended three year warranty is provided.
Warranty Gardner Denver Warranty For Pureair Series Oil Less Com
Gardner Denver™ warrants each new PureAir Series Oil-Less Compressor pump manufactured by Gardner Denver™ to be free from defects in material and workmanship under normal use and service for a period of thirty-six (36) months maximum or specified number of operating hours, whichever may occur first. This applies to the compressor pumps ONLY, excluding head valves which are warranted for the first year only. The unit is warranted for one year after start-up, or eighteen (18) months after shipment, whichever occurs first.
Warranty Hours For Pump Components Compression Rings And Guide R
10000 hours | 3 years
Warranty Hours For Pump Components Crankshaft Bearing Set
20000 hours | 3 years
Warranty Hours For Pump Components Driving Set
10000 hours | 3 years
Warranty Hours For Pump Components Piston Set
10000 hours | 3 years
Warranty Hours For Pump Components Reed Valves
5000 hours | 1 years
