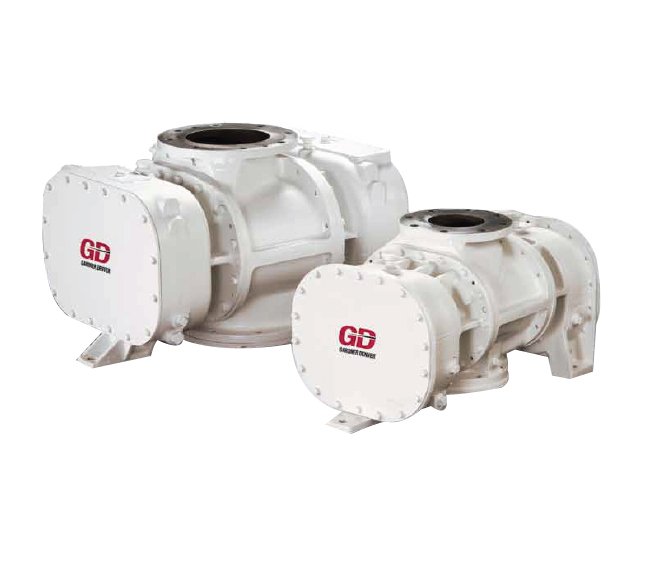

The Gardner Denver™ CycloBlower® Industrial Series Positive Displacement Blower with Vacuum Pump delivers superior efficiency, quality, and durability for industrial applications. With a length of 19 1/4 inches and various speed options, it offers high airflow capacities and precise performance data. Featuring efficient, shock-free compression and dependable quality, this blower ensures clean air delivery with its unique design features. Enjoy low installation costs, high efficiency for energy savings, and flexibility in installation methods. Backed by Gardner Denver™'s quality promise, this blower is engineered to exceed industry standards and provide unmatched service life.
Product Specifications
Clean Airgas Delivery
Contact-less rotors removes the need for lubrication within the compression chamber.Outboard position of rotor bearings allows atmospheric venting between the compression chamber and the bearings and gears.Prevents gear and bearing lubricants from contaminating the compression chamber for clean air/gas delivery.
Delivering Clean Oil Free Air To A Wide Range Of Global Applicat
Aeration | Air Scouring | Digester Gas Boosters | Filter Backwashing | Pond Aeration, Municipal or Industrial | Wastewater Treatment
Dependable Quality
Superior and consistent quality can be found in every CycloBlower® as a result of:Continual investment in the training of world-class manufacturing personnel.Quality inspections throughout the entire manufacturing process.Compact design utilizing optimum performance materials.Reduced vibrations result in longer service of critical blower components.
Dimensions Approximate Weight
237 lb
Dimensions Connection Type
NPT
Dimensions Height
15 1/4 in
Dimensions Length
19 1/4 in
Dimensions Port Size
3 in
Dimensions Port Type
Both
Dimensions Width
15 in
Efficient Shock Free Compression

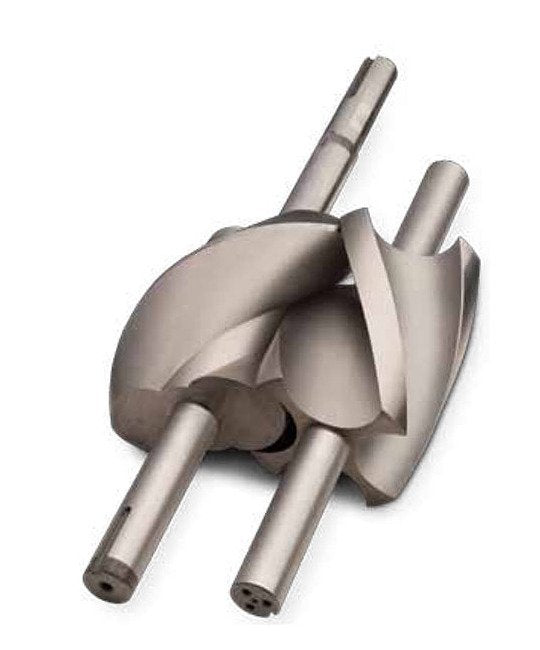

Helical screw rotors generate a balanced compression cycle.Providing a smooth and steady discharge, eliminating the sudden release of trapped pockets of air into the line.Contoured inlet and discharge ports minimize turbulence.
Gardner Denver Redefines The Perception Of Remanufactured
Reman (r¯e man´) n. A Gardner Denver™ positive displacement blower expertly assembled from genuine remanufactured and new parts.Must pass a full-load, hot run test before shipment.Standard new product warranty included.The final word when repair or replacement is required.

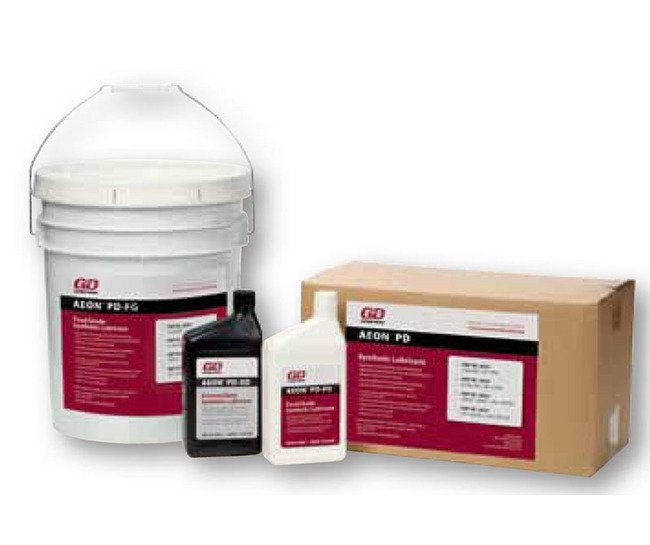

Genuine Gardner Denver Parts And Lubricants
Maintain the Gardner Denver™ performance advantage and reliability with Genuine GD Replacement Parts.Protect your Gardner Denver™ investment with AEON® PD lubricants formulated for all blowers in demanding applications.Now available AEON® PD-XD specifically designed for high ambient and/or high discharge temperature conditions.
High Capacity
Industry unique rotor profile and accurately maintained tolerances allow the CycloBlower® to be operated at high speeds for increased capacity.
High Efficiency For Improved Energy Savings
In many comparable applications, the CycloBlower® operates more efficiently than other straight-lobe blowers. By requiring less brake horsepower, BHP, energy operating costs can be realized and reduced.
Installation Flexibility
Units can be powered by various types of drives including electric motors, constant or variable, gasoline and diesel engines, or steam turbines.May be connected through a variable frequency drive (VFD), V-belt, or direct drive.
Low Installation Cost
A special foundation is not required.CycloBlower® requires a minimum of floor space.Remanufactured units available.
Note

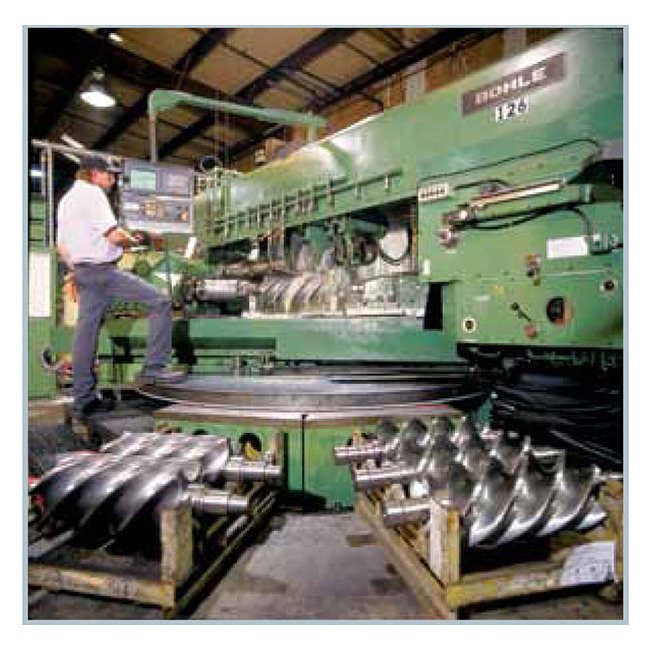

Not standard on A5CDL models.Performance based on inlet air at standard temperature of 68 ºF, an ambient pressure of 14.7 psia and 36% relative humidity.Contact Gardner Denver™ for wet vacuum applications to 24" Hg.CycloBlower® rotors are precision ground using state of the art milling technology.
Performance Data Airflow At 12 Inhg Vacuum And 1500 Rpm Speed
90 ft³/min | 4.1 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2000 Rpm Speed
141 ft³/min | 5.3 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2500 Rpm Speed
193 ft³/min | 6.6 bhp
Performance Data Airflow At 12 Inhg Vacuum And 3000 Rpm Speed
244 ft³/min | 8.1 bhp
Performance Data Airflow At 12 Inhg Vacuum And 3500 Rpm Speed
296 ft³/min | 10.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 4000 Rpm Speed
347 ft³/min | 11.7 bhp
Performance Data Airflow At 12 Psig Pressure And 2000 Rpm Speed
112 ft³/min | 10.0 bhp
Performance Data Airflow At 12 Psig Pressure And 2500 Rpm Speed
159 ft³/min | 13.5 bhp
Performance Data Airflow At 12 Psig Pressure And 3000 Rpm Speed
205 ft³/min | 17.0 bhp
Performance Data Airflow At 12 Psig Pressure And 3500 Rpm Speed
252 ft³/min | 20.2 bhp
Performance Data Airflow At 12 Psig Pressure And 4000 Rpm Speed
198 ft³/min | 24.0 bhp
Performance Data Airflow At 5 Psig Pressure And 1500 Rpm Speed
97 ft³/min | 3.5 bhp
Performance Data Airflow At 5 Psig Pressure And 2000 Rpm Speed
143 ft³/min | 4.5 bhp
Performance Data Airflow At 5 Psig Pressure And 2500 Rpm Speed
190 ft³/min | 6.5 bhp
Performance Data Airflow At 5 Psig Pressure And 3000 Rpm Speed
238 ft³/min | 8.0 bhp
Performance Data Airflow At 5 Psig Pressure And 3500 Rpm Speed
283 ft³/min | 10.1 bhp
Performance Data Airflow At 5 Psig Pressure And 4000 Rpm Speed
330 ft³/min | 12.5 bhp
Performance Data Airflow At 8 Inhg Vacuum And 1000 Rpm Speed
108 ft³/min | 3.0 bhp
Performance Data Airflow At 8 Inhg Vacuum And 1500 Rpm Speed
158 ft³/min | 3.9 bhp
