Gardner Denver™ GD PAK Series 28 Gal Oil-Water Separator
Gardner Denver™ GD PAK Series 28 Gal Oil-Water Separator
SKU:AIR-daea9f
Protect your operation from pollution and legal liabilities with Gardner Denver™ GD PAK 28 Gal Oil-Water Separator.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Gardner Denver™ GD PAK Series 28 Gal Oil-Water Separator
$899.99
Quantity: 1
Claim Your Seller Account
Gardner Denver™ GD PAK Series 28 Gal Oil-Water Separator
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

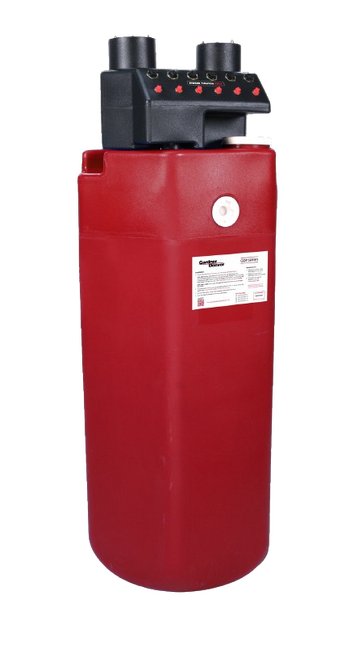

The Gardner Denver™ GD PAK Series 28 Gal Oil-Water Separator is a vital solution for efficient condensate management in compressed air systems. Engineered with an advanced aluminosilicate media bed, it effectively attracts contaminants while repelling water, ensuring no groundwater contamination. The unit requires no additional pumps or filters, simplifying maintenance. With a performance guarantee to reduce contaminants to less than 10 ppm, this separator safeguards against pollution, financial risks, and legal liabilities.
Product Specifications
Advantages
The GD PAK System has been engineered to provide the most effective and user-friendly oil-water separator on the market.The Science Behind the MediaThe aluminosilicate substrate media included within the GD PAK is formulated to attract the contaminants and repel water molecules. When the condensate/lubricant mixture passes through the media bed, the lubricants are actually bonded to the media. This bonding process virtually eliminates any possibility of the used media being able to contaminate ground water at any point in the future.A Beautifully Simple DesignUnlike some of the alternative oil-water separators on the market, GD PAK units have no need for expensive pumps, sensors or pre-separation filters. The media bed does such an effective job that no prefiltration is needed. In addition to the proprietary media, rugged internal piping assures proper operation over the life of the unit.Maintenance and Clean-UpInstead of opening the unit to replace spent media (a very messy process), when the unit is full, simply dispose of it as non-hazardous waste in accordance with local regulations. If no local disposal is available, ship it back to us and replace it with a new unit. This "fill and replace" method will ensure that both you and your compressor room do not end up covered in air compressor lubricant.
Disposal
Once the PAK system is full, disposal couldn't be easier. You can most likely dispose of it through your local waste management service. In the event your local service will not accept the unit, simply call the phone number on your unit to begin the disposal process.
Gpak Plus Manifold
GPAK-PLUSOne time purchase that detaches from GDP base for easy and quick separator replacement.Upgraded Condensate Inlet HubReplace red and black caps with push-to-connect fittings (finger tight ONLY) and insert compression lines. 12 ports in total provide enhanced design flexibility.Carbon-filtered VentPressure is decompressed and vented through two replaceable carbon-filled cartridges, removing VOC's and reducing oil mist from the manifold.On-board Timer DrainSends a burst of air through the unit every 12 hours to prevent the formulation of sludge, 110 V power required.Antimicrobial CavityInsert replaceable antimicrobial pouch to sanitize the discharge hose to mitigate algae growth.Outlet10 ppm or less of filtered condensate exits to sanitary or floor drain.
Lubricant Type
The Intelli-Pak Oil-Water Separator was designed to handle all of the below fluids in addition to silicone.Diester-based lubricantsPAO-based lubricantsGlycol-based lubricantsHydraulic lubricantsFood grade lubricantMineral-based lubricant
Performance Guarantee
GD PAKs, when properly sized and installed, are guaranteed to reduce the contaminants in your compressor condensate to less than 10 ppm for the life of the unit. In the event a unit fails while operating in approved conditions and having been properly sized and installed, Gardner Denver™ will replace the failed GD PAK or provide a refund through your authorized Gardner Denver™ distributor.
Specifications Condensate Handled
All Lubricants
Specifications Condensate Inlet
(6) 1/2 in | (6) 1/4 in
Specifications Height
58 in
Specifications Length
20 in
Specifications Oil Handling Capacity
28 gal
Specifications Outlet Connection Size
3/4 in
Specifications Outlet Connection Type
NPT
Specifications Series
GD PAK
Specifications Shipping Weight
370 Pound
Specifications Total Capacity
84 gal
Specifications Width
22 in
Why Do I Need An Oil Water Separator
The process of compressing air typically produces a substantial amount of condensate that contains air compressor lubricant carryover. Without an oil-water separator in your compressed air system, this condensate/lubricant mixture will go down the drain and quite possibly find its way into the surrounding groundwater. This improper disposal causes three huge issues:PollutionA single 100 HP air compressor can carryover 15 gallons of lubricant per year. Combine that with the fact that a single gallon of lubricant can contaminate 4 acres of groundwater and you start to see the importance of capturing the lubricant before it heads down the drain.Financial ExposureAs you've probably already pieced together, the above issues can lead to a huge payout in fines, negative publicity and clean-up costs. A GD PAK Oil-Water Separator is an investment - or an insurance policy - that will protect your operation from these issues.Legal LiabilityImproperly disposing of this condensate/lubricant mixture is illegal. Depending on your location, the allowable amount of lubricant contamination sent into the sewer can be as low as 10 ppm. The condensate produced by the typical air compressor has between 500 and 5000 ppm of contaminants.
