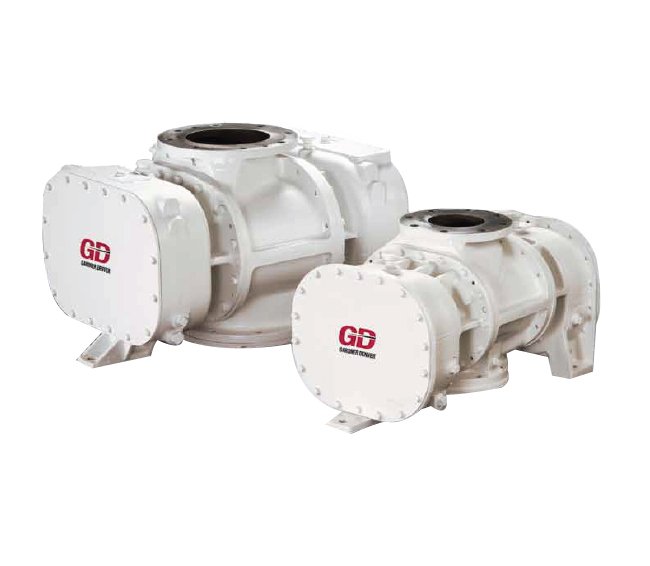

The Gardner Denver 36 1/2 Inch CycloBlower Industrial Series Blower with Vacuum Pump delivers efficiency, quality, and durability. With helical screw rotors for shock-free compression, superior manufacturing quality, and clean air/gas delivery, this blower guarantees high capacity and energy savings. Its unique features like installation flexibility, low installation cost, and high efficiency make it a top choice for industrial applications.
Product Specifications
Clean Airgas Delivery
Contact-less rotors removes the need for lubrication within the compression chamber.Outboard position of rotor bearings allows atmospheric venting between the compression chamber and the bearings and gears.Prevents gear and bearing lubricants from contaminating the compression chamber for clean air/gas delivery.
Delivering Clean Oil Free Air To A Wide Range Of Global Applicat
Aeration | Air Scouring | Digester Gas Boosters | Filter Backwashing | Pond Aeration, Municipal or Industrial | Wastewater Treatment
Dependable Quality

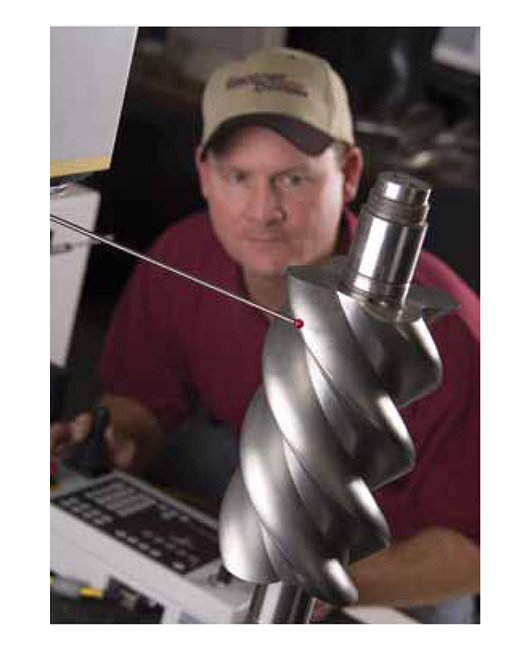

Superior and consistent quality can be found in every CycloBlower® as a result of:Continual investment in the training of world-class manufacturing personnel.Quality inspections throughout the entire manufacturing process.Compact design utilizing optimum performance materials.Reduced vibrations result in longer service of critical blower components.
Dimensions Approximate Weight
867 lb
Dimensions Connection Type
Flanged
Dimensions Height
19 3/4 in
Dimensions Length
36 1/2 in
Dimensions Outer Diameter
13.5 in
Dimensions Port Size
8 in
Dimensions Port Type
Both
Dimensions Width
20 1/2 in
Efficient Shock Free Compression

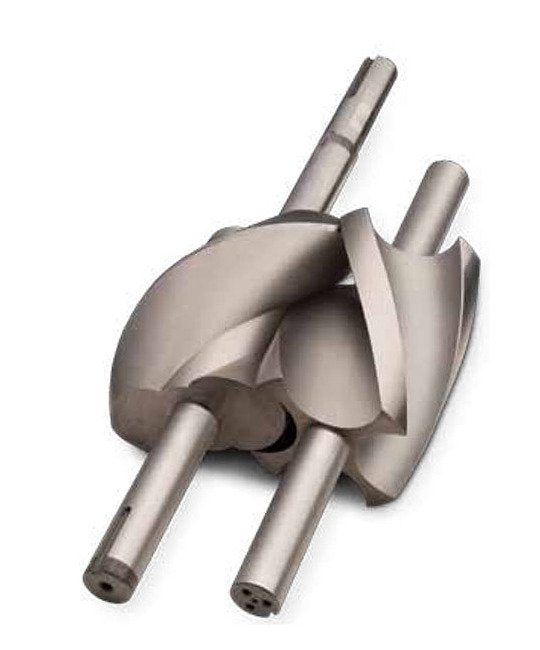

Helical screw rotors generate a balanced compression cycle.Providing a smooth and steady discharge, eliminating the sudden release of trapped pockets of air into the line.Contoured inlet and discharge ports minimize turbulence.
Gardner Denver Redefines The Perception Of Remanufactured
Reman (r¯e man´) n. A Gardner Denver™ positive displacement blower expertly assembled from genuine remanufactured and new parts.Must pass a full-load, hot run test before shipment.Standard new product warranty included.The final word when repair or replacement is required.

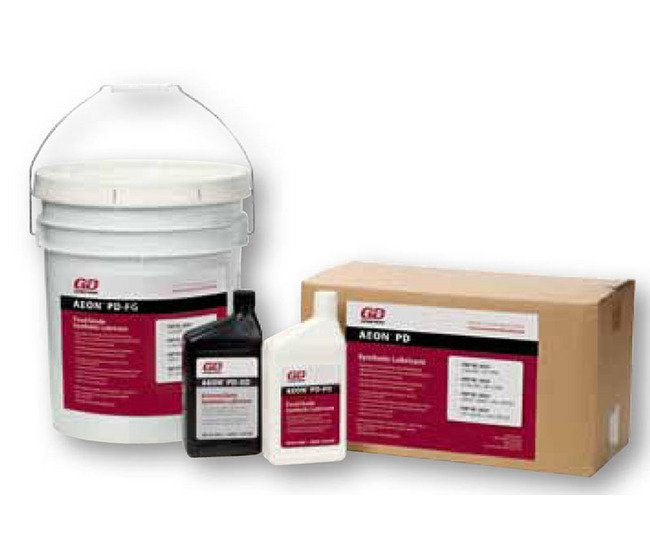

Genuine Gardner Denver Parts And Lubricants
Maintain the Gardner Denver™ performance advantage and reliability with Genuine GD Replacement Parts.Protect your Gardner Denver™ investment with AEON® PD lubricants formulated for all blowers in demanding applications.Now available AEON® PD-XD specifically designed for high ambient and/or high discharge temperature conditions.
High Capacity
Industry unique rotor profile and accurately maintained tolerances allow the CycloBlower® to be operated at high speeds for increased capacity.
High Efficiency For Improved Energy Savings
In many comparable applications, the CycloBlower® operates more efficiently than other straight-lobe blowers. By requiring less brake horsepower, BHP, energy operating costs can be realized and reduced.
Installation Flexibility
Units can be powered by various types of drives including electric motors, constant or variable, gasoline and diesel engines, or steam turbines.May be connected through a variable frequency drive (VFD), V-belt, or direct drive.
Low Installation Cost
A special foundation is not required.CycloBlower® requires a minimum of floor space.Remanufactured units available.
Note

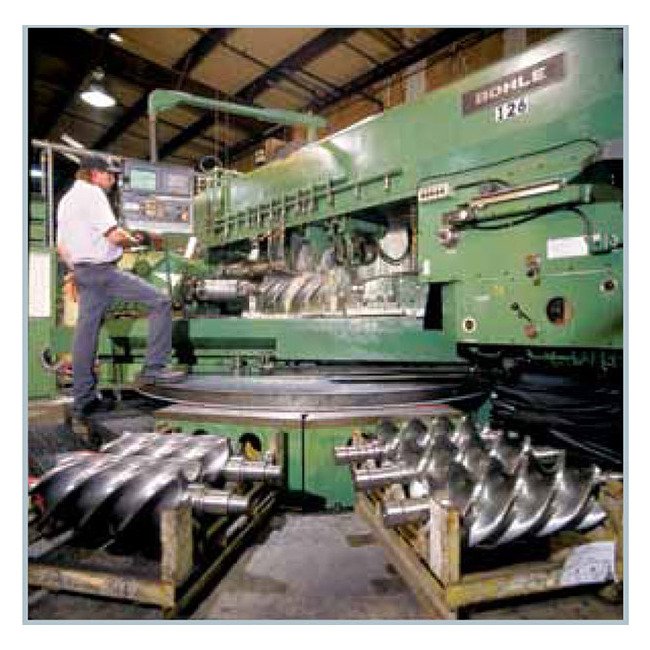

Performance based on inlet air at standard temperature of 68 ºF, an ambient pressure of 14.7 psia and 36% relative humidity.Contact Gardner Denver™ for wet vacuum applications to 24" Hg.CycloBlower® rotors are precision ground using state of the art milling technology.
Performance Data Airflow At 12 Inhg Vacuum And 1100 Rpm Speed
275 ft³/min | 12.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 1600 Rpm Speed
495 ft³/min | 18.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2100 Rpm Speed
720 ft³/min | 24.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2600 Rpm Speed
940 ft³/min | 30.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 3100 Rpm Speed
1165 ft³/min | 36.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 3600 Rpm Speed
1385 ft³/min | 43.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 4000 Rpm Speed
1567 ft³/min | 48.3 bhp
Performance Data Airflow At 12 Psig Pressure And 1100 Rpm Speed
240 ft³/min | 25.0 bhp
Performance Data Airflow At 12 Psig Pressure And 1600 Rpm Speed
455 ft³/min | 37.0 bhp
Performance Data Airflow At 12 Psig Pressure And 2100 Rpm Speed
670 ft³/min | 49.0 bhp
Performance Data Airflow At 12 Psig Pressure And 2600 Rpm Speed
890 ft³/min | 61.0 bhp
Performance Data Airflow At 12 Psig Pressure And 3100 Rpm Speed
1110 ft³/min | 75.0 bhp
Performance Data Airflow At 12 Psig Pressure And 3600 Rpm Speed
1325 ft³/min | 89.0 bhp
Performance Data Airflow At 12 Psig Pressure And 4000 Rpm Speed
1507 ft³/min | 100.0 bhp
Performance Data Airflow At 15 Psig Pressure And 2100 Rpm Speed
640 ft³/min | 59.0 bhp
Performance Data Airflow At 15 Psig Pressure And 2600 Rpm Speed
855 ft³/min | 75.0 bhp
Performance Data Airflow At 15 Psig Pressure And 3100 Rpm Speed
1080 ft³/min | 91.0 bhp
Performance Data Airflow At 15 Psig Pressure And 3600 Rpm Speed
1290 ft³/min | 108.0 bhp
