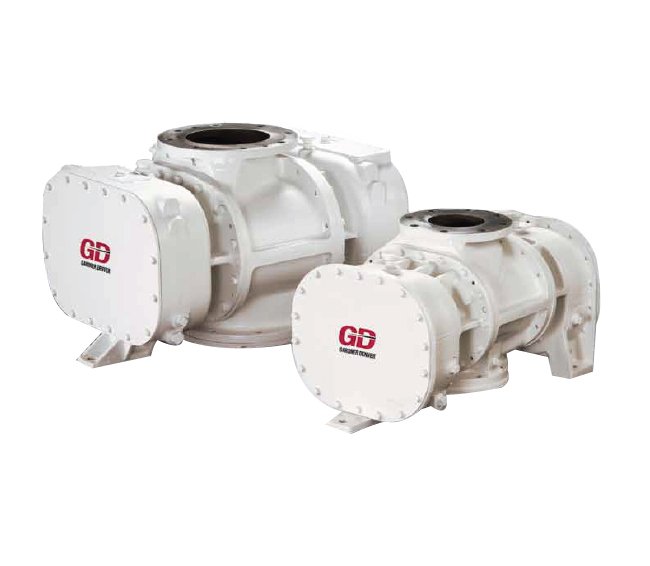

Gardner Denver 42 1/2" CycloBlower Industrial Series Blower with Vacuum Pump
Gardner Denver 42 1/2" CycloBlower Industrial Series Blower with Vacuum Pump
SKU:BLO-4c7a51
High-capacity Gardner Denver 42 1/2" CycloBlower Industrial Series Blower with Vacuum Pump for efficient and reliable industrial performance.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Gardner Denver 42 1/2" CycloBlower Industrial Series Blower with Vacuum Pump
$6,999.99
Quantity: 1
Claim Your Seller Account
Gardner Denver 42 1/2" CycloBlower Industrial Series Blower with Vacuum Pump
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gardner Denver 42 1/2" CycloBlower Industrial Series Positive Displacement Blower with Vacuum Pump is a top-tier solution for industrial applications. With a focus on efficiency, durability, and quality, this blower offers shock-free compression, clean air delivery, and high capacity operation. Its installation flexibility, low cost, and high efficiency make it a cost-effective choice for institutions seeking reliable performance. Gardner Denver's commitment to quality ensures that this blower meets and exceeds industry standards, providing a dependable and efficient solution for various applications.
Product Specifications
Clean Airgas Delivery
Contact-less rotors removes the need for lubrication within the compression chamber.Outboard position of rotor bearings allows atmospheric venting between the compression chamber and the bearings and gears.Prevents gear and bearing lubricants from contaminating the compression chamber for clean air/gas delivery.
Delivering Clean Oil Free Air To A Wide Range Of Global Applicat
Aeration | Air Scouring | Digester Gas Boosters | Filter Backwashing | Pond Aeration, Municipal or Industrial | Wastewater Treatment
Dependable Quality
Superior and consistent quality can be found in every CycloBlower® as a result of:Continual investment in the training of world-class manufacturing personnel.Quality inspections throughout the entire manufacturing process.Compact design utilizing optimum performance materials.Reduced vibrations result in longer service of critical blower components.
Dimensions Approximate Weight
1016 lb
Dimensions Connection Type
Flanged
Dimensions Height
19 3/4 in
Dimensions Length
42 1/2 in
Dimensions Outer Diameter
13.5 in
Dimensions Port Size
8 in
Dimensions Port Type
Both
Dimensions Width
20 1/2 in
Efficient Shock Free Compression

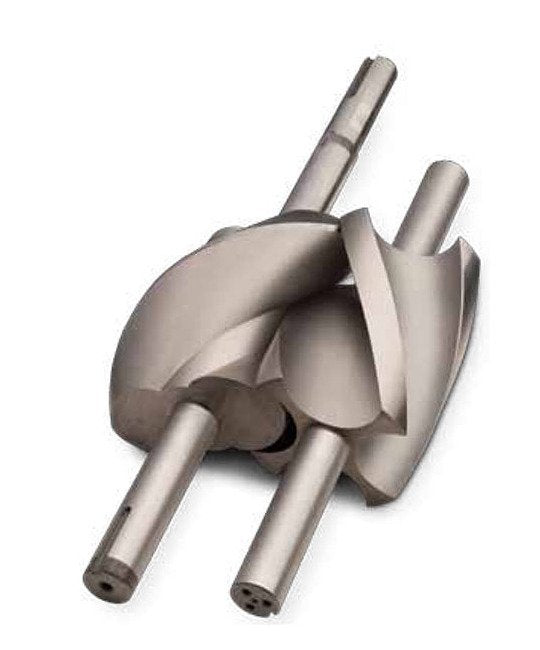

Helical screw rotors generate a balanced compression cycle.Providing a smooth and steady discharge, eliminating the sudden release of trapped pockets of air into the line.Contoured inlet and discharge ports minimize turbulence.
Gardner Denver Redefines The Perception Of Remanufactured
Reman (r¯e man´) n. A Gardner Denver™ positive displacement blower expertly assembled from genuine remanufactured and new parts.Must pass a full-load, hot run test before shipment.Standard new product warranty included.The final word when repair or replacement is required.

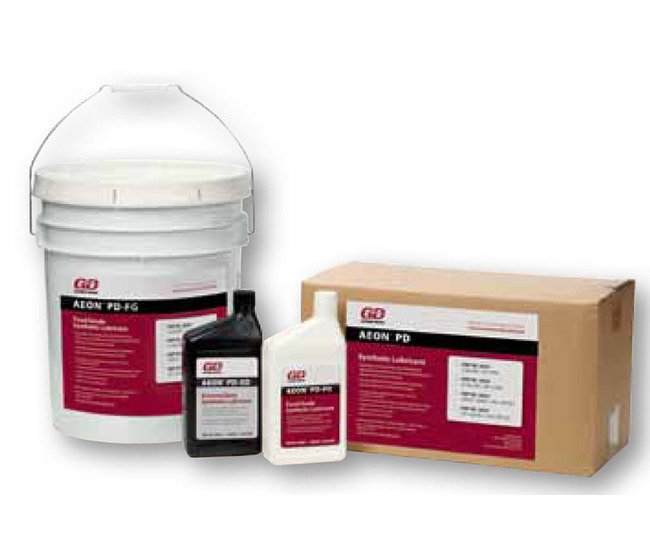

Genuine Gardner Denver Parts And Lubricants
Maintain the Gardner Denver™ performance advantage and reliability with Genuine GD Replacement Parts.Protect your Gardner Denver™ investment with AEON® PD lubricants formulated for all blowers in demanding applications.Now available AEON® PD-XD specifically designed for high ambient and/or high discharge temperature conditions.
High Capacity
Industry unique rotor profile and accurately maintained tolerances allow the CycloBlower® to be operated at high speeds for increased capacity.
High Efficiency For Improved Energy Savings
In many comparable applications, the CycloBlower® operates more efficiently than other straight-lobe blowers. By requiring less brake horsepower, BHP, energy operating costs can be realized and reduced.
Installation Flexibility
Units can be powered by various types of drives including electric motors, constant or variable, gasoline and diesel engines, or steam turbines.May be connected through a variable frequency drive (VFD), V-belt, or direct drive.
Low Installation Cost
A special foundation is not required.CycloBlower® requires a minimum of floor space.Remanufactured units available.
Note

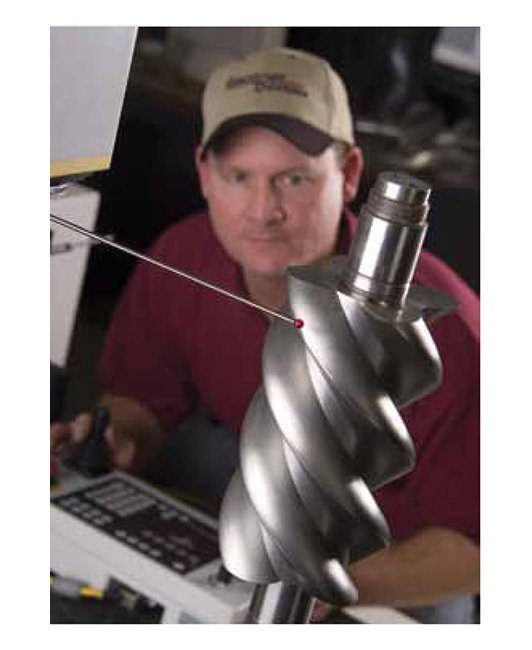

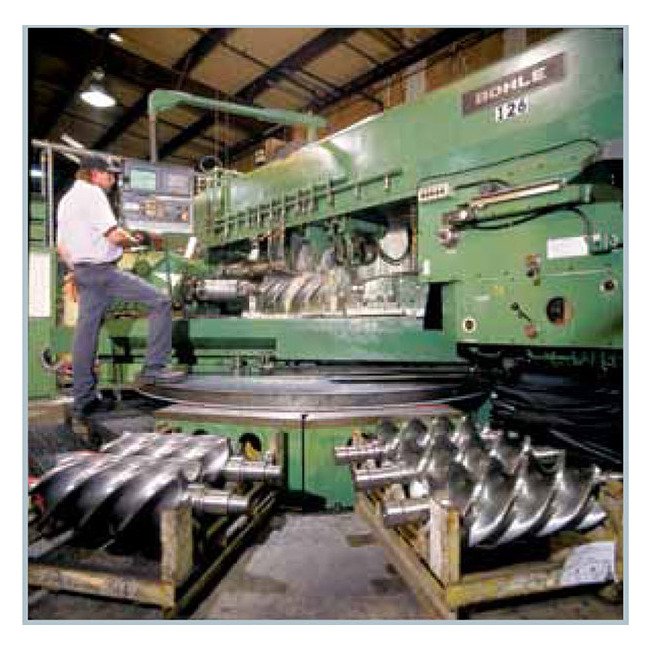

Performance based on inlet air at standard temperature of 68 ºF, an ambient pressure of 14.7 psia and 36% relative humidity.Contact Gardner Denver™ for wet vacuum applications to 24" Hg.CycloBlower® rotors are precision ground using state of the art milling technology.
Performance Data Airflow At 12 Inhg Vacuum And 1100 Rpm Speed
450 ft³/min | 16.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 1600 Rpm Speed
800 ft³/min | 24.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2100 Rpm Speed
1160 ft³/min | 32.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2600 Rpm Speed
1520 ft³/min | 41.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 3100 Rpm Speed
1875 ft³/min | 50.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 3600 Rpm Speed
2250 ft³/min | 60.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 4000 Rpm Speed
2509 ft³/min | 69.8 bhp
Performance Data Airflow At 12 Psig Pressure And 1100 Rpm Speed
370 ft³/min | 30.0 bhp
Performance Data Airflow At 12 Psig Pressure And 1600 Rpm Speed
695 ft³/min | 48.0 bhp
Performance Data Airflow At 12 Psig Pressure And 2100 Rpm Speed
1025 ft³/min | 68.0 bhp
Performance Data Airflow At 12 Psig Pressure And 2600 Rpm Speed
1355 ft³/min | 86.0 bhp
Performance Data Airflow At 12 Psig Pressure And 3100 Rpm Speed
1690 ft³/min | 105.0 bhp
Performance Data Airflow At 12 Psig Pressure And 3600 Rpm Speed
2025 ft³/min | 124.0 bhp
Performance Data Airflow At 12 Psig Pressure And 4000 Rpm Speed
2287 ft³/min | 136.5 bhp
Performance Data Airflow At 15 Psig Pressure And 2100 Rpm Speed
985 ft³/min | 84.0 bhp
Performance Data Airflow At 15 Psig Pressure And 2600 Rpm Speed
1320 ft³/min | 106.0 bhp
Performance Data Airflow At 15 Psig Pressure And 3100 Rpm Speed
1650 ft³/min | 128.0 bhp
Performance Data Airflow At 15 Psig Pressure And 3600 Rpm Speed
1990 ft³/min | 152.0 bhp
