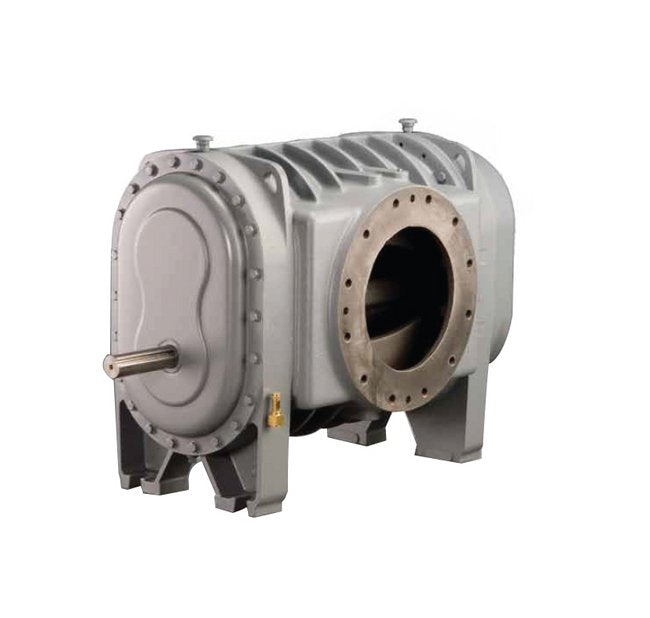

The Gardner Denver 4500 Series Model 615 Blower with Vacuum Pump sets the industry standard with its compact, heavy-duty construction and advanced design features. Manufactured under stringent ISO 9001:2008 quality standards, this blower/vacuum pump ensures continuous duty service, simplified maintenance, and superior performance. With noise reduction technology, dual-splash lubrication, and genuine Gardner Denver™ replacement parts, this machine delivers exceptional reliability and longevity, making it a preferred choice for various industrial applications.
Product Specifications
4500 Series Design Features
Rated for continuous duty in all industrial applications.Provides longer life, simplified maintenance and reduced service intervals.Permits higher speeds and performance ratings.
4500 Series Performance Range Delivers 4500 Series Performance R
Continuous duty service.Mechanical seals are available for gas service applications.
4500 Series Performance Range Delivers Discharge Temperatures
Up to 325 ºF
4500 Series Performance Range Delivers Pressure
Up to 15 psig
4500 Series Performance Range Delivers Vacuum
Up to ≥ 16 Hg
Additional Information
The 4500 Series cycleWith every rotation of the blower drive shaft, two lobe impellers turn in opposite directions transferring a constant volume of air or gas from inlet to discharge.
Bearings
Anti-friction bearings are locked against shoulders on both impeller shafts at gear end.These bearings maintain factory-set clearances between head-plates and impellers.Bearings are sized so the drive shaft may be direct or belt driven.

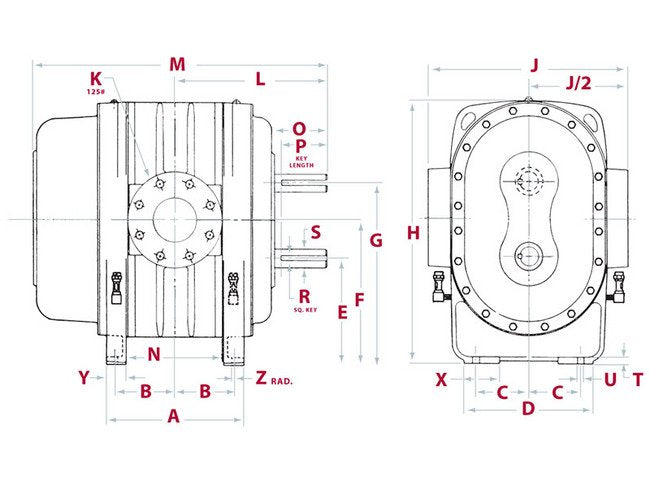

Horizontal Configurations Approximate Weight Horizontal
680 lb
Horizontal Configurations A Horizontal
19 in
Horizontal Configurations B Horizontal
8 13/16 in
Horizontal Configurations C Horizontal
6 in
Horizontal Configurations D Horizontal
14 3/4 in
Horizontal Configurations F Horizontal
9 in
Horizontal Configurations G Horizontal
18 in
Horizontal Configurations H Horizontal
18 in
Horizontal Configurations J2 Horizontal
9 1/4 in
Horizontal Configurations J Horizontal
18 1/2 in
Horizontal Configurations K Horizontal
8 in
Horizontal Configurations L Horizontal
16 1/4 in
Horizontal Configurations M Horizontal
30 5/8 in
Horizontal Configurations N Horizontal
15 in
Horizontal Configurations O Horizontal
4 1/2 in
Horizontal Configurations P Horizontal
4 1/4 in
Horizontal Configurations R Horizontal
3/8 in
Horizontal Configurations S Horizontal
1 9/16 in
Horizontal Configurations T Horizontal
7/8 in
Horizontal Configurations U Horizontal
3/4 in
Horizontal Configurations V Horizontal
3 in
Horizontal Configurations X Horizontal
3 1/4 in
Horizontal Configurations Y Horizontal
1 7/8 in
Horizontal Configurations Z Horizontal
3/8 in
Industryapplications Application For Aquaculture Industry
Aeration
Industryapplications Application For Cement And Lime Industry
Fluidization and Conveying
Industryapplications Application For Chemical Industry
Vacuum Processing and Conveying
Industryapplications Application For Dairy Industry
Automated Milking
Industryapplications Application For Dry Bulk Hauling Industry
Trailer Unloading and Aeration
Industryapplications Application For Environmental Services Indu
Sewer Cleaning and Portable Restroom Services
Industryapplications Application For Industrial Industry
Material Vacuuming
Industryapplications Application For Power Generation Industry
Fly Ash Conveying and Aeration
