Gardner Denver 4500 Series Model 713 Blower with Vacuum Pump

Gardner Denver 4500 Series Model 713 Blower with Vacuum Pump

BLO-07c580

Power your operations with the Gardner Denver 4500 Series Model 713 Blower - an industrial stalwart delivering superior performance.

$8,999.99
$8,999.99
Sale

Initiate Order

Gardner Denver 4500 Series Model 713 Blower with Vacuum Pump

Gardner Denver 4500 Series Model 713 Blower with Vacuum Pump

$8,999.99

Quantity: 1

Claim Your Seller Account

Gardner Denver 4500 Series Model 713 Blower with Vacuum Pump

Gardner Denver 4500 Series Model 713 Blower with Vacuum Pump

$8,999.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

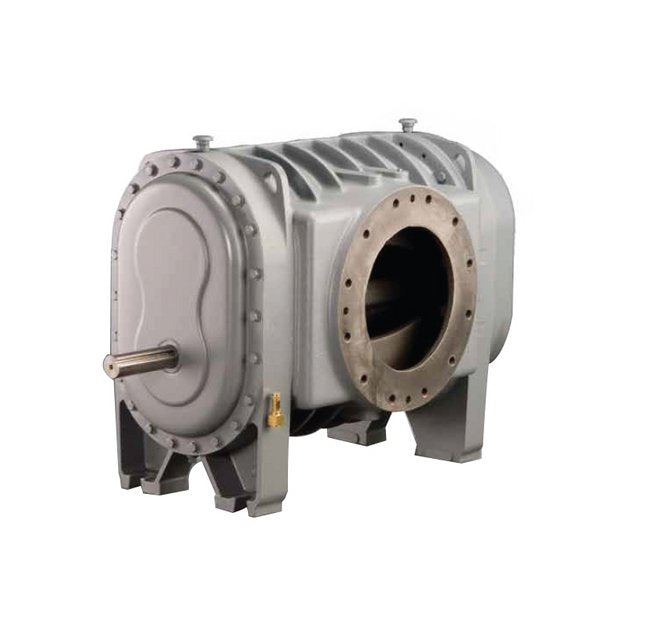

Meet the Gardner Denver™ 4500 Series Model 713 Positive Displacement Blower with Vacuum Pump, a powerhouse born from over seventy years of industrial expertise. Designed for continuous duty, it offers a robust build with simplified maintenance, reduced service intervals, and noise reduction features. Achieve pressures up to 15 psig and vacuum levels of ≥ 16 Hg, along with temperatures up to 325 ºF. Backed by ISO 9001:2008 standards, it caters to applications in aquaculture, chemical, power generation, and more, making it an ideal choice for institutional buyers seeking durability and performance.

Product Specifications

4500 Series Design Features
Rated for continuous duty in all industrial applications.Provides longer life, simplified maintenance and reduced service intervals.Permits higher speeds and performance ratings.
4500 Series Performance Range Delivers 4500 Series Performance R
Continuous duty service.Mechanical seals are available for gas service applications.
4500 Series Performance Range Delivers Discharge Temperatures
Up to 325 ºF
4500 Series Performance Range Delivers Pressure
Up to 15 psig
4500 Series Performance Range Delivers Vacuum
Up to ≥ 16 Hg
Additional Information
The 4500 Series cycleWith every rotation of the blower drive shaft, two lobe impellers turn in opposite directions transferring a constant volume of air or gas from inlet to discharge.
Bearings
Anti-friction bearings are locked against shoulders on both impeller shafts at gear end.These bearings maintain factory-set clearances between head-plates and impellers.Bearings are sized so the drive shaft may be direct or belt driven.

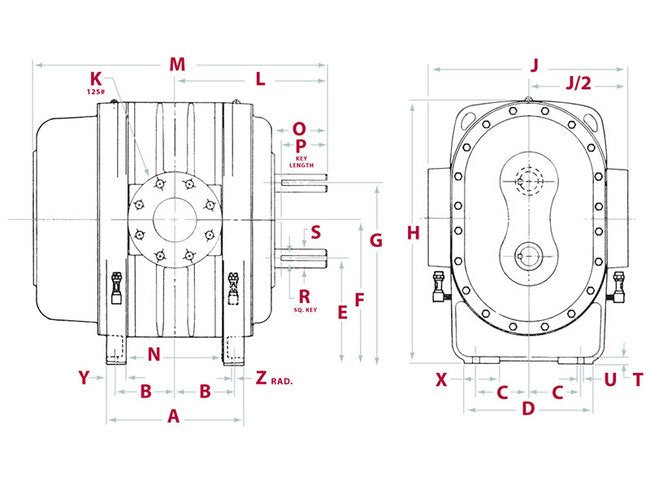

Horizontal Configurations Approximate Weight Horizontal
850 lb
Horizontal Configurations A Horizontal
17 1/4 in
Horizontal Configurations B Horizontal
8 1/16 in
Horizontal Configurations C Horizontal
7 1/2 in
Horizontal Configurations D Horizontal
18 1/4 in
Horizontal Configurations F Horizontal
10 in
Horizontal Configurations G Horizontal
20 in
Horizontal Configurations H Horizontal
20 in
Horizontal Configurations J2 Horizontal
11 in
Horizontal Configurations J Horizontal
22 in
Horizontal Configurations K Horizontal
8 in
Horizontal Configurations L Horizontal
16 3/8 in
Horizontal Configurations M Horizontal
31 5/8 in
Horizontal Configurations N Horizontal
13 in
Horizontal Configurations O Horizontal
4 7/8 in
Horizontal Configurations P Horizontal
4 3/4 in
Horizontal Configurations R Horizontal
3/8 in
Horizontal Configurations S Horizontal
1 3/4 in
Horizontal Configurations T Horizontal
13/16 in
Horizontal Configurations U Horizontal
3/4 in
Horizontal Configurations V Horizontal
3 1/2 in
Horizontal Configurations X Horizontal
3 5/8 in
Horizontal Configurations Y Horizontal
2 in
Horizontal Configurations Z Horizontal
3/8 in
Industryapplications Application For Aquaculture Industry
Aeration
Industryapplications Application For Cement And Lime Industry
Fluidization and Conveying
Industryapplications Application For Chemical Industry
Vacuum Processing and Conveying
Industryapplications Application For Dairy Industry
Automated Milking
Industryapplications Application For Dry Bulk Hauling Industry
Trailer Unloading and Aeration
Industryapplications Application For Environmental Services Indu
Sewer Cleaning and Portable Restroom Services
Industryapplications Application For Industrial Industry
Material Vacuuming
Industryapplications Application For Power Generation Industry
Fly Ash Conveying and Aeration
