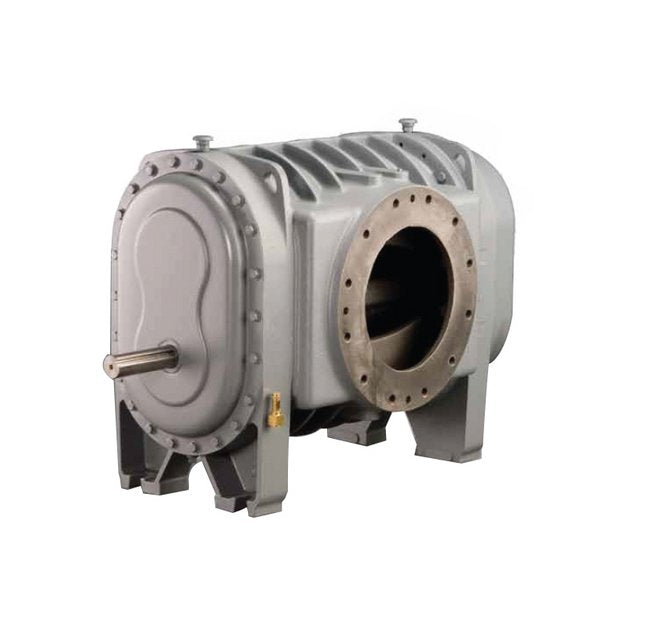

The Gardner Denver 4500 Series Model 820 Blower with Vacuum Pump represents the pinnacle of industrial equipment excellence with over 70 years of expertise. This rotary positive displacement lobe blower provides exceptional performance across various industries, offering continuous duty service, simplified maintenance, and rugged construction for longevity and reliability. With standardized quality certifications like ISO 9001:2008 and compliance with stringent industry regulations, this blower ensures unmatched precision, efficiency, and durability.
Product Specifications
4500 Series Design Features
Rated for continuous duty in all industrial applications.Provides longer life, simplified maintenance and reduced service intervals.Permits higher speeds and performance ratings.
4500 Series Performance Range Delivers 4500 Series Performance R
Continuous duty service.Mechanical seals are available for gas service applications.
4500 Series Performance Range Delivers Discharge Temperatures
Up to 325 ºF
4500 Series Performance Range Delivers Pressure
Up to 15 psig
4500 Series Performance Range Delivers Vacuum
Up to ≥ 16 Hg
Additional Information
The 4500 Series cycleWith every rotation of the blower drive shaft, two lobe impellers turn in opposite directions transferring a constant volume of air or gas from inlet to discharge.
Bearings
Anti-friction bearings are locked against shoulders on both impeller shafts at gear end.These bearings maintain factory-set clearances between head-plates and impellers.Bearings are sized so the drive shaft may be direct or belt driven.

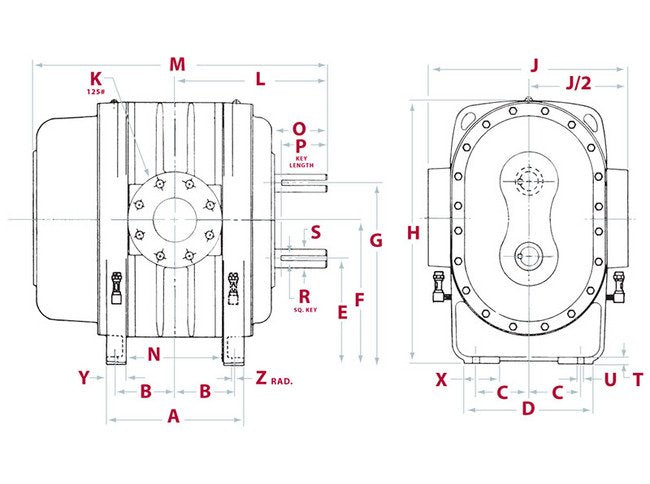

Horizontal Configurations Approximate Weight Horizontal
1370 lb
Horizontal Configurations A Horizontal
26 3/4 in
Horizontal Configurations B Horizontal
12 in
Horizontal Configurations C Horizontal
8 in
Horizontal Configurations D Horizontal
21 1/2 in
Horizontal Configurations E Horizontal
1 1/2 in
Horizontal Configurations F Horizontal
12 1/2 in
Horizontal Configurations G Horizontal
22 in
Horizontal Configurations H Horizontal
23 1/2 in
Horizontal Configurations J2 Horizontal
12 5/8 in
Horizontal Configurations J Horizontal
25 1/4 in
Horizontal Configurations K Horizontal
12 in
Horizontal Configurations L Horizontal
22 1/8 in
Horizontal Configurations M Horizontal
42 in
Horizontal Configurations N Horizontal
20 in
Horizontal Configurations O Horizontal
6 3/4 in
Horizontal Configurations P Horizontal
6 1/2 in
Horizontal Configurations R Horizontal
1/2 in
Horizontal Configurations S Horizontal
1 7/8 in
Horizontal Configurations T Horizontal
1 in
Horizontal Configurations U Horizontal
7/8 in
Horizontal Configurations V Horizontal
4 in
Horizontal Configurations X Horizontal
5 1/4 in
Horizontal Configurations Y Horizontal
3 1/4 in
Horizontal Configurations Z Horizontal
7/16 in
Industryapplications Application For Aquaculture Industry
Aeration
Industryapplications Application For Cement And Lime Industry
Fluidization and Conveying
Industryapplications Application For Chemical Industry
Vacuum Processing and Conveying
Industryapplications Application For Dairy Industry
Automated Milking
Industryapplications Application For Dry Bulk Hauling Industry
Trailer Unloading and Aeration
Industryapplications Application For Environmental Services Indu
Sewer Cleaning and Portable Restroom Services
Industryapplications Application For Power Generation Industry
Fly Ash Conveying and Aeration
