Gardner Denver 53 Inch CycloBlower® Industrial Series Blower/Vacuum Pump
Gardner Denver 53 Inch CycloBlower® Industrial Series Blower/Vacuum Pump
SKU:BLO-b45a3b
Efficient, durable 53" Gardner Denver CycloBlower® Blower/Vacuum Pump for clean, high-capacity air delivery.
Regular price
$25,999.99
Regular price
Sale price
$25,999.99
Unit price
per
Initiate Order
Gardner Denver 53 Inch CycloBlower® Industrial Series Blower/Vacuum Pump
$25,999.99
Quantity: 1
Claim Your Seller Account
Gardner Denver 53 Inch CycloBlower® Industrial Series Blower/Vacuum Pump
$25,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

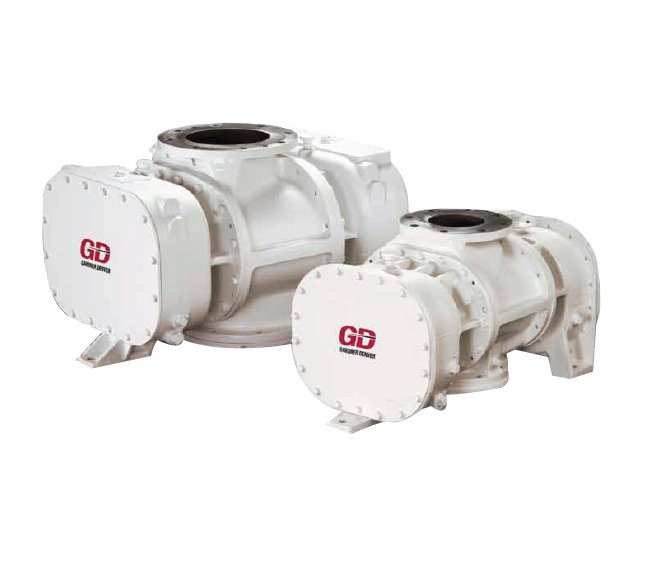

The Gardner Denver™ 53 Inch (in) CycloBlower® Industrial Series Blower/Vacuum Pump delivers exceptional efficiency, quality, and durability. Featuring efficient, shock-free compression with helical screw rotors, dependable quality ensured by world-class manufacturing standards, and high capacity due to its unique rotor profile. It provides clean air/gas delivery through contact-less rotors, installation flexibility with various drive options, and low installation costs. The CycloBlower® is designed for high efficiency, energy savings, and clean, oil-free air delivery, meeting stringent industry standards for reliable performance in diverse applications.
Product Specifications
Clean Airgas Delivery
Contact-less rotors removes the need for lubrication within the compression chamber.Outboard position of rotor bearings allows atmospheric venting between the compression chamber and the bearings and gears.Prevents gear and bearing lubricants from contaminating the compression chamber for clean air/gas delivery.
Delivering Clean Oil Free Air To A Wide Range Of Global Applicat
Aeration | Air Scouring | Digester Gas Boosters | Filter Backwashing | Pond Aeration, Municipal or Industrial | Wastewater Treatment
Dependable Quality
Superior and consistent quality can be found in every CycloBlower® as a result of:Continual investment in the training of world-class manufacturing personnel.Quality inspections throughout the entire manufacturing process.Compact design utilizing optimum performance materials.Reduced vibrations result in longer service of critical blower components.
Dimensions Approximate Weight
3150 lb
Dimensions Discharge Port Connection Type
Flange
Dimensions Discharge Port Outer Diameter
19 in
Dimensions Discharge Port Size
12 in
Dimensions Height
29 in
Dimensions Inlet Port Connection Type
Flange
Dimensions Inlet Port Outer Diameter
21 in
Dimensions Inlet Port Size
14 in
Dimensions Length
53 in
Dimensions Width
33 in

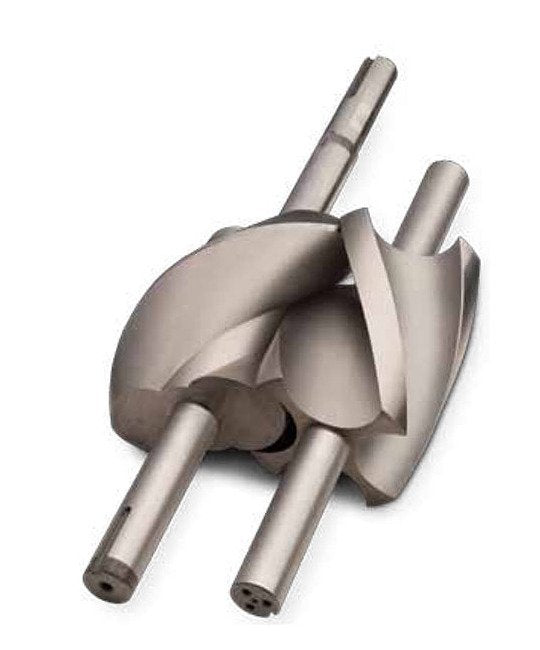

Efficient Shock Free Compression
Helical screw rotors generate a balanced compression cycle.Providing a smooth and steady discharge, eliminating the sudden release of trapped pockets of air into the line.Contoured inlet and discharge ports minimize turbulence.
Gardner Denver Redefines The Perception Of Remanufactured
Reman (r¯e man´) n. A Gardner Denver™ positive displacement blower expertly assembled from genuine remanufactured and new parts.Must pass a full-load, hot run test before shipment.Standard new product warranty included.The final word when repair or replacement is required.

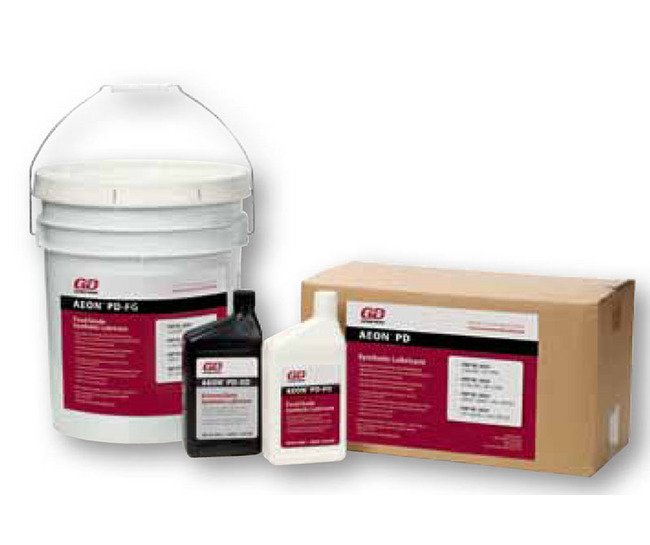

Genuine Gardner Denver Parts And Lubricants
Maintain the Gardner Denver™ performance advantage and reliability with Genuine GD Replacement Parts.Protect your Gardner Denver™ investment with AEON® PD lubricants formulated for all blowers in demanding applications.Now available AEON® PD-XD specifically designed for high ambient and/or high discharge temperature conditions.
High Capacity
Industry unique rotor profile and accurately maintained tolerances allow the CycloBlower® to be operated at high speeds for increased capacity.
High Efficiency For Improved Energy Savings
In many comparable applications, the CycloBlower® operates more efficiently than other straight-lobe blowers. By requiring less brake horsepower, BHP, energy operating costs can be realized and reduced.
Installation Flexibility
Units can be powered by various types of drives including electric motors, constant or variable, gasoline and diesel engines, or steam turbines.May be connected through a variable frequency drive (VFD), V-belt, or direct drive.
Low Installation Cost
A special foundation is not required.CycloBlower® requires a minimum of floor space.Remanufactured units available.
Note

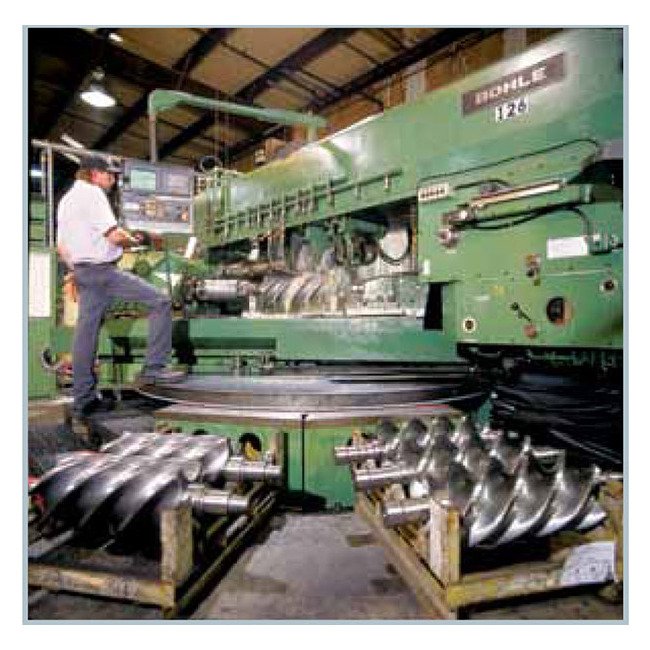

Performance based on inlet air at standard temperature of 68 ºF, an ambient pressure of 14.7 psia and 36% relative humidity.Contact Gardner Denver™ for wet vacuum applications to 24" Hg.CycloBlower® rotors are precision ground using state of the art milling technology.
Performance Data Airflow At 12 Inhg Vacuum And 1100 Rpm Speed
2070 ft³/min | 68.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 1400 Rpm Speed
2800 ft³/min | 92.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 1700 Rpm Speed
3540 ft³/min | 120.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2000 Rpm Speed
4280 ft³/min | 148.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2200 Rpm Speed
4787 ft³/min | 169.3 bhp
Performance Data Airflow At 12 Inhg Vacuum And 4000 Rpm Speed
4787 ft³/min | 169.3 bhp
Performance Data Airflow At 12 Inhg Vacuum And 800 Rpm Speed
1325 ft³/min | 50.0 bhp
Performance Data Airflow At 12 Psig Pressure And 1100 Rpm Speed
2060 ft³/min | 130.0 bhp
Performance Data Airflow At 12 Psig Pressure And 1400 Rpm Speed
2810 ft³/min | 175.0 bhp
Performance Data Airflow At 12 Psig Pressure And 1700 Rpm Speed
3520 ft³/min | 220.0 bhp
Performance Data Airflow At 12 Psig Pressure And 2000 Rpm Speed
4240 ft³/min | 270.0 bhp
Performance Data Airflow At 12 Psig Pressure And 2200 Rpm Speed
4734 ft³/min | 303.1 bhp
Performance Data Airflow At 12 Psig Pressure And 4000 Rpm Speed
4734 ft³/min | 303.1 bhp
Performance Data Airflow At 12 Psig Pressure And 800 Rpm Speed
1380 ft³/min | 100.0 bhp
Performance Data Airflow At 15 Psig Pressure And 1100 Rpm Speed
2000 ft³/min | 160.0 bhp
Performance Data Airflow At 15 Psig Pressure And 1400 Rpm Speed
2700 ft³/min | 215 bhp
