Gardner Denver Apex Total System Rotary Screw Air Compressors
Gardner Denver Apex Total System Rotary Screw Air Compressors
SKU:ROT-7feb4a
Experience peak performance & efficiency with Gardner Denver Apex Total System Air Compressors.
Regular price
$8,199.99
Regular price
Sale price
$8,199.99
Unit price
per
Initiate Order
Gardner Denver Apex Total System Rotary Screw Air Compressors
$8,199.99
Quantity: 1
Claim Your Seller Account
Gardner Denver Apex Total System Rotary Screw Air Compressors
$8,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

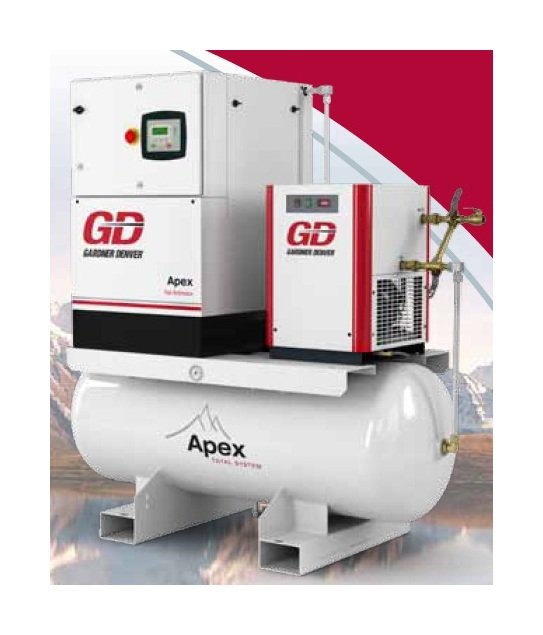

The Gardner Denver Apex Total System Rotary Screw Air Compressors offer unmatched performance and reliability for industrial applications. With a compact design and low sound levels, these compressors provide peak efficiency and ease of maintenance, making them a cost-effective investment for your organization's future. Equipped with a range of standard and optional equipment, including a refrigerated dryer, these compressors are designed to meet the stringent requirements of government and institutional procurement standards.
Product Specifications
Optional Equipment 0
Cold Coalescing Filter (Units with Dryer Only)Communication/Sequencing Module: Sequencing of up to Eight Compressors Remote Monitoring Ready Date and Time Stamping Wye Delta Motor/Starter: 10 & 15 HP only
Specifications Capacity At Rated Pressure
18.5 acfm at 175 psig | 27 acfm at 125 psig | 28 acfm at 110 psig
Specifications Height
43 in
Specifications Height With Dryer
32 in
Specifications Length
27 in
Specifications Length With Drayer
72 in
Specifications Motor Power At 60hz
7.5 hp
Specifications Net Weight
1085 lb
Specifications Net Weight With Dryer
1235 lb
Specifications Noise Level
68 dBA
Specifications Receiver Size
120 gal
Specifications Width
31 in
Specifications Width With Dryer
73 in
Specifications Working Pressure
110 psig | 125 psig | 175 psig
Standard Equipment Base Mounted Unit 0
After Cooler: Radiator-Type Air Hoses: Stainless Steel, Over-Braided Air/Oil Separator: Spin-On Type Belt: V-Belt Belt Adjustment: Jack-Bolt Tensioning Device Control Lines: Corrosion-Resistant Tubing Control Enclosure: UL Type 4 (NEMA 4) Listed Controller: AirSmart™ MicroprocessorAutomatic Start/Stop or Load/Unload Operation Auto Blow-Down With Adjustable Timed Stop Full Text Liquid Crystal Display (LCD) Displays Hourmeter (loaded and total), Discharge Air Temperature, System/Reservoir Pressure Separator Differential Pressure Design Codes: UL/cUL Labeled Electronics - Including Control Panel CSA Labeled and Approved Electrical Controls and Wiring Discharge Pressure Check Valve (Minimum) Enclosure: 16 Gauge Steel, 67–70 dBAInlet Air Filter:99.9% at 5 Micron, Two-Stage, High Eff. Moisture Separator/Trap Motor: TEFC Drive, 1.15 Service Factor, 5 Year Warranty, 3 ph models are EISA Energy Efficient Oil Cooler: Radiator-Type Oil Reservoir: Pressure Relief Valve, CRN Approved Oil Filter: Spin-On Type, 30 Micron, Full Flow Oil Hoses: Stainless Steel, Over-Braided Starter: Mounted and Wired Full-Voltage Starter Thermal Mixing Valve: Thermostatic
Standard Equipment Receiver Mounted Unit 0
Includes All of the Base-Mounted Standard Equipment PLUS: Air Supply Lines: Stainless Steel Condensate Drain: Automatic, Zero Air Loss Fork Lift Slots: Integrated, Enclosed
Standard Equipment Receiver Mounted Unit With Refrigerated Dryer
Includes All of the Base-Mounted and Receiver-Mounted Standard Equipment PLUS: Dryer: Non-Cycling Refrigerated with 38°F dew point. 3-Way Bypass Valve
