Gardner Denver CycloBlower Industrial Series PD Blower with Vacuum Pump
Gardner Denver CycloBlower Industrial Series PD Blower with Vacuum Pump
SKU:BLO-ecfcaf
Efficient Gardner Denver CycloBlower Industrial PD Blower & Vacuum Pump for high-capacity, clean air delivery.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Gardner Denver CycloBlower Industrial Series PD Blower with Vacuum Pump
$8,999.99
Quantity: 1
Claim Your Seller Account
Gardner Denver CycloBlower Industrial Series PD Blower with Vacuum Pump
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

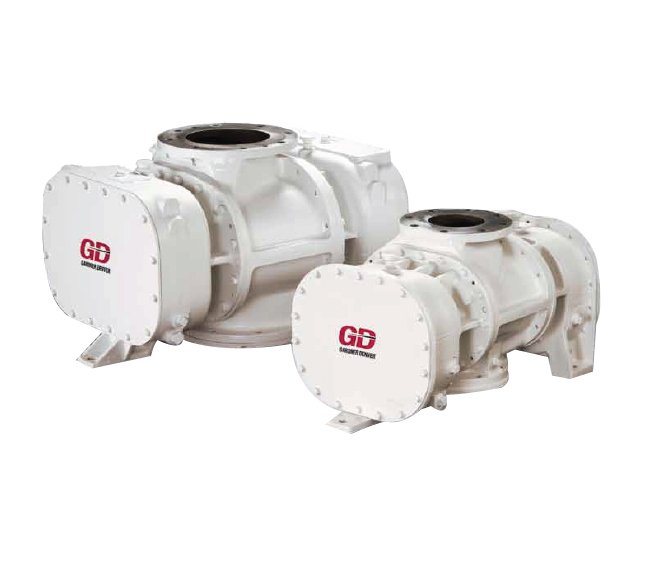

The Gardner Denver CycloBlower Industrial Series PD Blower with Vacuum Pump is a top-tier solution for industrial applications. With helical screw rotors for shock-free compression, it ensures efficient operation and clean air delivery. Offering high capacity and flexible installation options, this blower stands out for its quality construction, low maintenance requirements, and energy-saving efficiency. Gardner Denver's commitment to superior performance is evident through its adherence to ISO 9001:2008 standards and reliance on Genuine GD Replacement Parts and lubricants, making it a reliable choice for a wide range of applications.
Product Specifications
Clean Airgas Delivery
Contact-less rotors removes the need for lubrication within the compression chamber.Outboard position of rotor bearings allows atmospheric venting between the compression chamber and the bearings and gears.Prevents gear and bearing lubricants from contaminating the compression chamber for clean air/gas delivery.
Delivering Clean Oil Free Air To A Wide Range Of Global Applicat
Aeration | Air Scouring | Digester Gas Boosters | Filter Backwashing | Pond Aeration, Municipal or Industrial | Wastewater Treatment
Dependable Quality
Superior and consistent quality can be found in every CycloBlower® as a result of:Continual investment in the training of world-class manufacturing personnel.Quality inspections throughout the entire manufacturing process.Compact design utilizing optimum performance materials.Reduced vibrations result in longer service of critical blower components.
Dimensions Approximate Weight
372 lb
Dimensions Connection Type
Flanged
Dimensions Height
15 1/4 in
Dimensions Length
28 3/4 in
Dimensions Outer Diameter
7.5 in
Dimensions Port Size
3 in
Dimensions Port Type
Both
Dimensions Width
15 in
Efficient Shock Free Compression

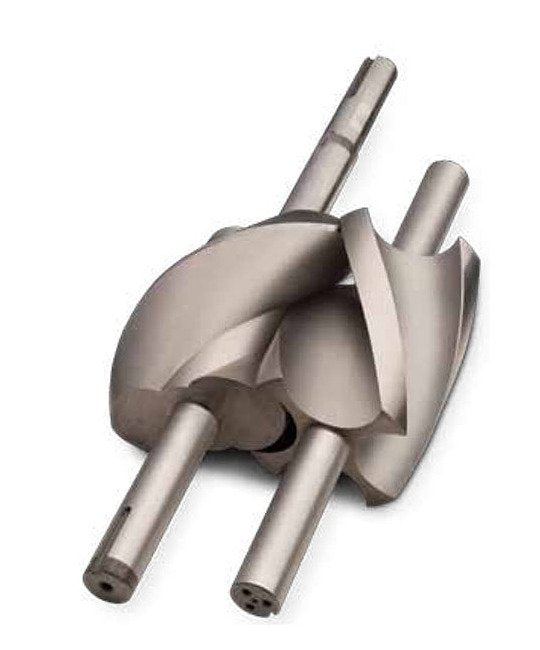

Helical screw rotors generate a balanced compression cycle.Providing a smooth and steady discharge, eliminating the sudden release of trapped pockets of air into the line.Contoured inlet and discharge ports minimize turbulence.
Gardner Denver Redefines The Perception Of Remanufactured
Reman (r¯e man´) n. A Gardner Denver™ positive displacement blower expertly assembled from genuine remanufactured and new parts.Must pass a full-load, hot run test before shipment.Standard new product warranty included.The final word when repair or replacement is required.
Genuine Gardner Denver Parts And Lubricants

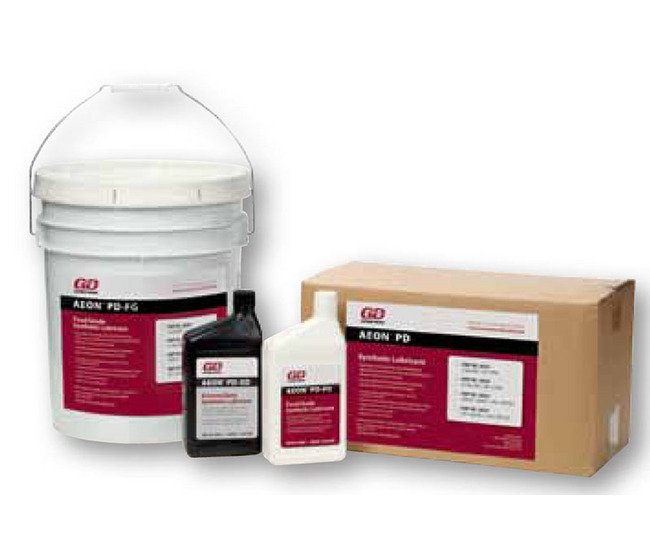

Maintain the Gardner Denver™ performance advantage and reliability with Genuine GD Replacement Parts.Protect your Gardner Denver™ investment with AEON® PD lubricants formulated for all blowers in demanding applications.Now available AEON® PD-XD specifically designed for high ambient and/or high discharge temperature conditions.
High Capacity
Industry unique rotor profile and accurately maintained tolerances allow the CycloBlower® to be operated at high speeds for increased capacity.
High Efficiency For Improved Energy Savings
In many comparable applications, the CycloBlower® operates more efficiently than other straight-lobe blowers. By requiring less brake horsepower, BHP, energy operating costs can be realized and reduced.
Installation Flexibility
Units can be powered by various types of drives including electric motors, constant or variable, gasoline and diesel engines, or steam turbines.May be connected through a variable frequency drive (VFD), V-belt, or direct drive.
Low Installation Cost
A special foundation is not required.CycloBlower® requires a minimum of floor space.Remanufactured units available.
Note

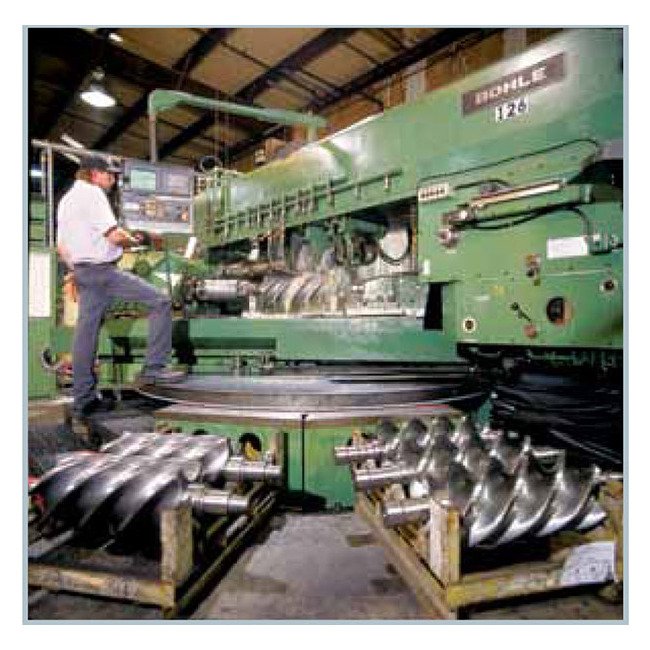

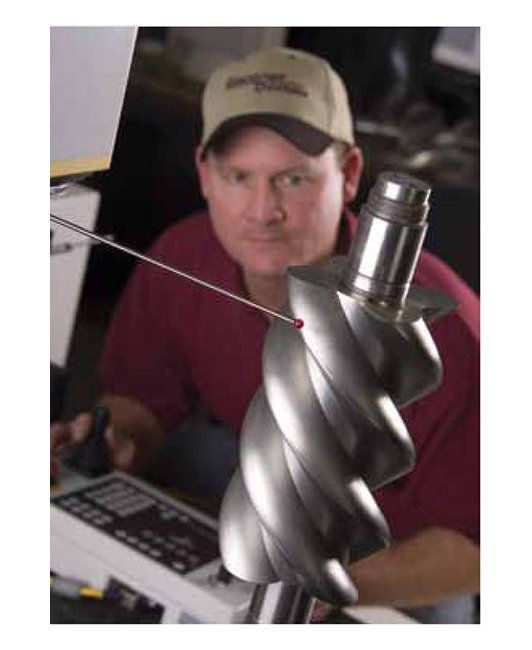

Performance based on inlet air at standard temperature of 68 ºF, an ambient pressure of 14.7 psia and 36% relative humidity.Contact Gardner Denver™ for wet vacuum applications to 24" Hg.CycloBlower® rotors are precision ground using state of the art milling technology.
Performance Data Airflow At 12 Inhg Vacuum And 1500 Rpm Speed
90 ft³/min | 4.1 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2000 Rpm Speed
141 ft³/min | 5.3 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2500 Rpm Speed
193 ft³/min | 6.6 bhp
Performance Data Airflow At 12 Inhg Vacuum And 3000 Rpm Speed
244 ft³/min | 8.1 bhp
Performance Data Airflow At 12 Inhg Vacuum And 3500 Rpm Speed
296 ft³/min | 10.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 4000 Rpm Speed
347 ft³/min | 11.7 bhp
Performance Data Airflow At 12 Inhg Vacuum And 4500 Rpm Speed
398 ft³/min | 13.7 bhp
Performance Data Airflow At 12 Inhg Vacuum And 5000 Rpm Speed
449 ft³/min | 15.8 bhp
Performance Data Airflow At 12 Psig Pressure And 2000 Rpm Speed
112 ft³/min | 10.0 bhp
Performance Data Airflow At 12 Psig Pressure And 2500 Rpm Speed
159 ft³/min | 13.5 bhp
Performance Data Airflow At 12 Psig Pressure And 3000 Rpm Speed
205 ft³/min | 17.0 bhp
Performance Data Airflow At 12 Psig Pressure And 3500 Rpm Speed
252 ft³/min | 20.2 bhp
Performance Data Airflow At 12 Psig Pressure And 4000 Rpm Speed
298 ft³/min | 24.0 bhp
Performance Data Airflow At 12 Psig Pressure And 4500 Rpm Speed
345 ft³/min | 27.6 bhp
Performance Data Airflow At 12 Psig Pressure And 5000 Rpm Speed
392 ft³/min | 31.5 bhp
Performance Data Airflow At 15 Psig Pressure And 2500 Rpm Speed
149 ft³/min | 17.0 bhp
Performance Data Airflow At 15 Psig Pressure And 3000 Rpm Speed
195 ft³/min | 20.8 bhp
Performance Data Airflow At 15 Psig Pressure And 3500 Rpm Speed
240 ft³/min | 24.8 bhp
