Gardner Denver CycloBlower Industrial Series Positive Displacement Blower
Gardner Denver CycloBlower Industrial Series Positive Displacement Blower
SKU:BLO-23753b
Experience 50 years of proven quality and efficiency with Gardner Denver CycloBlower Industrial Series Blower.
Regular price
$3,599.99
Regular price
Sale price
$3,599.99
Unit price
per
Initiate Order
Gardner Denver CycloBlower Industrial Series Positive Displacement Blower
$3,599.99
Quantity: 1
Claim Your Seller Account
Gardner Denver CycloBlower Industrial Series Positive Displacement Blower
$3,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

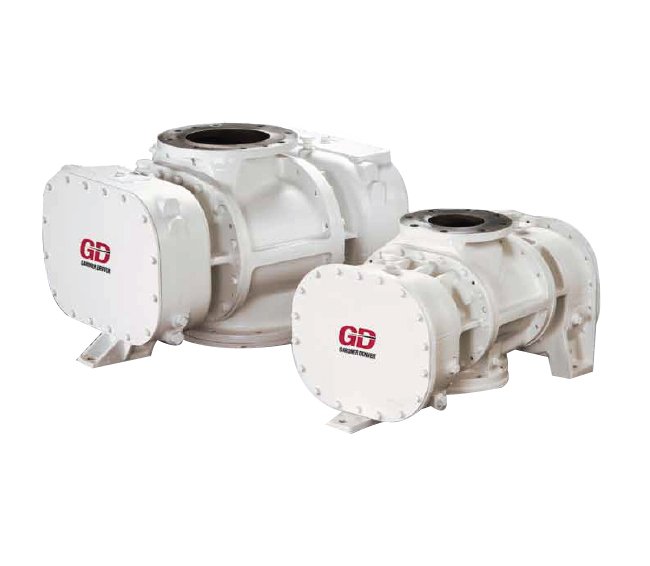

The Gardner Denver CycloBlower Industrial Series Positive Displacement Blower with Vacuum Pump stands out with 50 years of proven efficiency, quality, and durability. Featuring helical screw rotors for shock-free compression, clean air/gas delivery, and industry-leading efficiency for energy savings, this blower offers high capacity, dependable quality, and installation flexibility. With a compact design, the CycloBlower operates at high speeds, delivering clean, oil-free air across various industrial applications. Gardner Denver ensures genuine parts and lubricants coupled with ISO 9001 quality standards, making it a reliable choice across diverse sectors.
Product Specifications
Clean Airgas Delivery
Contact-less rotors removes the need for lubrication within the compression chamber.Outboard position of rotor bearings allows atmospheric venting between the compression chamber and the bearings and gears.Prevents gear and bearing lubricants from contaminating the compression chamber for clean air/gas delivery.
Delivering Clean Oil Free Air To A Wide Range Of Global Applicat
Aeration | Air Scouring | Digester Gas Boosters | Filter Backwashing | Pond Aeration, Municipal or Industrial | Wastewater Treatment
Dependable Quality
Superior and consistent quality can be found in every CycloBlower® as a result of:Continual investment in the training of world-class manufacturing personnel.Quality inspections throughout the entire manufacturing process.Compact design utilizing optimum performance materials.Reduced vibrations result in longer service of critical blower components.
Dimensions Approximate Weight
361 lb
Dimensions Connection Type
Flanged
Dimensions Height
15 1/4 in
Dimensions Length
27 1/4 in
Dimensions Outer Diameter
10 in
Dimensions Port Size
5 in
Dimensions Port Type
Both
Dimensions Width
15 in
Efficient Shock Free Compression

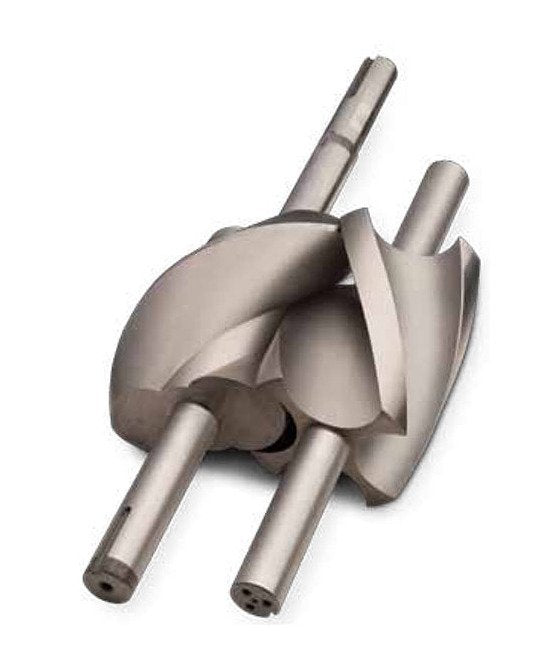

Helical screw rotors generate a balanced compression cycle.Providing a smooth and steady discharge, eliminating the sudden release of trapped pockets of air into the line.Contoured inlet and discharge ports minimize turbulence.
Gardner Denver Redefines The Perception Of Remanufactured
Reman (r¯e man´) n. A Gardner Denver™ positive displacement blower expertly assembled from genuine remanufactured and new parts.Must pass a full-load, hot run test before shipment.Standard new product warranty included.The final word when repair or replacement is required.
Genuine Gardner Denver Parts And Lubricants

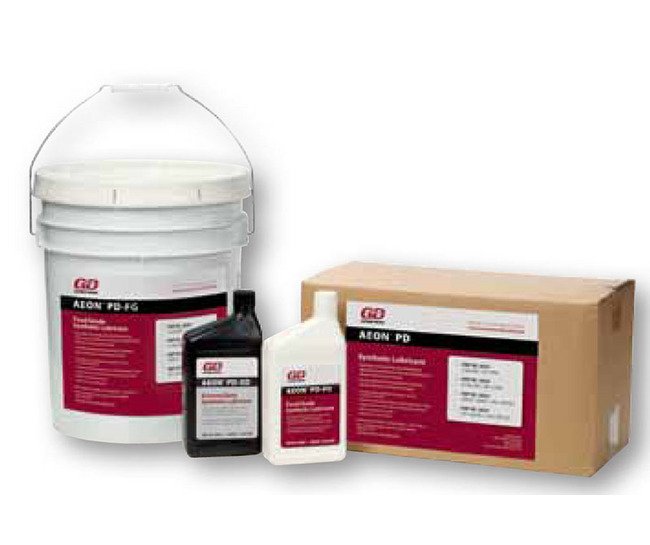

Maintain the Gardner Denver™ performance advantage and reliability with Genuine GD Replacement Parts.Protect your Gardner Denver™ investment with AEON® PD lubricants formulated for all blowers in demanding applications.Now available AEON® PD-XD specifically designed for high ambient and/or high discharge temperature conditions.
High Capacity

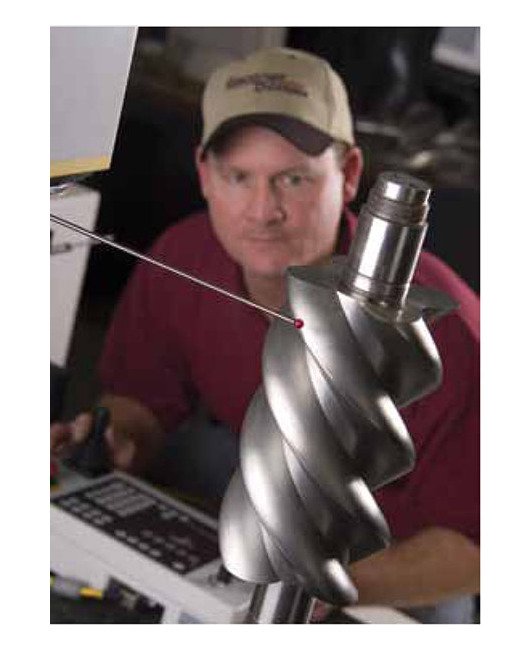

Industry unique rotor profile and accurately maintained tolerances allow the CycloBlower® to be operated at high speeds for increased capacity.
High Efficiency For Improved Energy Savings
In many comparable applications, the CycloBlower® operates more efficiently than other straight-lobe blowers. By requiring less brake horsepower, BHP, energy operating costs can be realized and reduced.
Installation Flexibility
Units can be powered by various types of drives including electric motors, constant or variable, gasoline and diesel engines, or steam turbines.May be connected through a variable frequency drive (VFD), V-belt, or direct drive.
Low Installation Cost
A special foundation is not required.CycloBlower® requires a minimum of floor space.Remanufactured units available.
Note

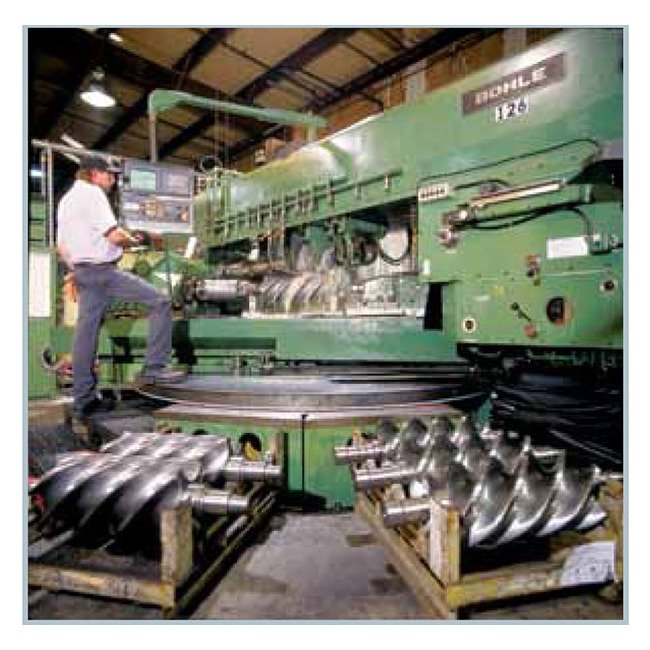

Not standard on A5CDL models.Performance based on inlet air at standard temperature of 68 ºF, an ambient pressure of 14.7 psia and 36% relative humidity.Contact Gardner Denver™ for wet vacuum applications to 24" Hg.CycloBlower® rotors are precision ground using state of the art milling technology.
Performance Data Airflow At 12 Inhg Vacuum And 1500 Rpm Speed
180 ft³/min | 9.0 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2000 Rpm Speed
300 ft³/min | 12.2 bhp
Performance Data Airflow At 12 Inhg Vacuum And 2500 Rpm Speed
422 ft³/min | 15.8 bhp
Performance Data Airflow At 12 Inhg Vacuum And 3000 Rpm Speed
543 ft³/min | 19.2 bhp
Performance Data Airflow At 12 Inhg Vacuum And 3500 Rpm Speed
665 ft³/min | 22.6 bhp
Performance Data Airflow At 12 Inhg Vacuum And 4000 Rpm Speed
785 ft³/min | 26.1 bhp
Performance Data Airflow At 12 Psig Pressure And 1500 Rpm Speed
194 ft³/min | 19.0 bhp
Performance Data Airflow At 12 Psig Pressure And 2000 Rpm Speed
319 ft³/min | 25.5 bhp
Performance Data Airflow At 12 Psig Pressure And 2500 Rpm Speed
444 ft³/min | 32.0 bhp
Performance Data Airflow At 12 Psig Pressure And 3000 Rpm Speed
569 ft³/min | 39.0 bhp
Performance Data Airflow At 12 Psig Pressure And 3500 Rpm Speed
694 ft³/min | 46.5 bhp
Performance Data Airflow At 12 Psig Pressure And 4000 Rpm Speed
819 ft³/min | 54.0 bhp
Performance Data Airflow At 5 Psig Pressure And 1500 Rpm Speed
250 ft³/min | 8.0 bhp
Performance Data Airflow At 5 Psig Pressure And 2000 Rpm Speed
375 ft³/min | 11.5 bhp
Performance Data Airflow At 5 Psig Pressure And 2500 Rpm Speed
500 ft³/min | 15.0 bhp
Performance Data Airflow At 5 Psig Pressure And 3000 Rpm Speed
625 ft³/min | 18.5 bhp
Performance Data Airflow At 5 Psig Pressure And 3500 Rpm Speed
750 ft³/min | 22.2 bhp
Performance Data Airflow At 5 Psig Pressure And 4000 Rpm Speed
875 ft³/min | 27.5 bhp
