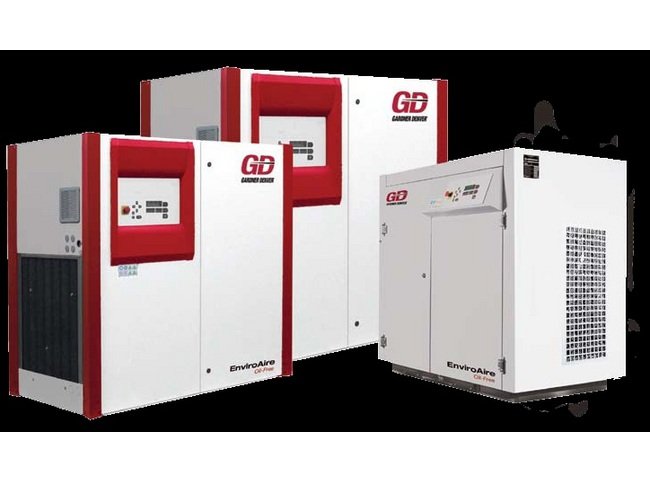

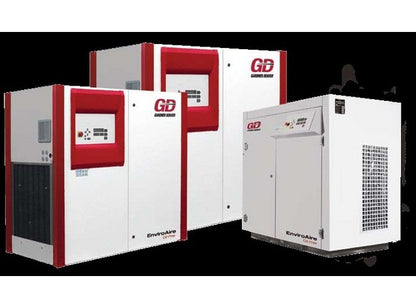

Gardner Denver EnviroAire 22 kW Oil-Less Rotary Screw Air Compressor
Gardner Denver EnviroAire 22 kW Oil-Less Rotary Screw Air Compressor
SKU:ROT-34e48e
Get pure, oil-free air with Gardner Denver's EnviroAire 22 kW Screw Compressor, meeting ISO Class Zero standards for ultimate reliability.
Regular price
$10,999.99
Regular price
Sale price
$10,999.99
Unit price
per
Initiate Order
Gardner Denver EnviroAire 22 kW Oil-Less Rotary Screw Air Compressor
$10,999.99
Quantity: 1
Claim Your Seller Account
Gardner Denver EnviroAire 22 kW Oil-Less Rotary Screw Air Compressor
$10,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gardner Denver EnviroAire 22 kW Oil-Less Rotary Screw Air Compressor is the ultimate solution for industries requiring clean, oil-free compressed air. With a motor power of 22 kW and noise levels as low as 66 dBA, this compressor delivers a minimum working pressure of 73 psig and a maximum free air delivered rate of 121.84 ft³/min. Meeting ISO 8573-1 Class Zero (2010) standards, this compressor offers complete oil-free and silicone-free air for critical applications, ensuring product integrity and operational efficiency. The innovative design, balanced bearing loads, high efficiency water purification system, and comprehensive compressor control make it a reliable, efficient, and environmentally friendly choice.
Product Specifications
Additional Information
In situations where compressed air comes into direct contact with the products being manufactured : for example food and drink, pharmaceuticals, electronics and textiles, Gardner Denver™ compressors have been helping clients meet their quality and production objectives for many years.Ongoing investment in the latest design and manufacturing tools, and rigorous implementation of ISO 9001 approved quality systems, ensure you take delivery of a reliable, high quality product.Factory performance and functional testing guarantee that your compressor will operate and perform perfectly.Increasing pressures, both commercial and legislative, demand lower environmental impact from your business - issues that our oil free compressors meet head on.Reduce the Cost of Ownership and Minimize Your Energy ConsumptionThe largest cost component of a compressor during its lifetime is the power required to operate it.Using a variable speed compressor can easily save 25% energy by using just the right amount of energy required to do the job and no more.Perfect response to your individual air demandVariable speed compressors from Gardner Denver™ can efficiently and reliably handle the varying air demand. The right variable speed compressor in the right application delivers significant energy savings and a stable air supply at constant pressure.
Balanced Bearing Loads
The direct driven air-end offers the highest level of efficiency and reliability. With exceptionally low rotational speeds, the innovative design of the air-end compresses air on both sides of the rotor significantly reducing bearing loads and increasing efficiency.Compression Loads are Balanced Resulting in Low Bearing Loads and High ReliabilityLow bearing loads and low speeds mean sealed-for life bearings can be used, requiring no oil lubrication.
Comprehensive Compressor Control Features And Functions
Compressor StatusLine/Network PressureMotor SpeedReal Time Clock–Allows Pre-Setting of Compressor Starting/StoppingSecond Pressure SettingOn Load Hours/Total Hours RunAuto Restart after Power FailureFault History Log-for In-Depth AnalysisOptional Base Load SequencingIntegrated Cooling and Dryer ControlRemote Control via Programmable Inputs
Comprehensive Compressor Control Gd Pilot Ts
The multilingual GD Pilot TS touch screen control system ensures safe and reliable operation and protects your investment by continuously monitoring the operational parameters - essential for reducing your operating costs.
Designed For Water Injection
Gardner Denver's EnviroAire Series compressors feature durable, twin gate rotors and single stage direct driven compression elementBronze single 6 flute main rotor.Low temperature rise eliminates the need for a final air cooler, which reduces pressure losses.No metal to metal mating parts and low pulsation levels ensure low vibration and noise levels.Carbon fiber composite 11-tooth gate rotors deliver 12 pulses of air per revolution compared with 6 pulses for a convention screw.Sealed grease-lubricated main rotor bearings and water-lubricated gate rotor bearings extend rotor and bearing life.
Designing The Right System Air Dryers
Air dryers are used to improve the quality of air in the system. The quality of air required is typically dependent on the down-stream processes and equipment.Refrigerated air dryers remove moisture from the system by cooling the compressed air. Condensate forms as the air is cooled and the moisture is removed from the system.Desiccant air dryers remove moisture from the air via the absorption process. Typically, a media is used to absorb moisture in compressed air.
Designing The Right System Compressors
The heart of the compressed air system is the air compressor. The type, size and number of compressors depend on the needs of the application. However, all compressors have the same general function: use energy to compress atmospheric air that can then be used to power processes and equipment.
Designing The Right System Condensate Management
One by-product of the air compression process is condensation. Often the water from a compressed air system will contain oil and other contaminates. The condensate management system will aid in separating the water from the other contaminates so water may be discharged down the drain while the contaminates are dealt with appropriately.
Designing The Right System Designing The Right System Informatio
Let Gardner Denver™ Take ControlGardner Denver™'s extensive distributor network is highly trained in the best practices associated with developing a reliable and efficient compressed air system.One-stop shopping with your Gardner Denver™ distributor assures that all components of your system are compatible and backed by on-going customer support.
Designing The Right System Drains
Drains are used to remove liquids from filters, dryers, receivers, piping and compressors. Liquid removal is important to system performance as well as downstream equipment and processes.
Designing The Right System Filtration And Separation
Filters are used to improve the quality of compressed air in your system. Filters are used to remove solid particulate, liquid water aerosols and vapors. Sizing and design of filters are important to system performance and longevity of downstream equipment and processes.
Designing The Right System Flow Control
Flow control valves provide physical separation of the supply and demand portions of the system. Distribution pressure is held tightly at target, regardless of compressor control band, thus eliminating excess waste in leakage and artificial demand. The flow control also manages the release of potential energy in receivers to enhance system stability.
Designing The Right System Keeping The System Healthy
Just as vital as setting up the correct compressed air system is keeping that investment well maintained. By using Gardner Denver™ approved filters and accessories you can make sure the health of your system is maximized.
Designing The Right System Piping
Properly sized, designed and installed piping is critical to system performance. Piping should be designed for minimum pressure drop at maximum flow conditions. Gardner Denver™ features the Quick-Lock and Big-Lock lines of compressed air tubing. In addition to corrosion-resistant aluminum piping, these lines also feature nickel-plated brass fittings that come with a 10 year leak-free guarantee.
Designing The Right System Point Of Use Equipment
Point-of-use solutions are available for special processes and downstream equipment that have unique requirements. These include compressors, dryers, filters, drains and regulators.
Designing The Right System Remote Monitoring
Remote monitoring systems allow a machine to be observed from a remote location by the air compressor owner, the distributor or even the factory. By providing system performance data to the observer, a remote monitoring system ensures that the efficiency and lifespan of the compressed air system is maximized.
Designing The Right System Storage
Compressed air system storage is important to the overall performance of the compressed air system. Storage should take into account normal operating conditions and any large demand events. Air audits are a critical tool for the proper sizing of your system storage.
Designing The Right System System Controllers And Sequencers
For more complex, multi-compressor systems, system controllers and sequencers may be desirable. In addition to giving the user the ability to link multiple machines, system controllers may also add data logging capabilities, remote monitoring and logic to optimize the compressed air system. Sequencers bring machines on and off line to most efficiently match compressed air supply to the demand of the process.
Enviroaire Technical Data Cooling Method
Air | Water
Enviroaire Technical Data Height
63 in
Enviroaire Technical Data Length
53 in
Enviroaire Technical Data Maximum Free Air Delivered Rate
121.84 ft³/min
Enviroaire Technical Data Maximum Working Pressure
145 psig
Enviroaire Technical Data Minimum Free Air Delivered Rate
24 ft³/min
Enviroaire Technical Data Minimum Working Pressure
73 psig
Enviroaire Technical Data Motor Power
22 kW
Enviroaire Technical Data Noise Level 70 Load For Enviroaire 22
66 dBA
Enviroaire Technical Data Weight For Enviroaire 22 Kw Air Coolin
1556 lb
Enviroaire Technical Data Weight For Enviroaire 22 Kw Water Cool
1451 lb
Enviroaire Technical Data Width
35 in
Gardner Denver Enviroaire Series
A Superior ChoiceThe EnviroAire's unique water-injected, variable speed design achieves lower speeds combined with lower operating temperatures - resulting in high efficiency and reduced component wear.Water injected into the compression element provides lubrication, sealing and cooling.The superior cooling properties of water allow the compressor to operate at a low temperature providing near isothermal compression, low power consumption and class leading efficiency levels.A reverse osmosis membrane cartridge filters the injection water entering the compressor; as a result the water is always maintained at a high purity level.
Note
If any EnviroAire unit doesn’t perform as stated, we will buy the unit back within the first 12 months after purchase.
Oil Free Construction
The EnviroAire from Gardner Denver™ sets the standards for air purity. These water-injected screw compressors are available in water-cooled and air-cooled versions and are ISO 8573-1 CLASS 0 certified. Offering not only 100% pure oil-free air but also improved energy efficiency, these compressors are made to meet the precise needs of a diverse range of industries.High efficiency IP55 TEFC motor ensures superior performance in the most rugged conditions.Fully packaged and silenced enclosure reduces noise and simplifies installation.Proven variable speed technology reduces energy costs and saves you money.Comprehensive controller ensures safe and reliable operation.Stainless steel separator vessel effectively separates air/water mixture from the compression element.Design eliminates the need for a gearbox, which means no need for oil lubrication and zero chance of contamination.
Peace Of Mind
Where contaminated compressed air can result in expensive product spoilage, you can rest assured that a Gardner Denver™ oil-less compressor will eliminate oil-carryover in the compressed air supply. In addition, the removal of oil from the compression process enables compressed air users to operate with maximum environmental efficiency.
Reduced Wear And Tear
Superior flexibility comes standard with the EnviroAireWith a wide capacity range, the EnviroAire features the market's quickest and widest response to air demand changes.Your Benefits During Varying Air DemandReduced wear and tear on inlet and discharge valve components.No shock bearing loads for the air-end.Minimized pulsating load (full load pressure/off load pressure) for all pressurized components within compressor package (hoses etc.).

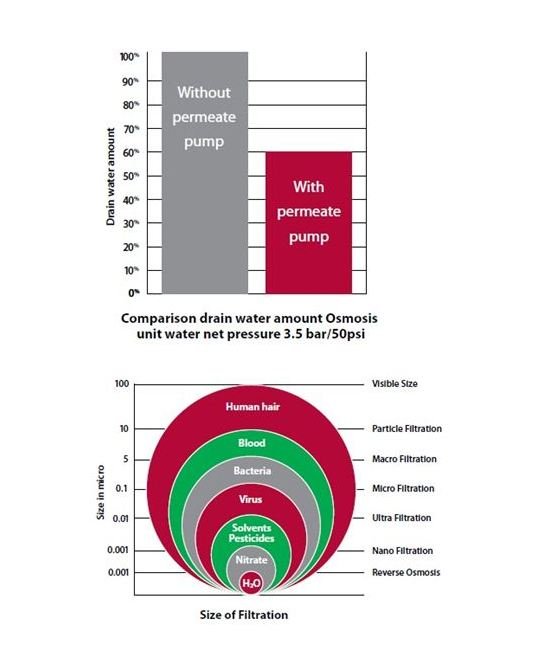

Robust Design High Efficiency Water Purification System
Reverse Osmosis (RO) membrane filtration system provides high quality water and reduces water requirements and operation costsEnsures reliable and trouble free operation.Injection water is drained to low level point by opening water drain valve and refilled with purified water from the tank.Connects to potable water supply with pressure between 32 & 87 psig.Water consumption is 4 - 10 gallons per day from potable water inlet supply.
Specifications Class
0 | 1 | 2 | 3 | 4
Specifications Compression Elements
1
